Enter up to 60 breakpoints via SIPROM T or the remote operation.
• Set the linearization table (60 breakpoints) (Page 98)
Enter the desired number of breakpoints. You can freely position x and y values on the
linearization curve.
;;
<
<
<
<
;;

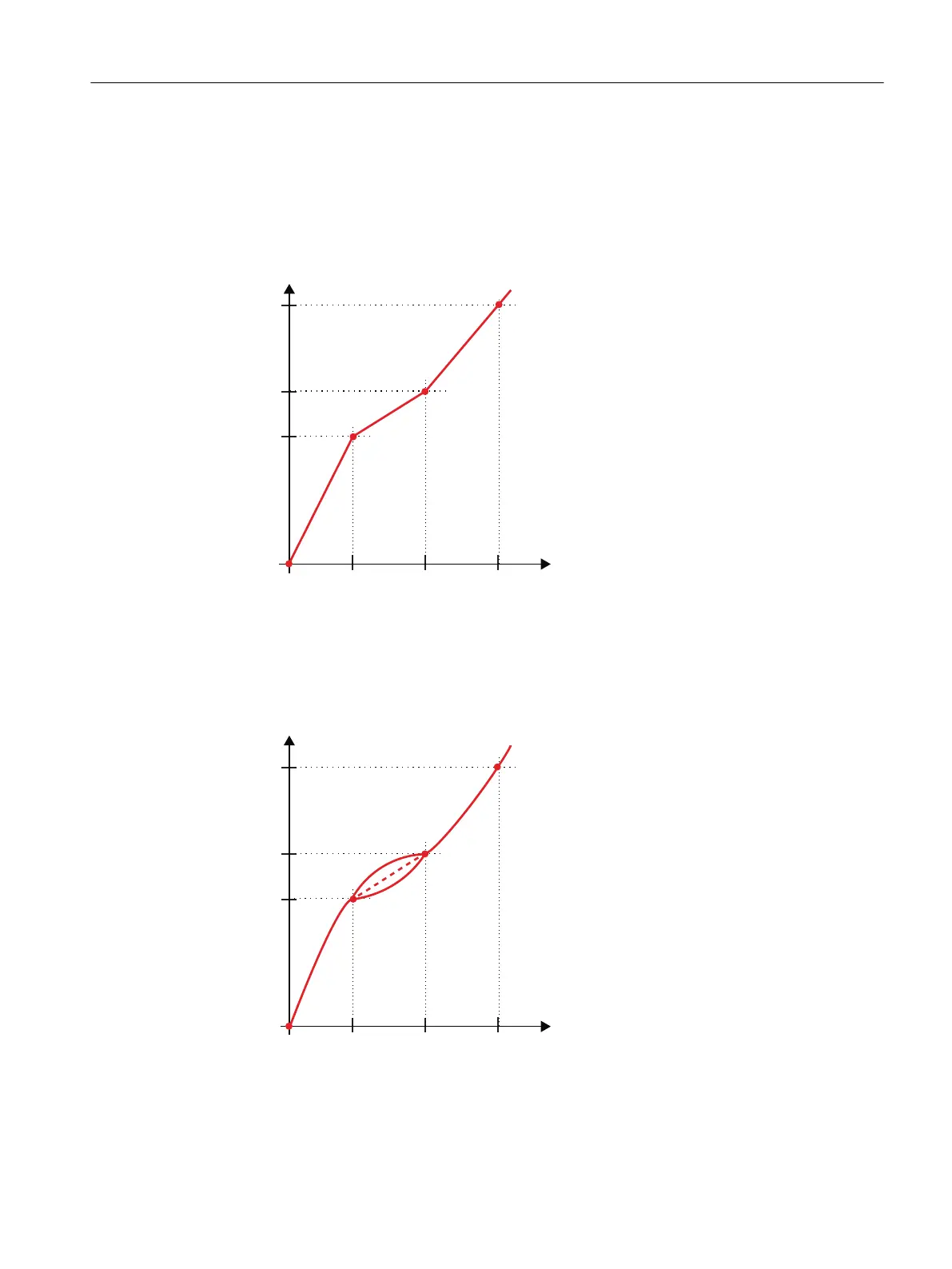

Figure 8-1 Linearization table
• Set the spline curve (40 breakpoints) (Page 98)
Enter the minimum and maximum X-value. The x values are distributed evenly on the x axis
according to the desired number of breakpoints. You can freely assign the y values.
;
<
<
<
<
;;;
Figure 8-2 Spline curve
Parameter assignment
8.4 Assigning parameters using remote operation
SITRANS TS100/TS200/TS300/TS500/TSinsert/TSthermowell
Operating Instructions, 08/2020, A5E47810090-AA 97
