IP Tunnel
IP Tunneling is typically used as a means to establish a path between two independent networks.
In this section, you can configure connections of IPv6 networks across the IPv4 internet or IPv4 in IPv6.
IPv6inIPv4
On this page, you can configure a tunnel for IPv6inIPv4.

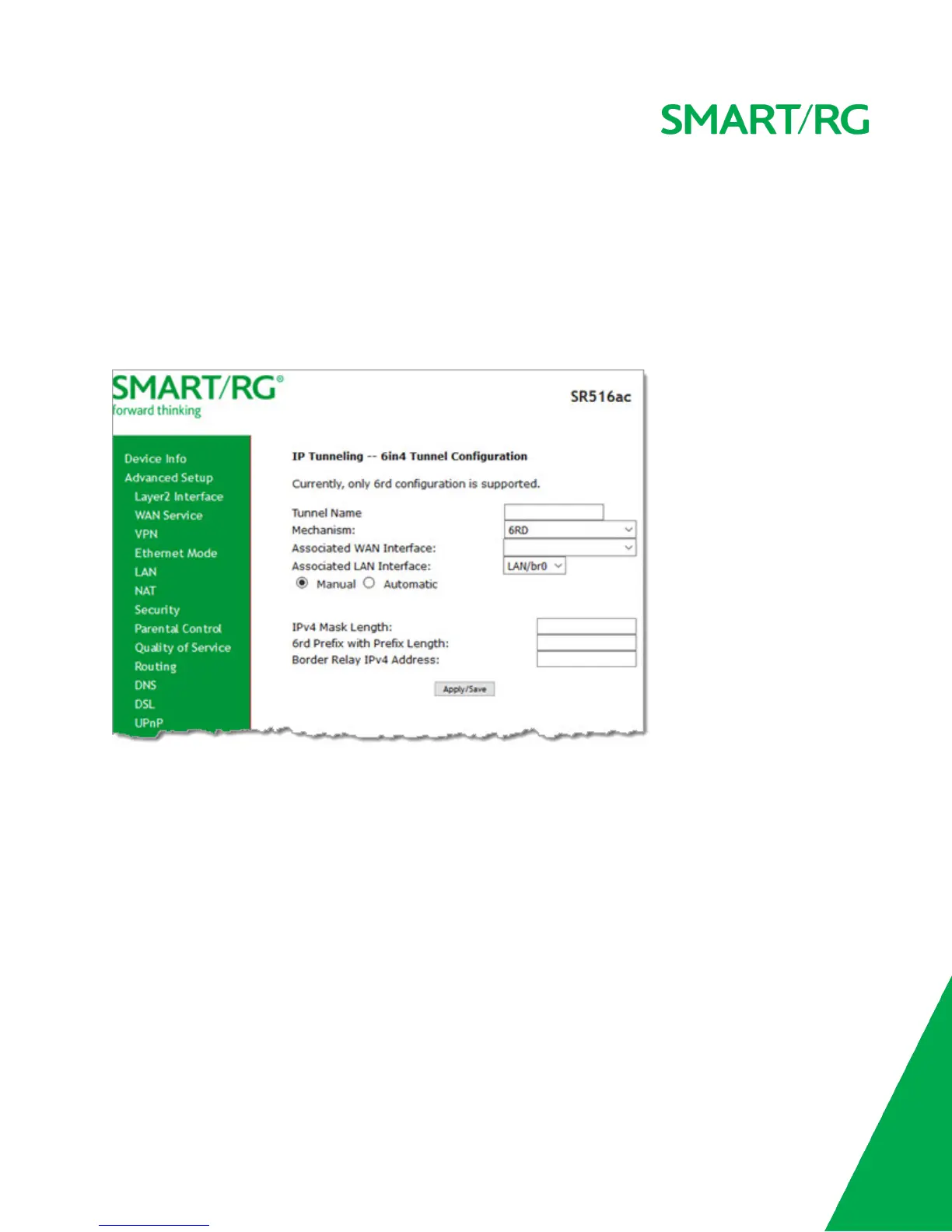

1. In the left navigation bar, click Advanced Setup > IP Tunnel and then click Add. The following page appears.
2. Enter a Tunnel Name. In the Mechanism field, the only option is 6RD.
3. Select the WAN and LAN interfaces associated with the tunnel you wish to establish.
4. Do one of the following:
l To configure the LAN interface settings manually, enter values in the fields located below the Manual button:
l IPv4 Mask Length: Options are 0 - 32.
l 6rd Prefix with Prefix Length: Prefix/length, such as: 2002::/64.
l Border Relay IPv4 Address: IP address for the IPv4 relay server.
To configure these settings automatically, click Automatic.
5. Click Apply/Save to commit your changes.
IPv4inIPv6
On this page, you can configure a tunnel for IPv4inIPv6.
