Solare Datensysteme Solar-Log - Fig.: Example - UMG 104 Utility Meter Connection Diagram for Voltage Measurements in Low-Voltage Power Grids

429
Janitza UMG 104 / UMG 604 / UMG 604-PRO (Utility Meter)
ConnectingtheUtilityMetertothepowergrid

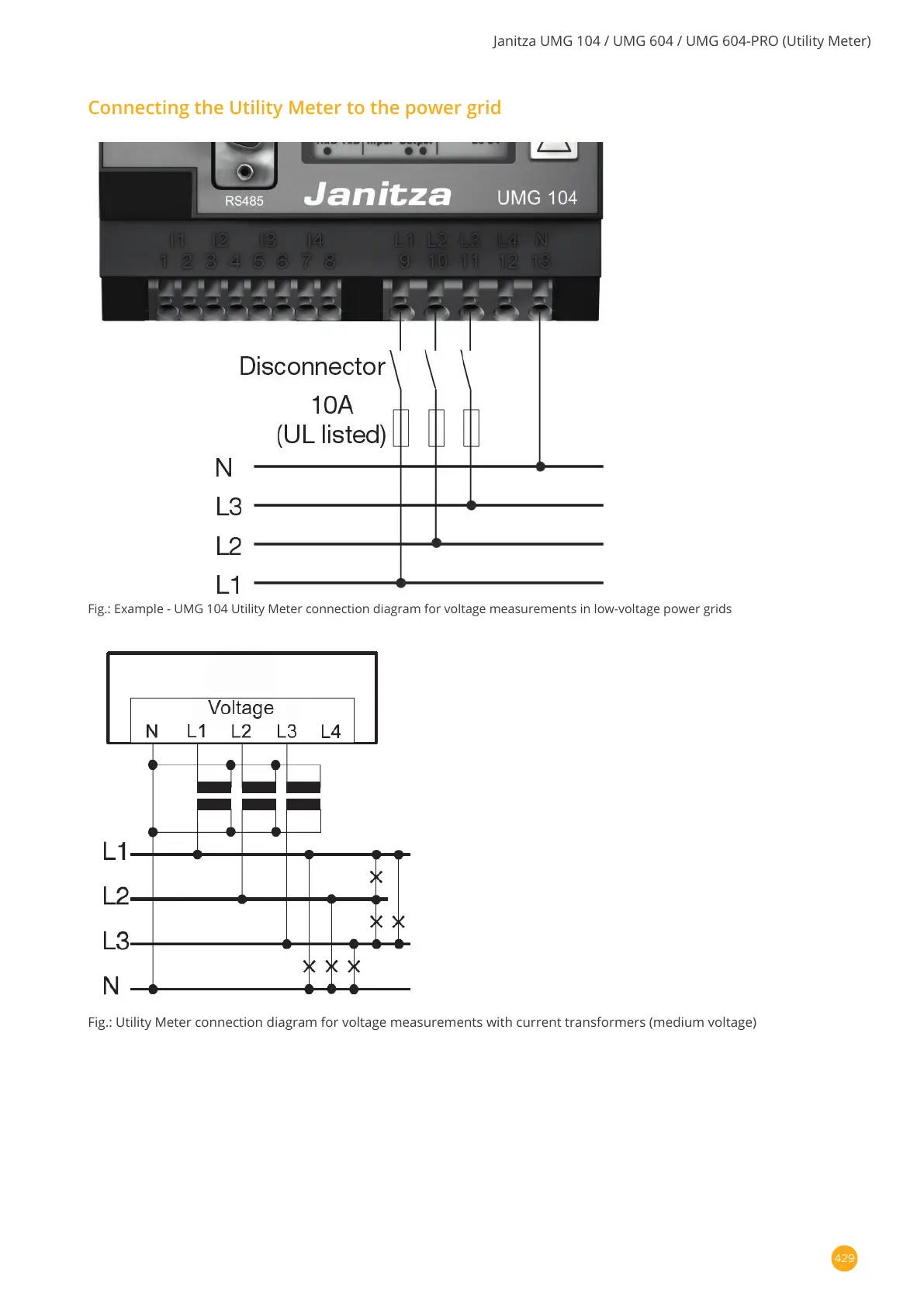

Fig.: Example - UMG 104 Utility Meter connection diagram for voltage measurements in low-voltage power grids
Fig.: Utility Meter connection diagram for voltage measurements with current transformers (medium voltage)
