8.1 Larsen&Toubro(WDM313CDNC)
Selections available under L&T
Overview
•
The communication address has to be assigned.
•
2-pin wiring.
•
Installation steps:
• Switch off the meter and the Solar-Log™.
• Connect the meter to the Solar-Log™.
Connect the meter to the Solar-Log™.
The wiring is done using a
•
self-made cable connection with a terminal block connector.

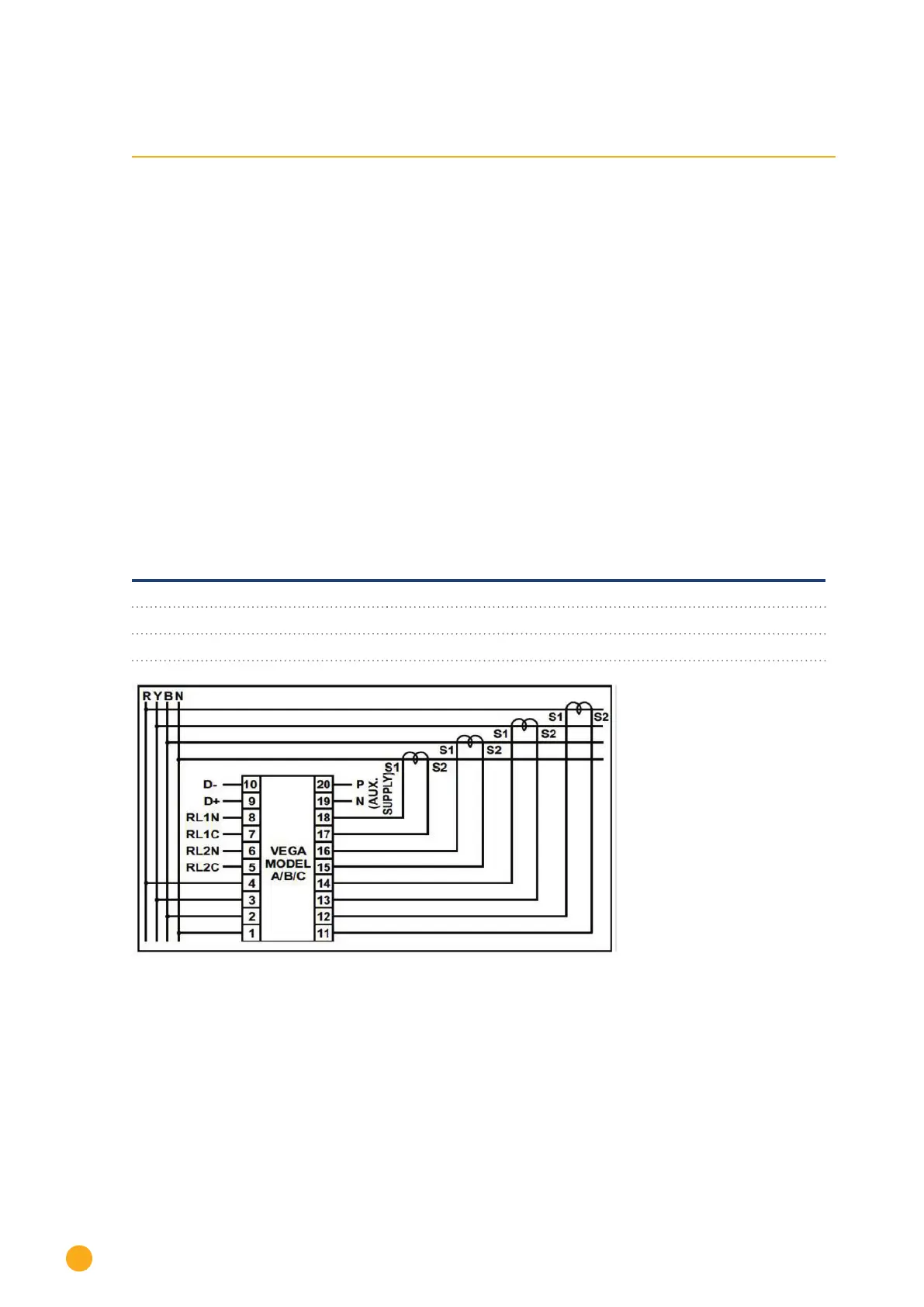

Cable connection via RS485:
Solar-Log™ RS485 terminal block Solar-Log 50 L&T WDM313CDNC
Pin assignment Pin assignment
1 1 or 5 9 D+
4 4 or 6 10 D-
Fig.: Pin assignment
