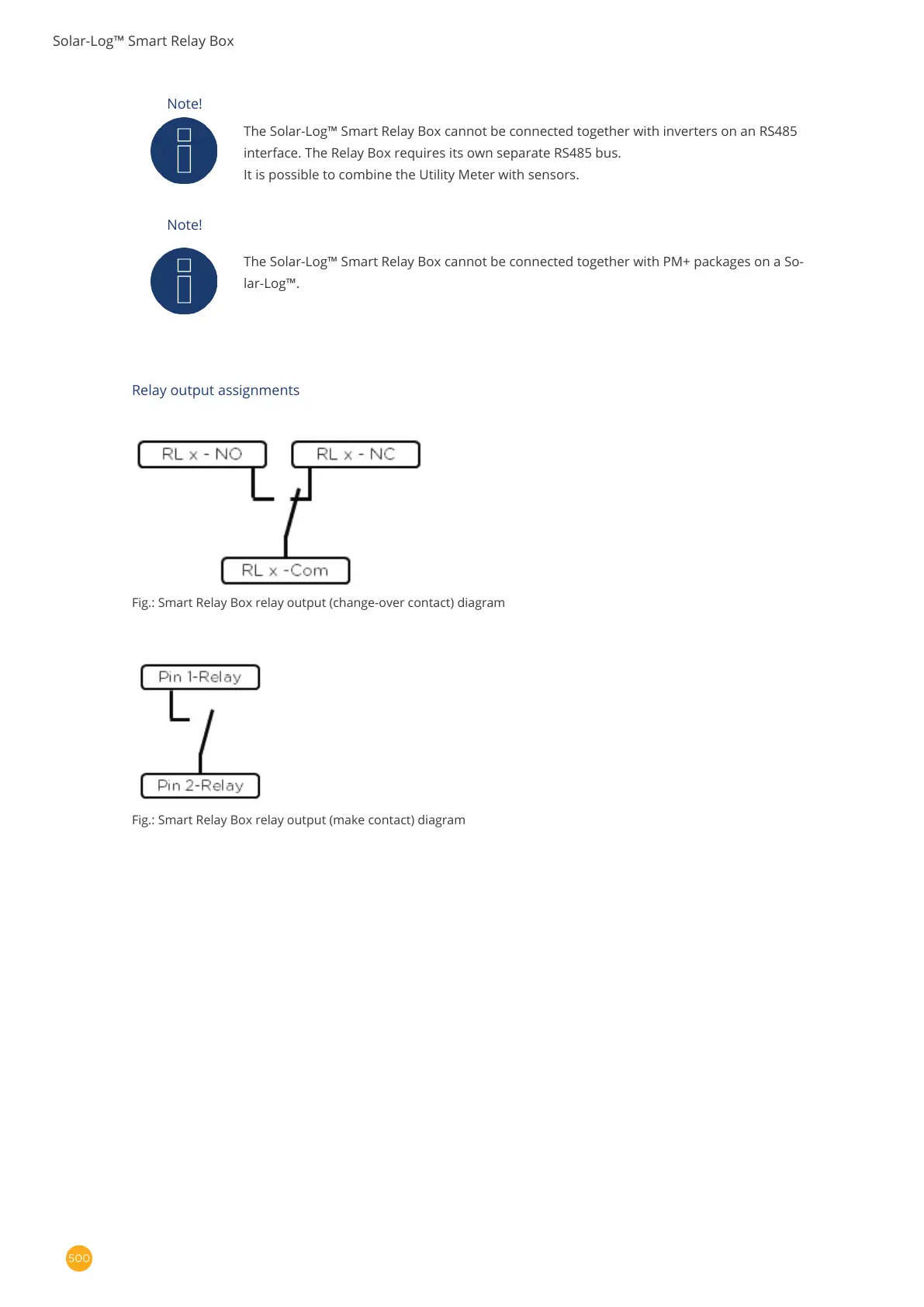

Solar-Log™ Smart Relay Box
Note!
The Solar-Log™ Smart Relay Box cannot be connected together with inverters on an RS485
interface. The Relay Box requires its own separate RS485 bus.
It is possible to combine the Utility Meter with sensors.
Note!
The Solar-Log™ Smart Relay Box cannot be connected together with PM+ packages on a So-
lar-Log™.
Relay output assignments
Fig.: Smart Relay Box relay output (change-over contact) diagram
Fig.: Smart Relay Box relay output (make contact) diagram
