Sensor Box Professional

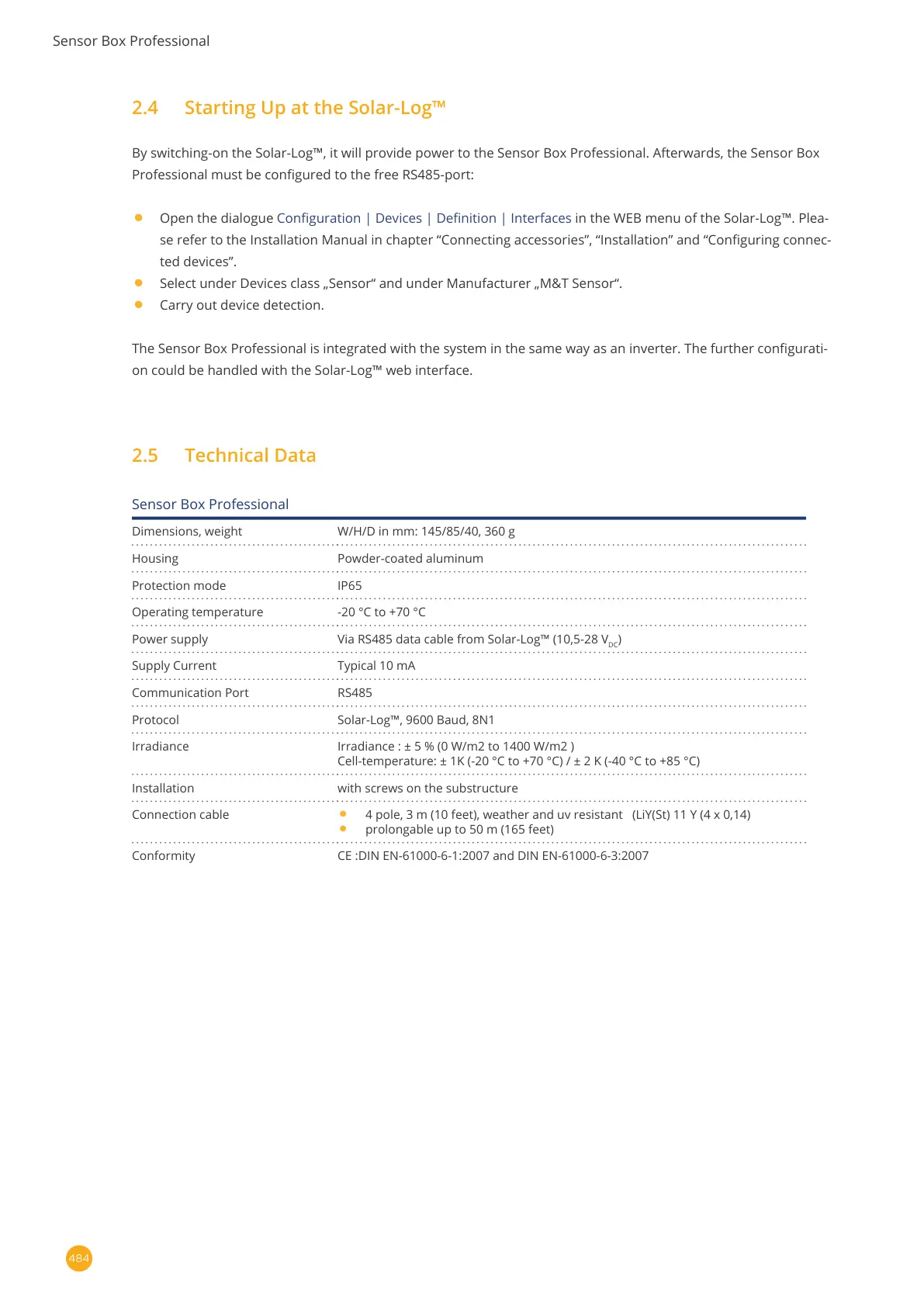

2.4 StartingUpattheSolar-Log™
By switching-on the Solar-Log™, it will provide power to the Sensor Box Professional. Afterwards, the Sensor Box
Professional must be configured to the free RS485-port:
•
Open the dialogue Configuration | Devices | Definition | Interfaces in the WEB menu of the Solar-Log™. Plea-
se refer to the Installation Manual in chapter “Connecting accessories”, “Installation” and “Configuring connec-
ted devices”.
•
Select under Devices class „Sensor“ and under Manufacturer „M&T Sensor“.
•
Carry out device detection.
The Sensor Box Professional is integrated with the system in the same way as an inverter. The further configurati-
on could be handled with the Solar-Log™ web interface.
2.5 TechnicalData
Sensor Box Professional
Dimensions, weight W/H/D in mm: 145/85/40, 360 g
Housing Powder-coated aluminum
Protection mode IP65
Operating temperature -20 °C to +70 °C
Power supply Via RS485 data cable from Solar-Log™ (10,5-28 V
DC
)
Supply Current Typical 10 mA
Communication Port RS485
Protocol Solar-Log™, 9600 Baud, 8N1
Irradiance Irradiance : ± 5 % (0 W/m2 to 1400 W/m2 )
Cell-temperature: ± 1K (-20 °C to +70 °C) / ± 2 K (-40 °C to +85 °C)
Installation with screws on the substructure
Connection cable
•
4 pole, 3 m (10 feet), weather and uv resistant (LiY(St) 11 Y (4 x 0,14)
•
prolongable up to 50 m (165 feet)
Conformity CE :DIN EN-61000-6-1:2007 and DIN EN-61000-6-3:2007
