Chapter 8 - Maintenance
8.7.2.1.
CS8C
FOR
TX
OR
RS
ROBOTS
•
Set aside the
ARPS
power supp
ly (see chapter
8.6.2
, pa
ge
177
).
•

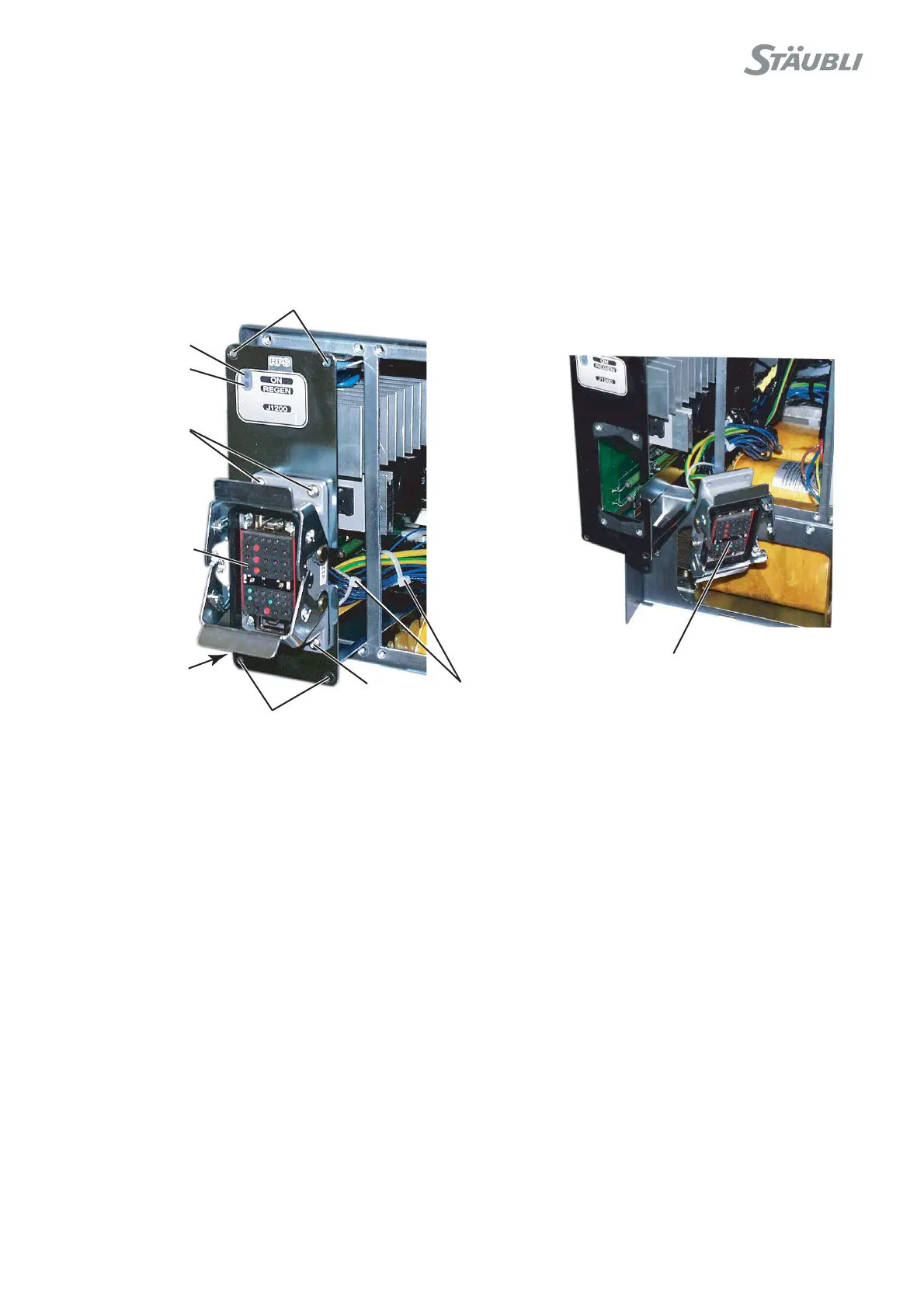

Remove the
4
screws
(1)
holding the
RPS325
power supply.
•
Remove the
4
screws
(2)
holding the
J1200
(5)
conne
ctor.
•
Release the connector
(5)
and the cable clamps
(6)
.
Figure
8.33
6
1
2
1
3
4
5
5
2
2
194
196
