4.5. FIXING THE WMS

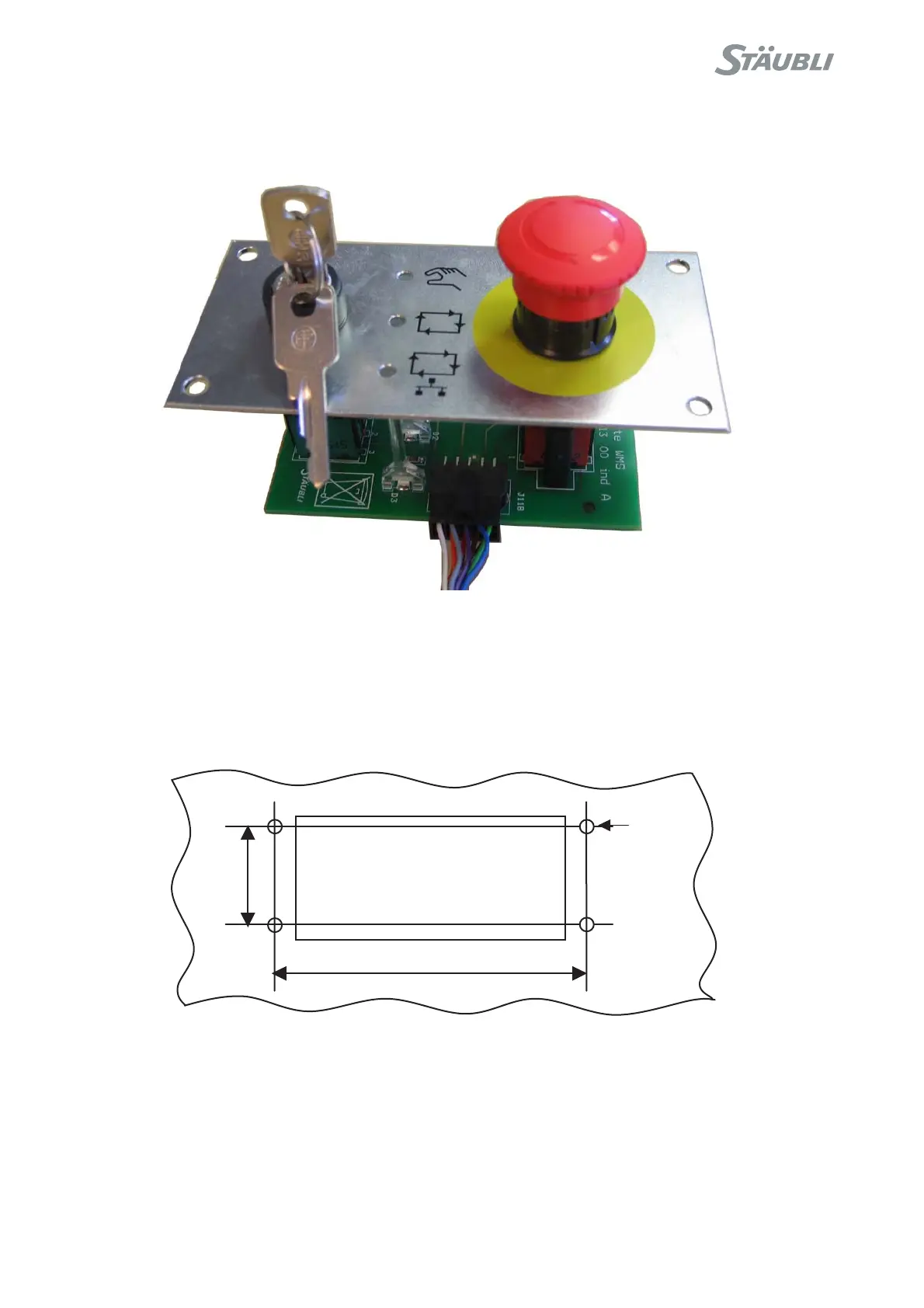

Figure 4.6
The WMS (Working Mode Selection) front panel must be installed permanently outside of the cell to be able to
change the modes of operation from a safe location, outside of the cell.
To comply with the UL requirements, it cannot be provided or modified by the user / integrator.
The WMS is designed to be installed on a plate with following dimensions:
Figure 4.7
104 mm
43 mm
4 * M4
52 x 93 mm hole
