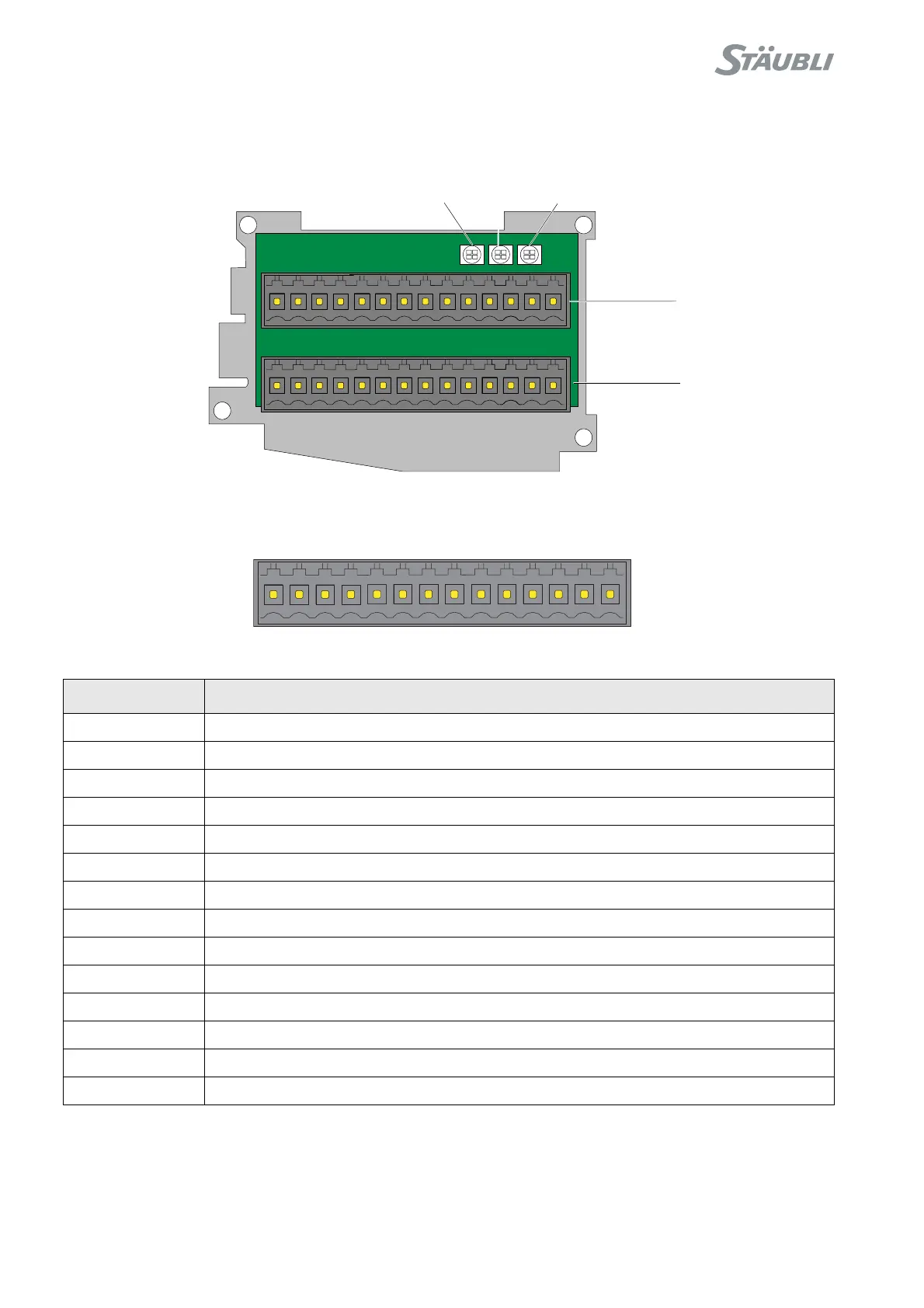

5.3.1.8. ARMIO BOARD
X11
PIN CORRESPONDENCE
1 cAout
0
2 cAout 1
3cDout0
4cDout1
5cDout2
6cDout3
7cDout4
8cDout5
9cDout6
10 cDout7
11 +24 VDC
12 0 V
13 cAout2
14 cAout3
LED1LED2LED3
X11
X21
1234567891011121314
