Chapter 5 - Integration
5.3.1.1.
INSTALLATION OF
CAN
BOARD IN COMPUTER
•
Refer to
8.9.2
to re
move and open
CS8C
computer module.
•
Plug the cable at
tached to the
CAN
b
oard to
CPU
board
.

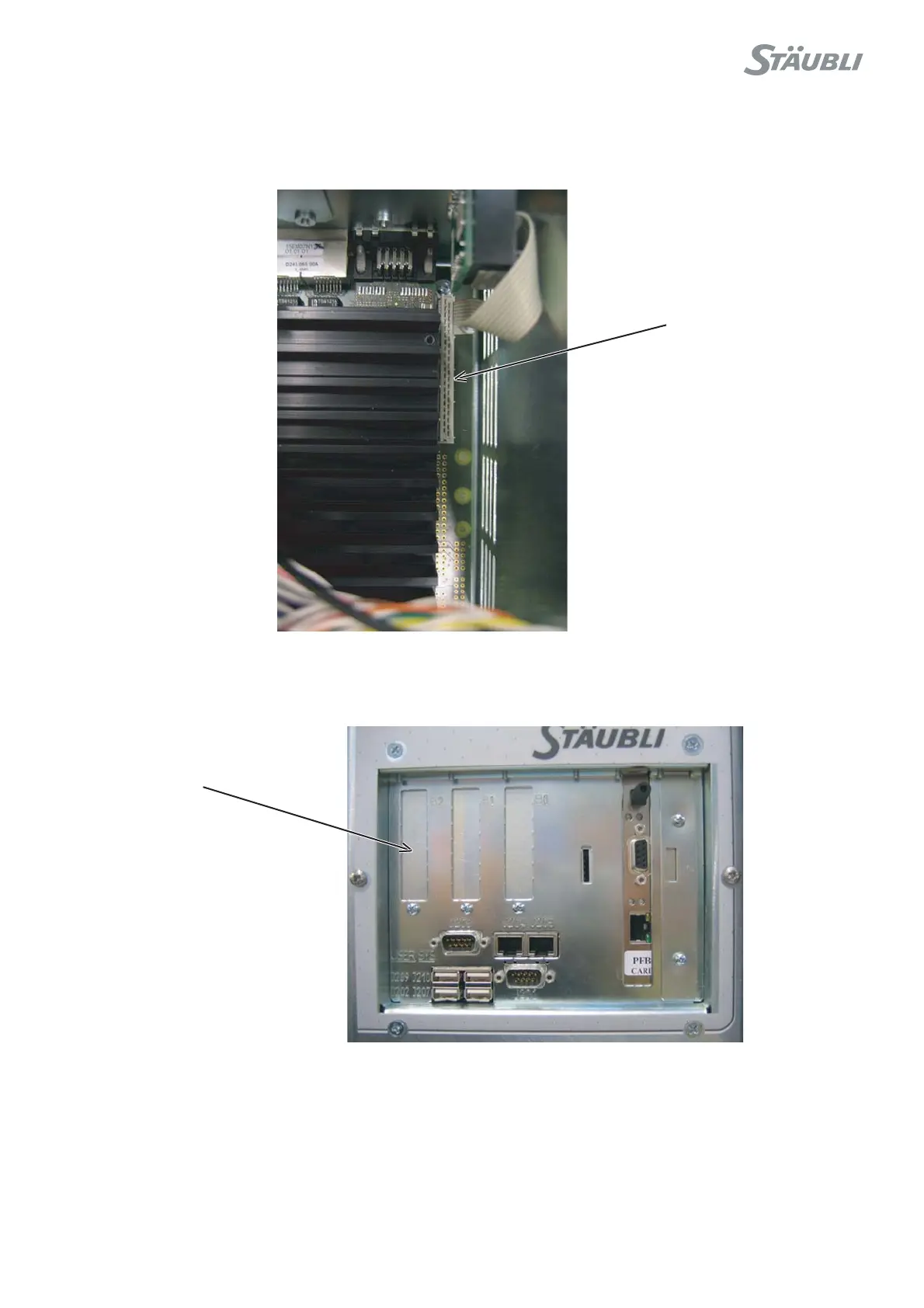

Figure
5.11
•
Install the
CAN
board on
B1
location
of front pla
te using th
e
2
screws provided with the board.
Figure
5.12
•
Replace the cover
and reinstall th
e
CS8C
computer
module.
70
72
