Staubli CS8C User Manual

CS8C © Stäubli 2009 – D28070504A
41 / 248
Chapter 4 - Installation
4.3. UNPACKING AND HANDLING
4.3.1. PACKAGING FOR THE CS8C CONTROLLER
4.3.2. HANDLING OF PACKING

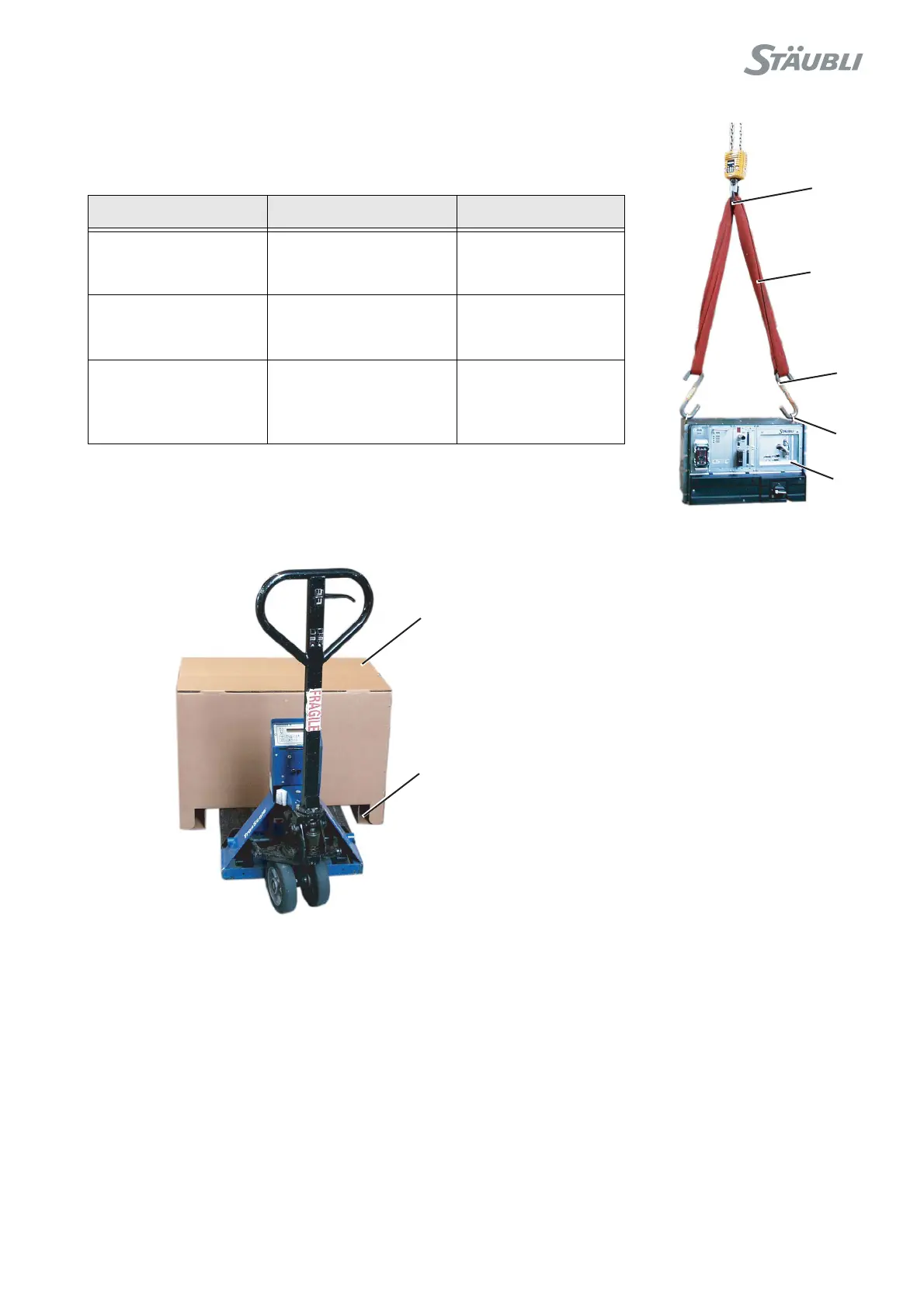

By pallet truck under base (2).
• Fit a sling (4) (fabric sling 200kg/442lb) using hooks (6) between the lifting rings (5) on the controller (3) and
the hook on the lifting tackle (7). The hooks (6) must also stand up to 200 kg / 442 lb.
• Slowly lift the controller using the lifting tackle and set it down beside the base (2).
• The lifting rings (5) on the controller are removable.
• Take out the box containing the MCP and the upper wedges.
• Take out the documentation and side wedges.
• Take out the box containing the connecting cable.
CS8C FOR TX, RS CS8C FOR RX160
Standard packaging
L x H x D
Gross weight
900x640x570mm
354x252x224in
70 kg / 155 lb
900 x 815 x 570 mm
354 x 321 x 224 in
80 kg / 177 lb
International packaging
L x H x D
Gross weight
990x755x610mm
390x297x240in
84 kg / 185 lb
990 x 930 x 610 mm
390 x 366 x 240 in
94 kg / 208 lb
Net weight With transformer:
50 kg / 110 lb
Without transformer:
31 kg / 68lb
60 kg / 132 lb
4.3.3. UNPACKING AND INSTALLING
THE CONTROLLER
• Move the packing case as near as possible to the
installation site.
• Open the case (1).
7
4
6
5
3
1
2
