CS8C
© Stäubli 2009 –
D28070504A
177 / 248
Chapter 8 - Maintenance

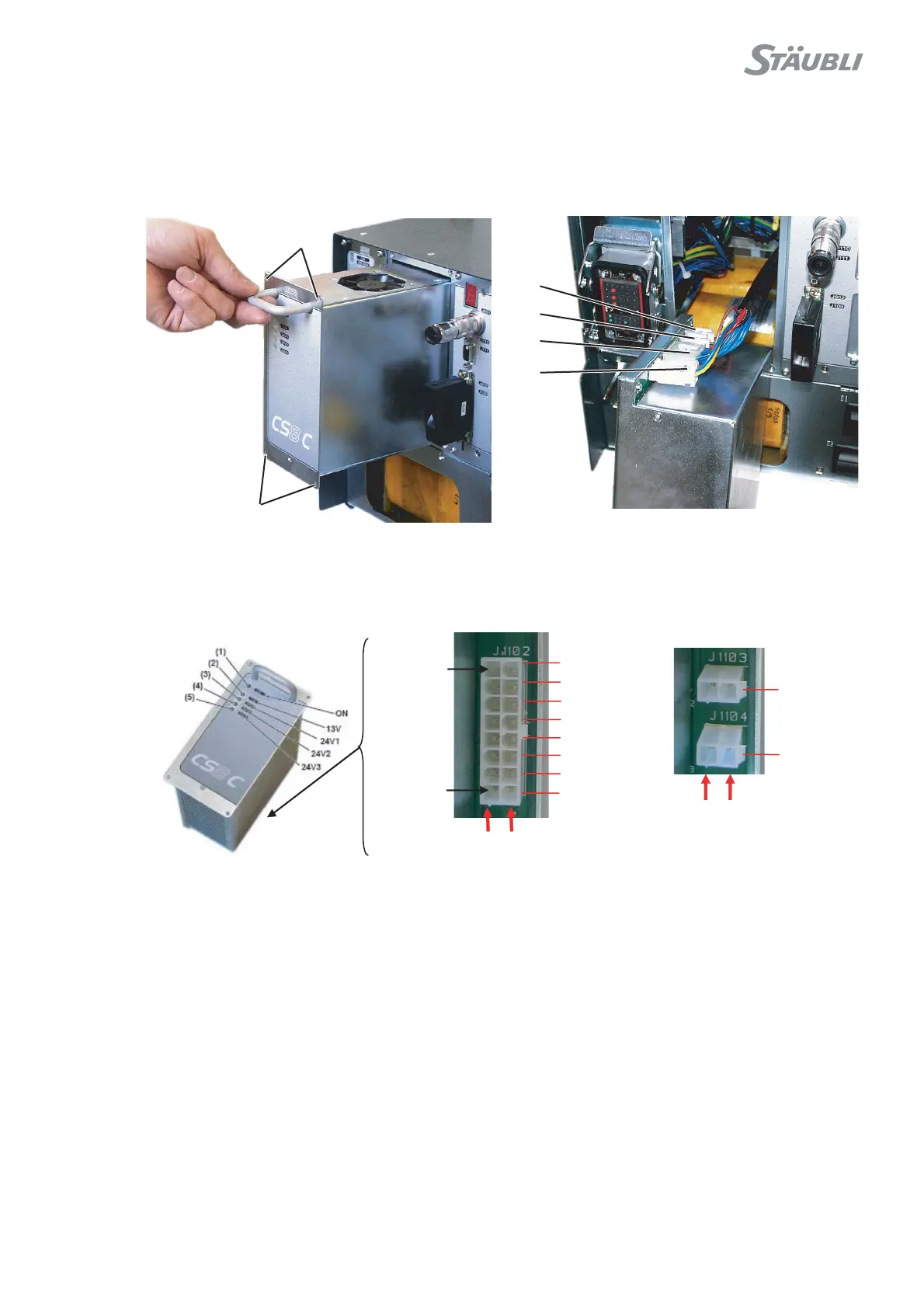

8.6.2.
ACCESS
•
Turn off main switch
S1
to position
0
.
•
Remove the
4
screws
(1)
and pull the
ARPS
.
Figure
8.12
8.6.3.
T
EST POINTS
Figure
8.13
1
1
2
3
4
5
24V2
24V1
24V1
13V
0 V DC
+
0 V DC
+
24V3
24V3
ALIM-OK
BRK-ON
BRK-REL-EN
SECTEUR-OK
Pin
8
Pin
1
176
178
