Chapter 5 - Integration
X21
Characteristics:
• Digital inputs:
• Nominal voltage: 24 VDC (minimum 20 VDC, maximum 28 VDC)
• Voltage for logical 0: 0 to 3 VDC
Voltage for logical 1: 11 to 28 VDC
• Input current: 6 mA maximum
• Response time (hardware and software): 6 ms
• Digital ouputs:
• Nominal voltage: 24 VDC (minimum 20 VDC, maximum 28 VDC)
• Max. current per output: 0.5 A
• Max. current for all outputs: 2 A
• Response time (hardware and software): 6 ms maximum
• Analog inputs:
• Input voltage: ± 10 V
• Resolution: 78 mV
• Accuracy: 5 %
• Response time: 6 ms

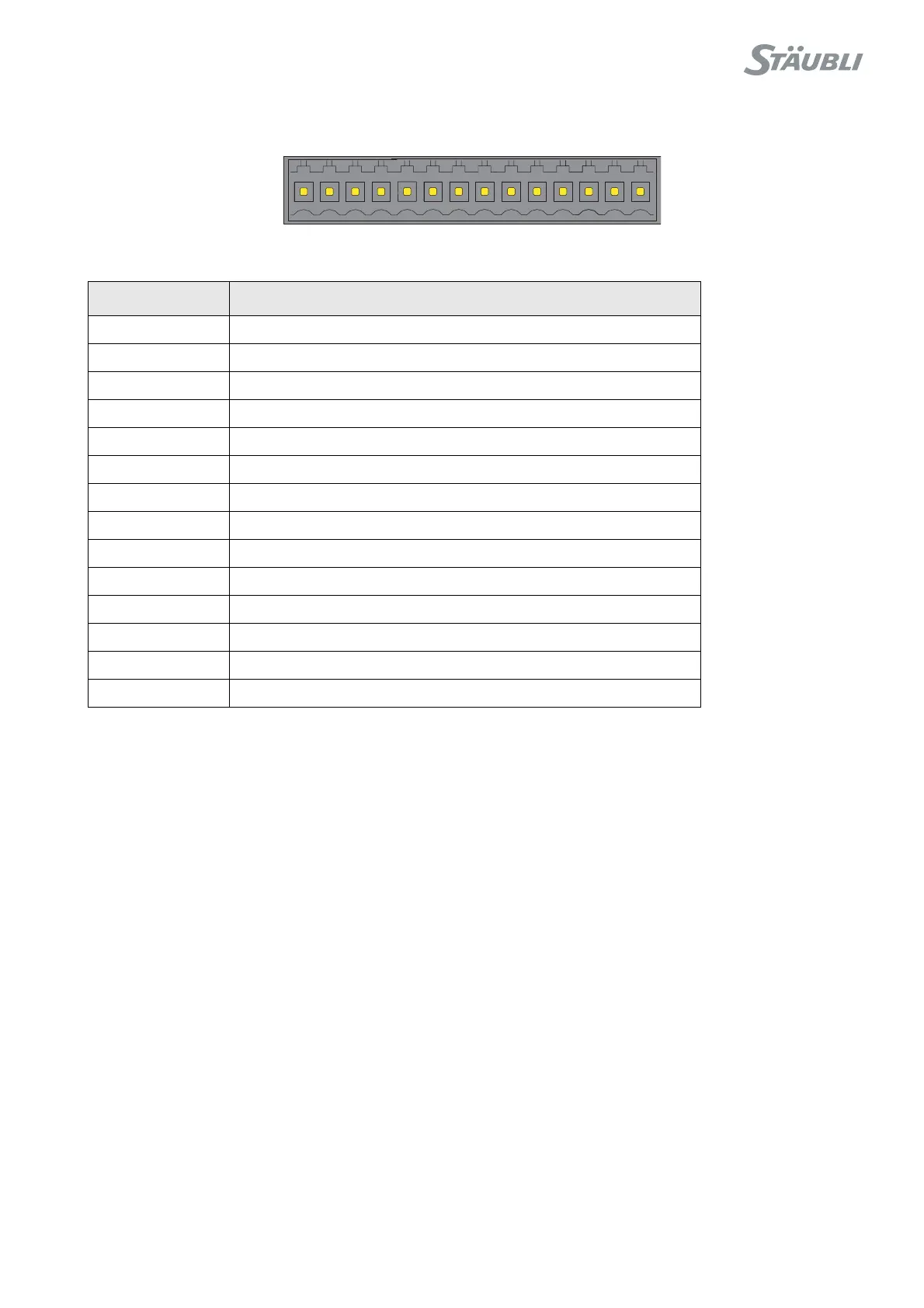

PIN CORRESPONDENCE
14 cDin0
13 cDin1
12 cDin2
11 cDin3
10 cDin4
9 cDin5
8 cDin6
7 cDin7
6cAin3
5PE analog ground
4cAin2
3cAin1
2PE analog ground
1cAin0
1234567891011121314
