CS8C © Stäubli 2009 – D28070504A
47 / 248
Chapter 4 - Installation

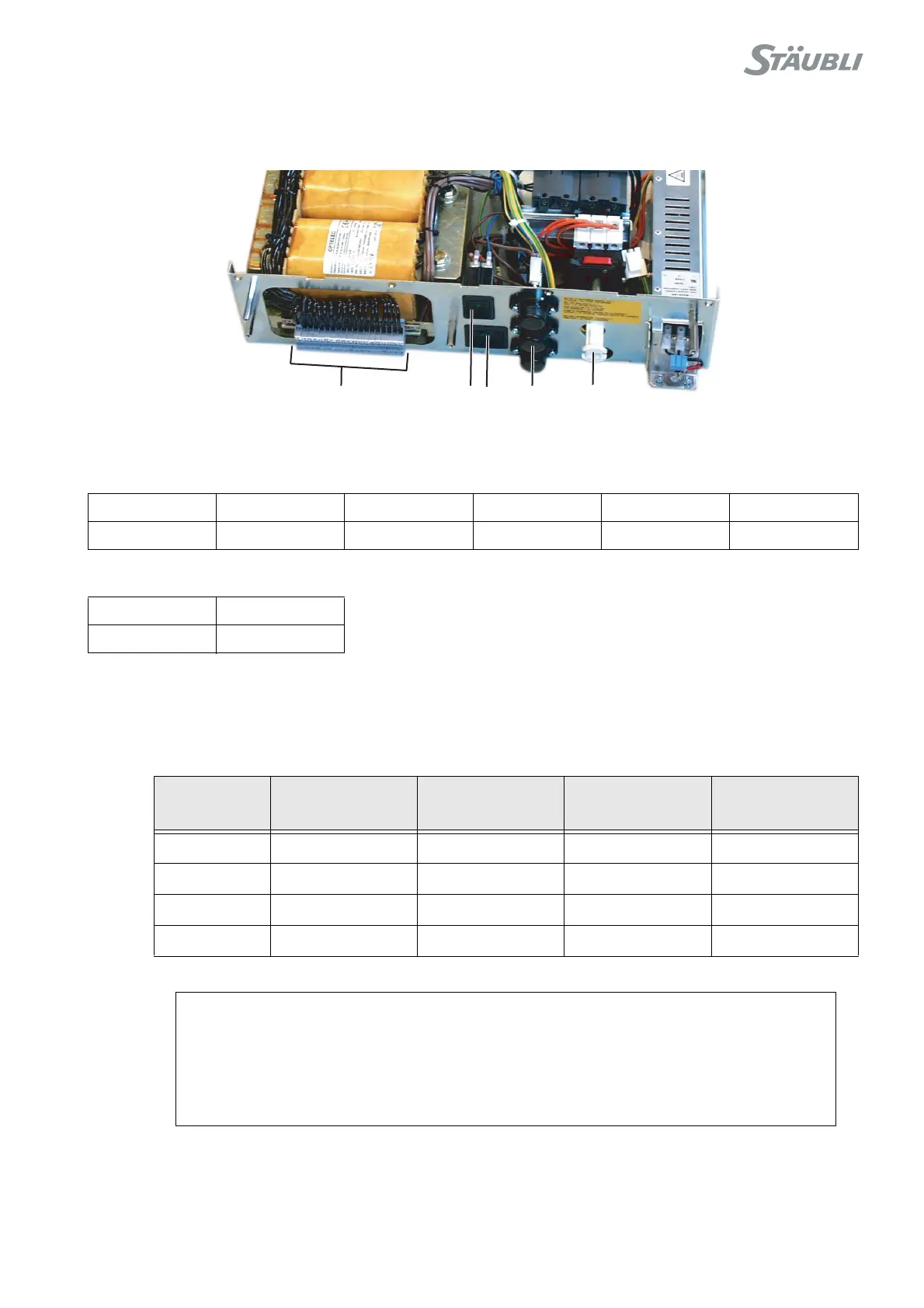

If voltage configuration of the controller is not the good one, it can be changed on the terminal trip (1) of the
transformer:
Figure 4.10
Three-phase voltage configuration:
Single-phase voltage configuration:
Note:
If voltage is changed, fuses F1, F2, F3 have to be adapted to the voltage
• Fuses are 10 x 38 mm type, 500V for standard controllers.
• For UL type controllers, replace fuses with UL type.
Note:
Am means "slow-acting fuse" according to IEC 269-1.2.
AT means "slow-acting fuse" and AF "quick-acting fuse" according to IEC 127-2.
200 V 208 V 230 V 400 V 440 V 480 V
7F 8F 9F 7E 8E 9E 7D 8D 9D 7C 8C 9C 7B 8B 9B 7A 8A 9A
115V 230V
8G 8D
THREE-PHASE
400-480 V
THREE-PHASE
200-230 V
SINGLE PHASE
230 V
SINGLE PHASE
115 V
TX40 4Am 6Am 10Am 16Am
TX60 - RS 4Am 8Am 10Am 16Am
TX90 6Am 12Am
RX160 8Am 16Am
CAUTION:
• These fuses do not protect the mains power supply line which must be protected
separately.
• Never replace these fuses with fuses of a higher rating or with different
characteristics (see the "replacement parts" section).
1 98 7 6
