AC Power PCBA P/N 0702-001-802
Caution: Make sure proper Electro Static Discharge (ESD) measures are observed when
removing and replacing circuit boards. Failing to properly handle sensitive components can
cause damage to the circuits.
Warning: Make sure the rover is powered off before removing any circuit boards! Failure to
do so may cause serious personal injury and may severely damage the equipment.

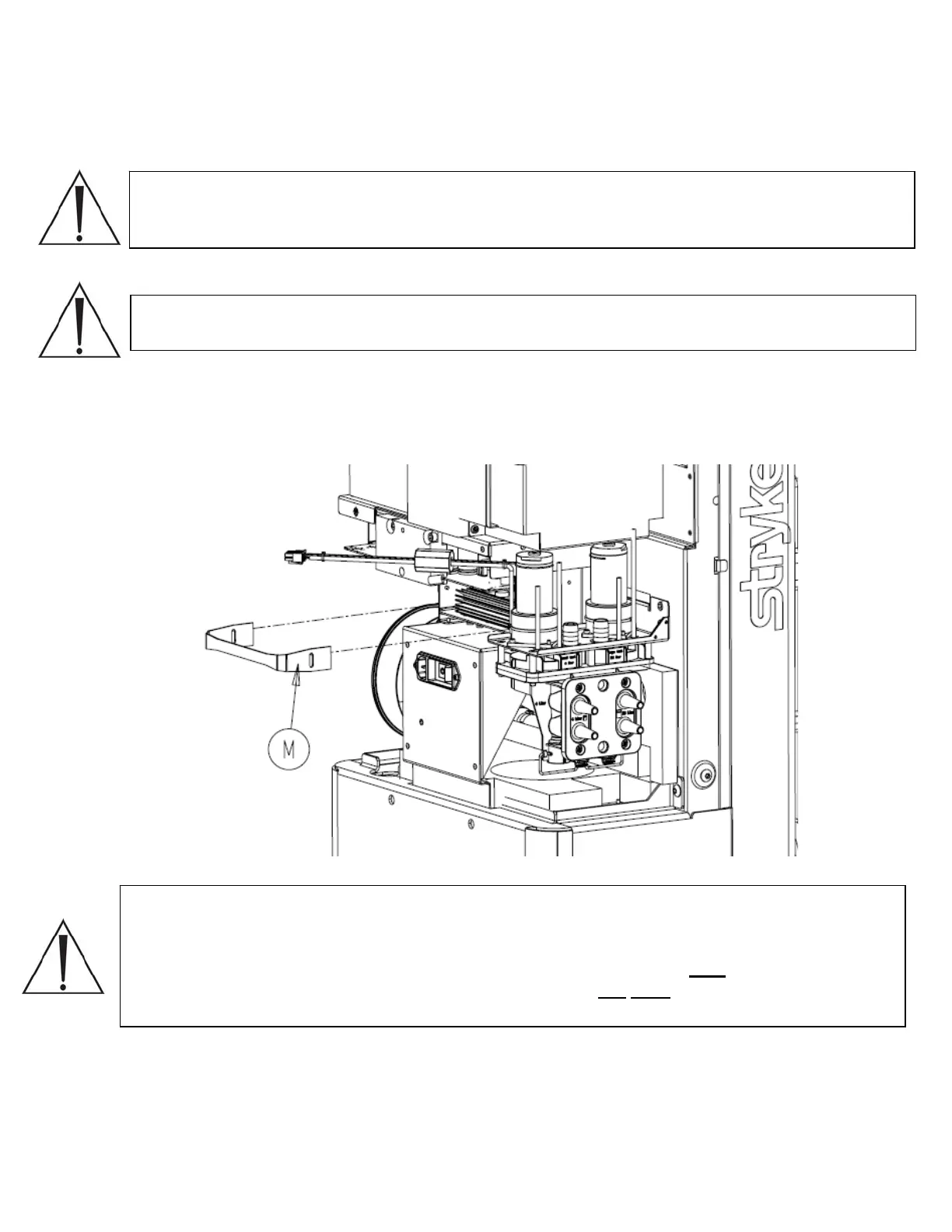

1. Remove the AC power board retainer (P/N 0702-001-804) (M) and set aside.
Caution: The power distribution circuit board and the AC power circuit board interface with
the subsystems of the rover by mating connectors on the board with a series of backplane
connectors on the rover chassis. When removing these components, be sure to grasp the
board at both ends to ensure even distribution of pressure. Ensure ALL
connectors are
lined up correctly before reinserting circuit boards!! DO
NOT force the circuit board into
place when reinstalling.
2-72
