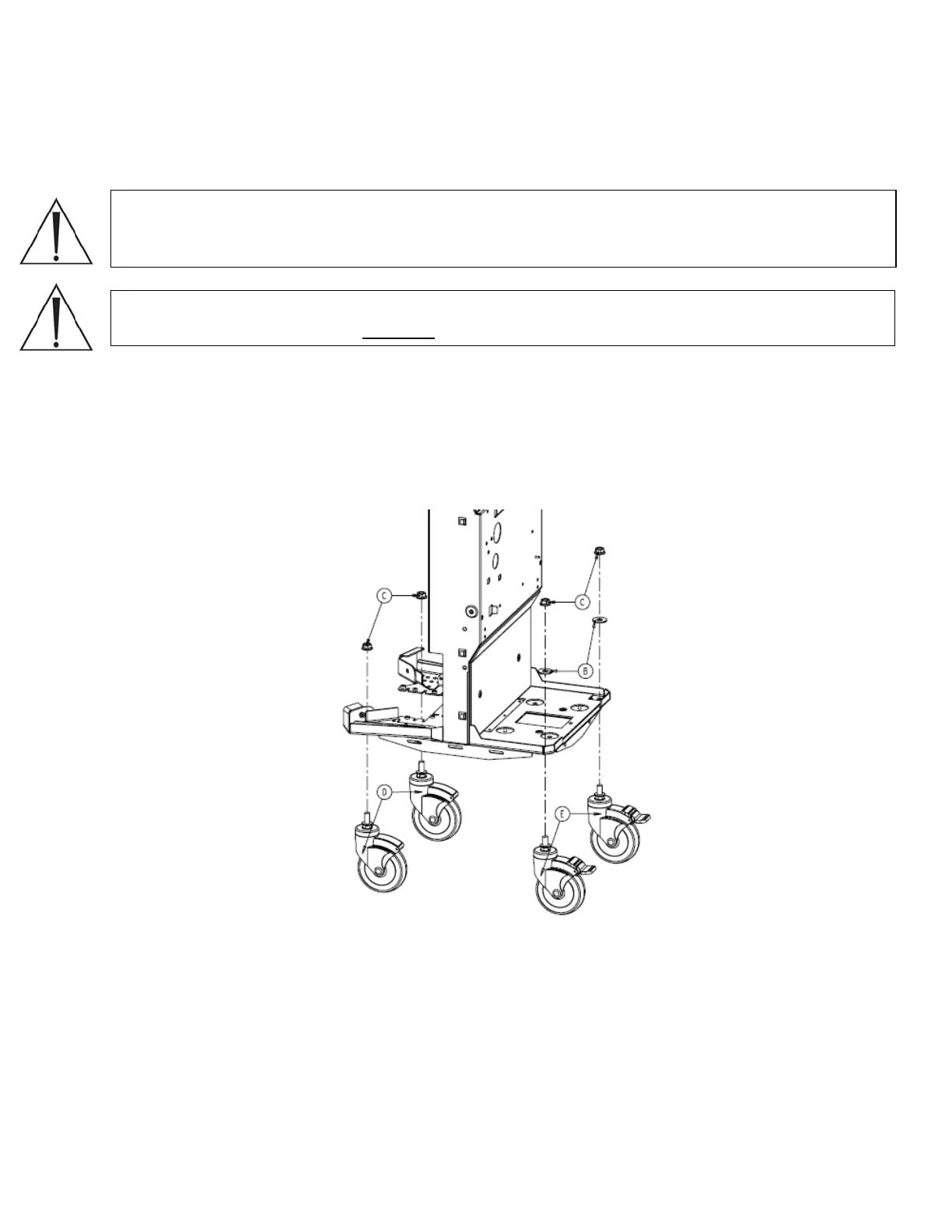

Caster Assembly P/N 0702-001-012; 0702-001-013
Note: When installing the caster make sure you are certain which style needs replacement.
The casters in the front are different from those in the back. Also note that the casters with a
brake require a washer.
Caution: If you are installing two or more casters be sure to replace them one at a time!! To
avoid the risk of bodily injury DO NOT remove more than one caster at a time!
1. Using a ¾” open ended wrench, remove the flange nut (P/N 0015-079-000) (C).
2. If replacing caster assembly with brake (P/N 0702-001-013) (E), remove the ½”
washer (P/N 0011-004-004) (B) and set aside. If caster does not have a brake, proceed
to step 3.
3. Remove either the caster assembly without brake (P/N 0702-001-012) (D) or the
caster assembly with brake (P/N 0702-001-013) (E) and set aside.
