Stryker Neptune 2 - Coupling Block Assembly P;N 0702-001-600

Coupling Block Assembly P/N 0702-001-600
Caution: This procedure begins with the front cover already removed. If the rover
canister(s) contain fluid, you will need to manually dock the unit using the technician
menu before proceeding!

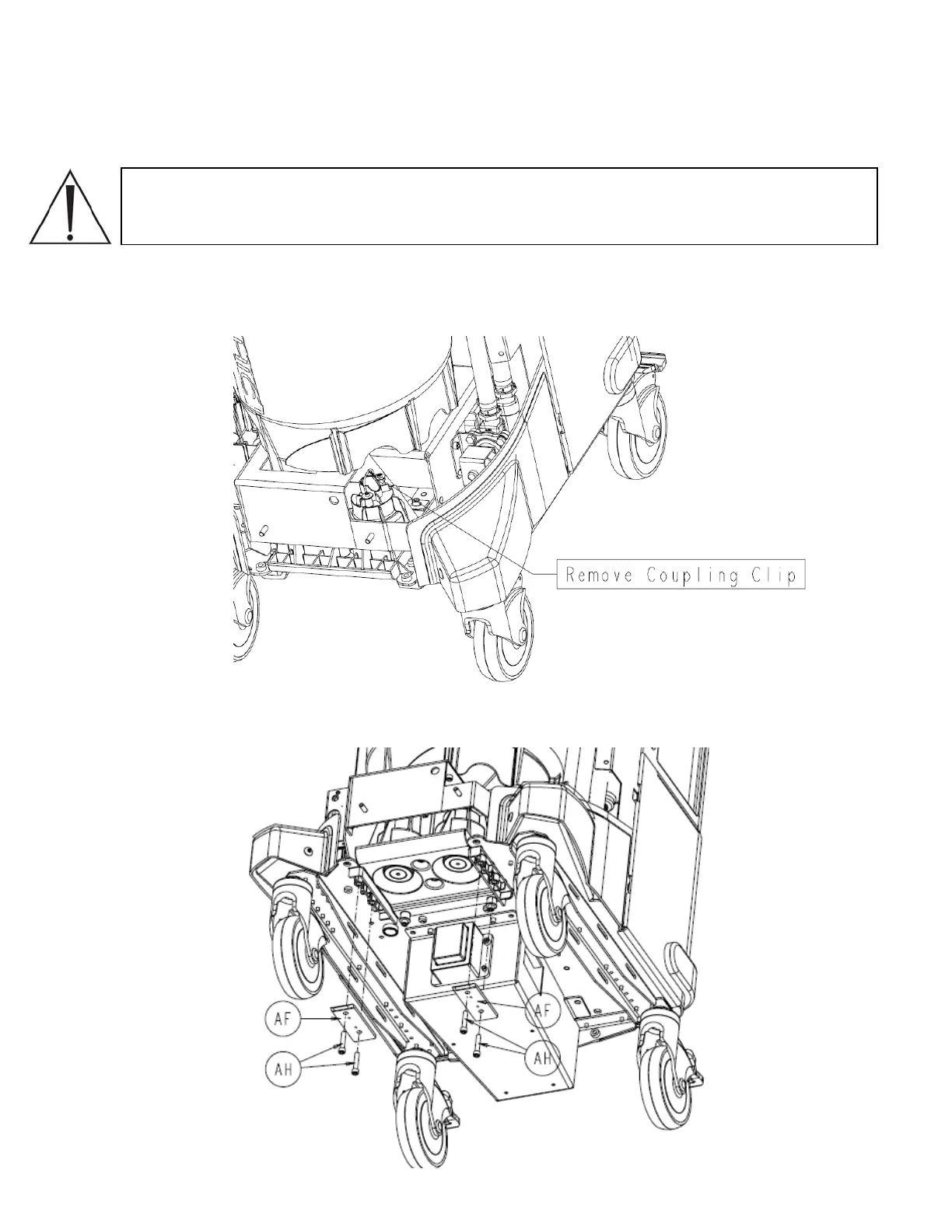

1. Remove the coupling clip (P/N 702-1-204) (C) from the coupling block (P/N 702-1-
600) that holds the diverter inlet water hose assembly (P/N 702-1-341) (B) and
remove the hose from the block.
2. Remove four socket head cap screws (P/N 0004-542-000) (AH) from underside of
coupling block assembly (P/N 702-1-600) (AD) using a 3/16” allen wrench.
2-40
