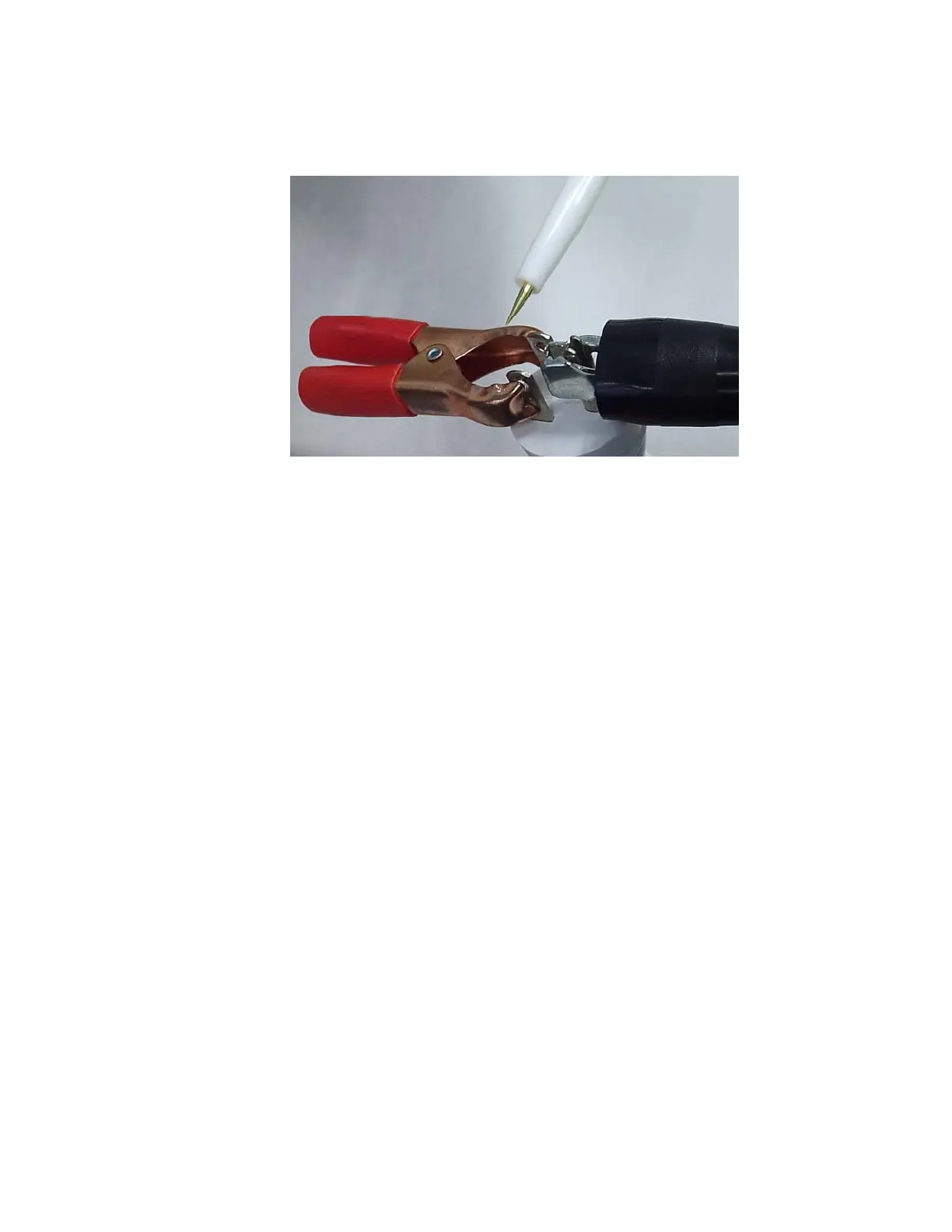

6. Touch the high voltage lead (red, pen-like attachment) to the shorted live and neutral
terminals, ensuring not to touch the ground pin.
7. Press the TEST button. The test is passed when a single short beep is heard. If
pressing the test button yields the same results as in step 3 (continuous beep and
audible alarm) the rover has failed.
Ground (Earth) Resistance Test (Covers Installed)
1. Turn rover power switch off.
2. Plug rover power cord into safety analyzer.
3. Attach the test lead to one of the strike plates or strike plate mounting PEMs.
4. Set the analyzer to normal polarity and neutral open.
5. Measure earth (ground) resistance by placing the analyzer dial to the chassis resistance
position.
6. Resistance must be less than .12 ohms.
