Stryker Neptune 2 Service And Installation Manual

Docker Power Coupler PCBA P/N 0702-014-510

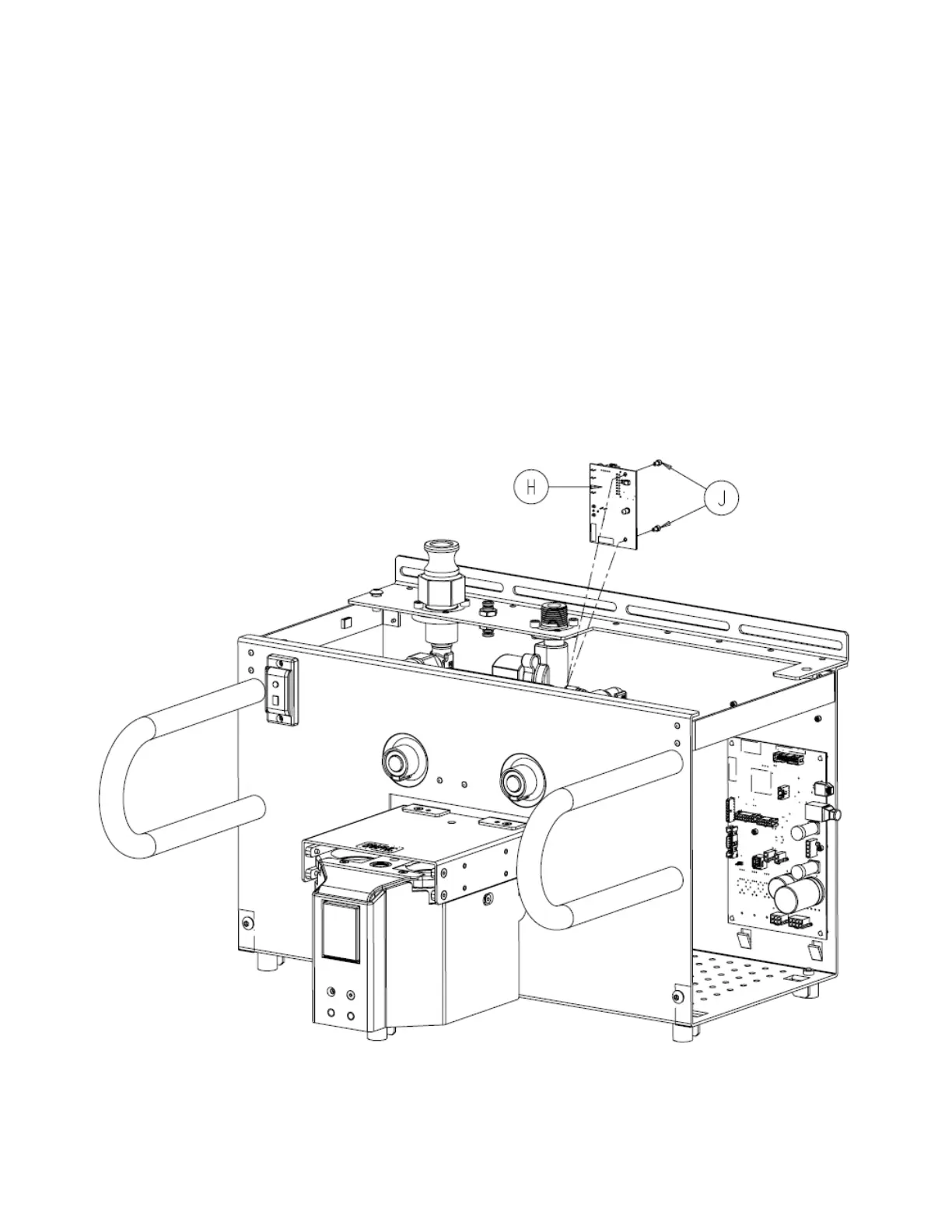

1. Disconnect connector labeled IR board from power coupler wire harness (P/N 0702-
014-021B) at J3 on docker power coupler PCBA (P/N 0702-014-510) (H).
2. Disconnect connector labeled coupling motor wire harness (P/N 0702-014-021A) at
J1 on docker power coupler PCBA (P/N 0702-014-510) (H).
3. Using a 7/64” allen wrench, remove both socket head cap screws (P/N 004-022-000)
(J).
4. Remove docker power coupler PCBA (P/N 0702-014-510) (H) and set aside.
4-20
