Vacuum Pump Assembly P/N 0702-001-100

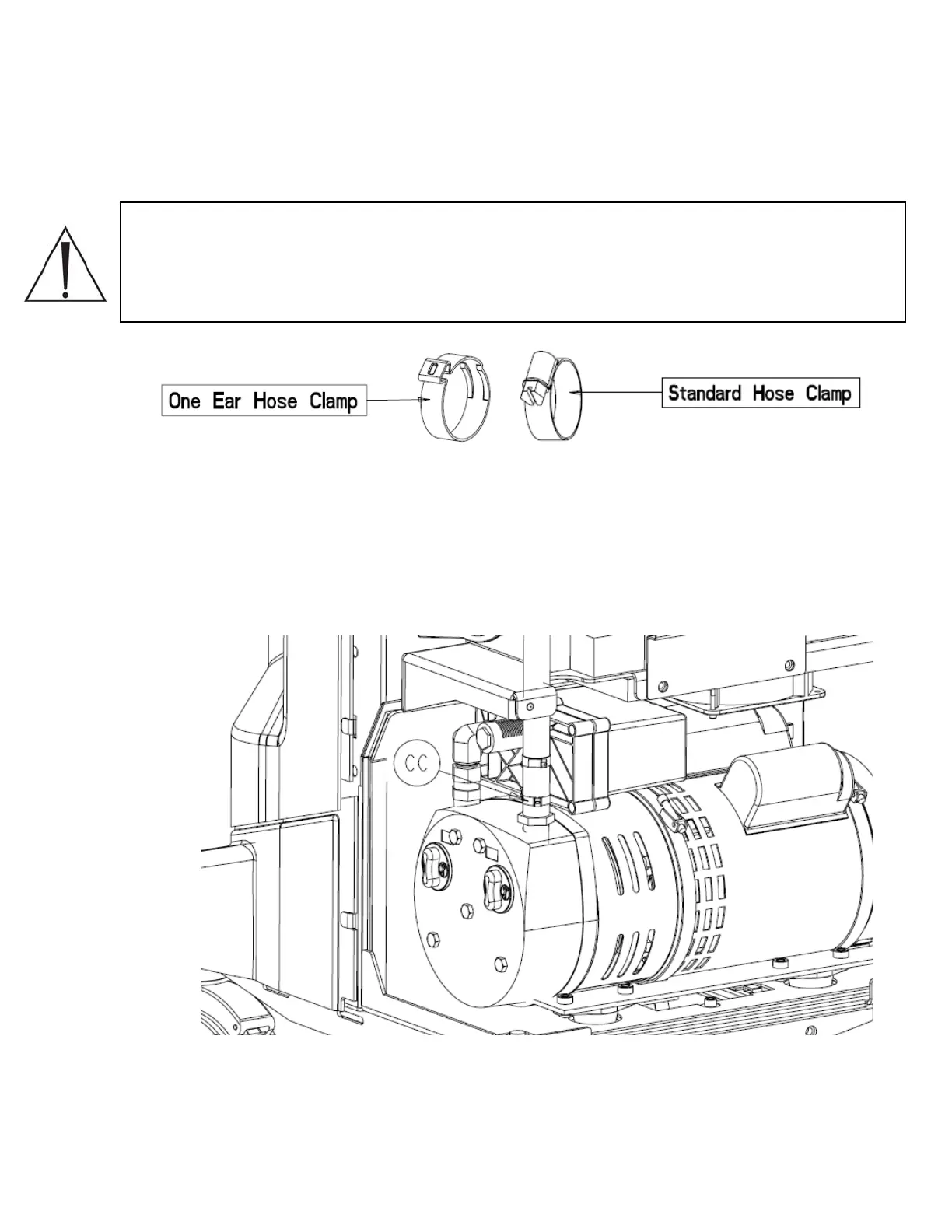

Note: There are two clamps on the canister vacuum hose assembly (P/N 0702-001-127)
(CB). One style is a hose clamp (P/N 0058-328-000) (CK), while the other is a one ear
hose clamp (P/N 0058-098-000) (CC). The one ear hose clamp is used during assembly.
The traditional hose clamp should be used once the one ear clamp is removed. The two
clamps are depicted below.
1. Using a pair of wire cutters, cut the one ear hose clamp (P/N 0058-328-000) (CC) that
holds the HEPA outlet tubing (P/N 0702-001-196) (K) to the vacuum pump (P/N
0702-001-101) (A) and remove the hose from the barbed fitting on the vacuum pump.
Be careful not to cut the vacuum hose. If the standard hose clamp is used instead of the
one ear clamp, use a screwdriver to loosen the clamp and remove the hose.
2-61
