Stryker Neptune 2 Service And Installation Manual

By looking at figure 6 we see that the original value for the large canister’s
reference magnet is 3CF40. (This is also reference [E] in figure 2)
ESC
FLOAT
LEVEL SENSOR DATA
REF
1F341
192B8
06089DIFF
VOLUME 00445
APP
35D40
3CF40
07200
01071
Original Value For The Large
Tank Reference Magnet

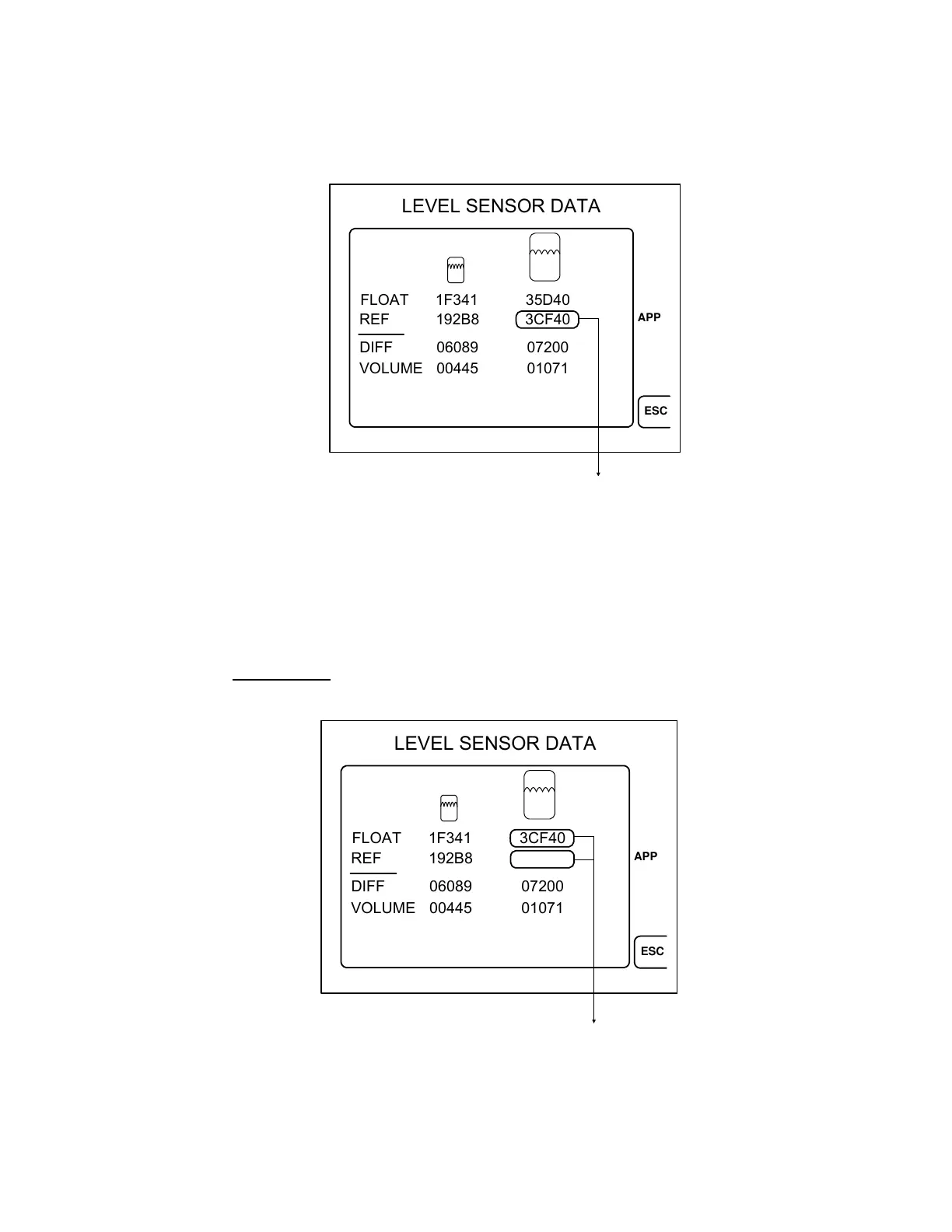

Figure 6: Level Sensor Data Screen; All Magnets Functioning Normally
If the float sensor in the large tank malfunctions, it will not send a response to the
transducer rod. Consequently, the software will mistake the response from the large
tank’s reference magnet (the fourth magnet) for the large tank’s float sensor (the third
magnet). This is easily recognizable because the large tank’s float sensor now displays
a value that is in the range of the large tank’s reference magnet. Figure 7 illustrates how
the response is placed on the screen.
ESC
FLOAT
LEVEL SENSOR DATA
REF
1F341
192B8
06089DIFF
VOLUME 00445
APP
3CF40
07200
01071
The Large Tank Reference Magnet Value Is Now
Displayed In The Large Tank Float Sensor’s Position.
00000
The Last Reading Is All Zeros Because It Was Missing.
Figure 7: Data Screen Displays Zeros for a Missing Magnet
6-38
