Exhaust Plenum Assembly P/N 702-901-930

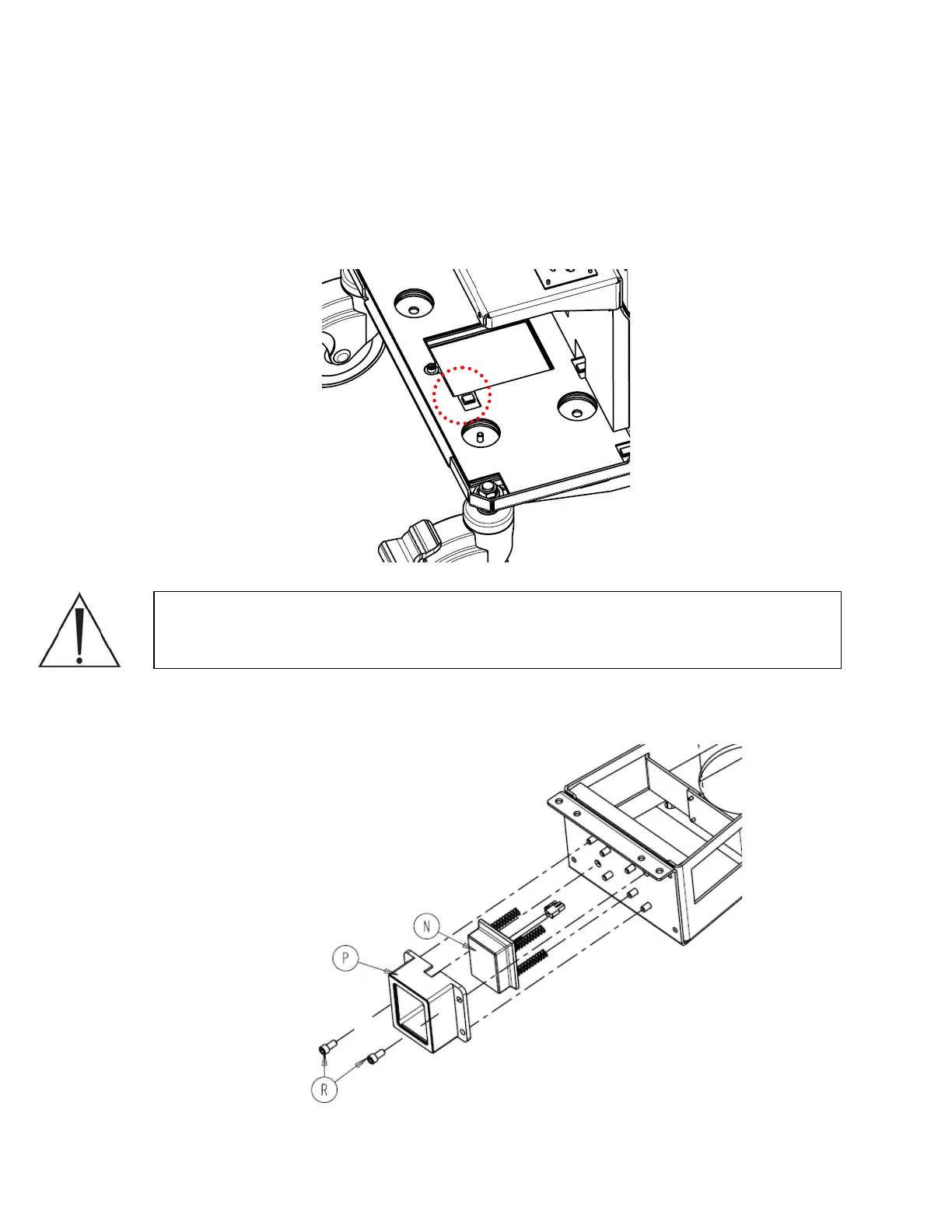

1. There is a cable tie underneath the vacuum pump holding the fan cable to the chassis.
Prior to removing the exhaust plenum, be sure to cut the cable tie to allow sufficient
slack in the cable assembly.
Note: Prior to lowering the exhaust plenum assembly you must remove the
rover power coupler assembly. Do not disconnect the grey cable attached to
the assembly. Instead, leave the cable connected.
2. Remove the two socket head cap screws (P/N 0004-645-000) (R) using a 3/16” allen
wrench.
