Stryker Neptune 2 Service And Installation Manual

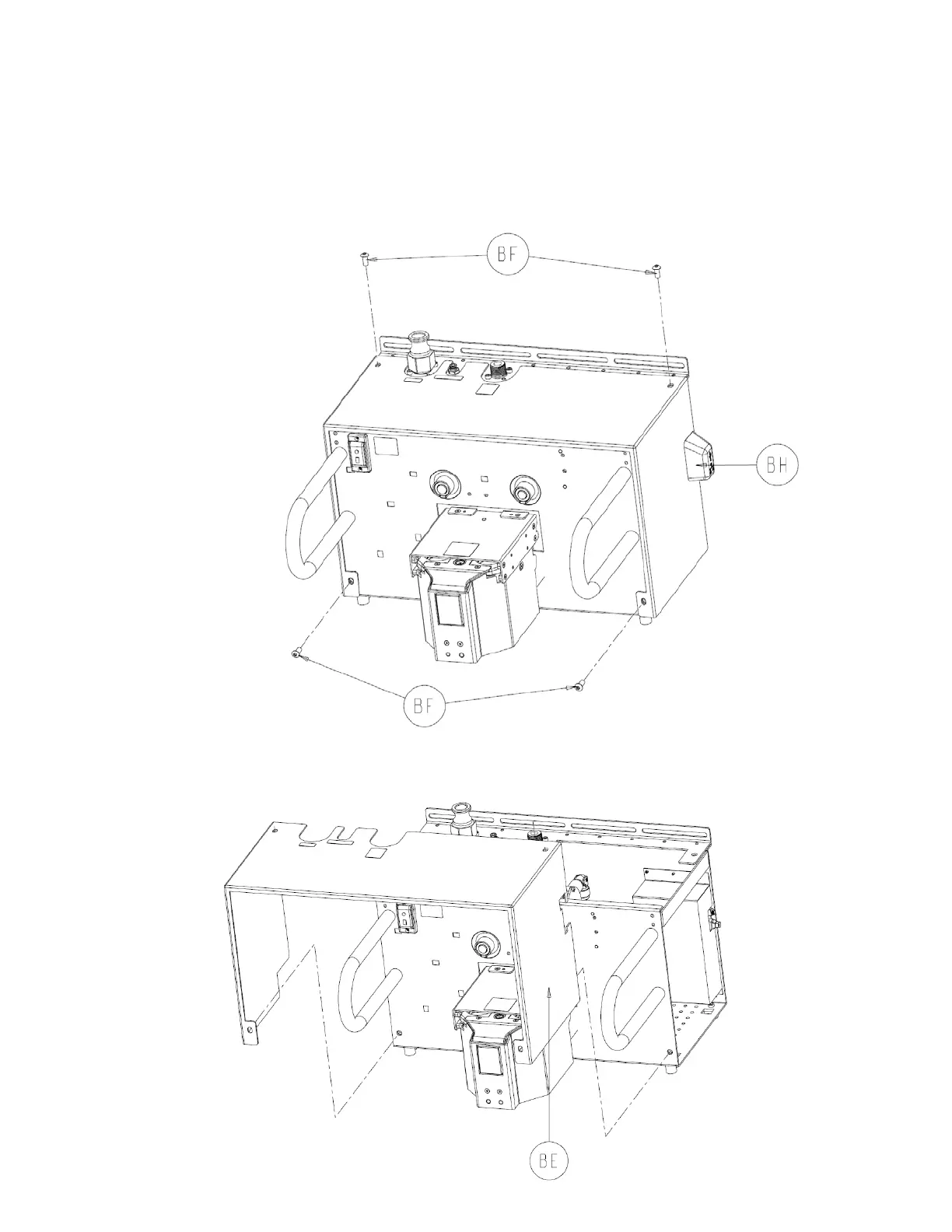

Chassis Top Cover Removal P/N 0702-014-011
1. Using a 3/16” allen wrench, remove four socket head cap screws (P/N 0004-638-000).
Make sure to remove the electronic ports cover (P/N 0702-014-027) (BH) before
removing top cover in the next step.
2. Slide chassis top cover (P/N 0702-014-011) (BE) forward and remove from chassis
assembly.
4-1

Stryker Neptune 2 Specifications

General

Brand	Stryker
Model	Neptune 2
Category	Medical Equipment
Language	English
