Small Canister Assembly P/N 0702-001-300
The following procedure outlines the removal of the small canister only. The small
canister can be removed while leaving the rest of the fluid collection assembly intact in the
system. To remove the large canister assembly it is best to follow the procedure Removing
Large and Small Canisters (p.2-25) followed by Separation of Large & Small Canister
Assemblies (p.2-31)
Caution: Ensure that the small canister is empty prior to step 1! Loosening the
seal nut and removing the fluid level transducer may cause fluid to leak from the
small canister if it is not empty.

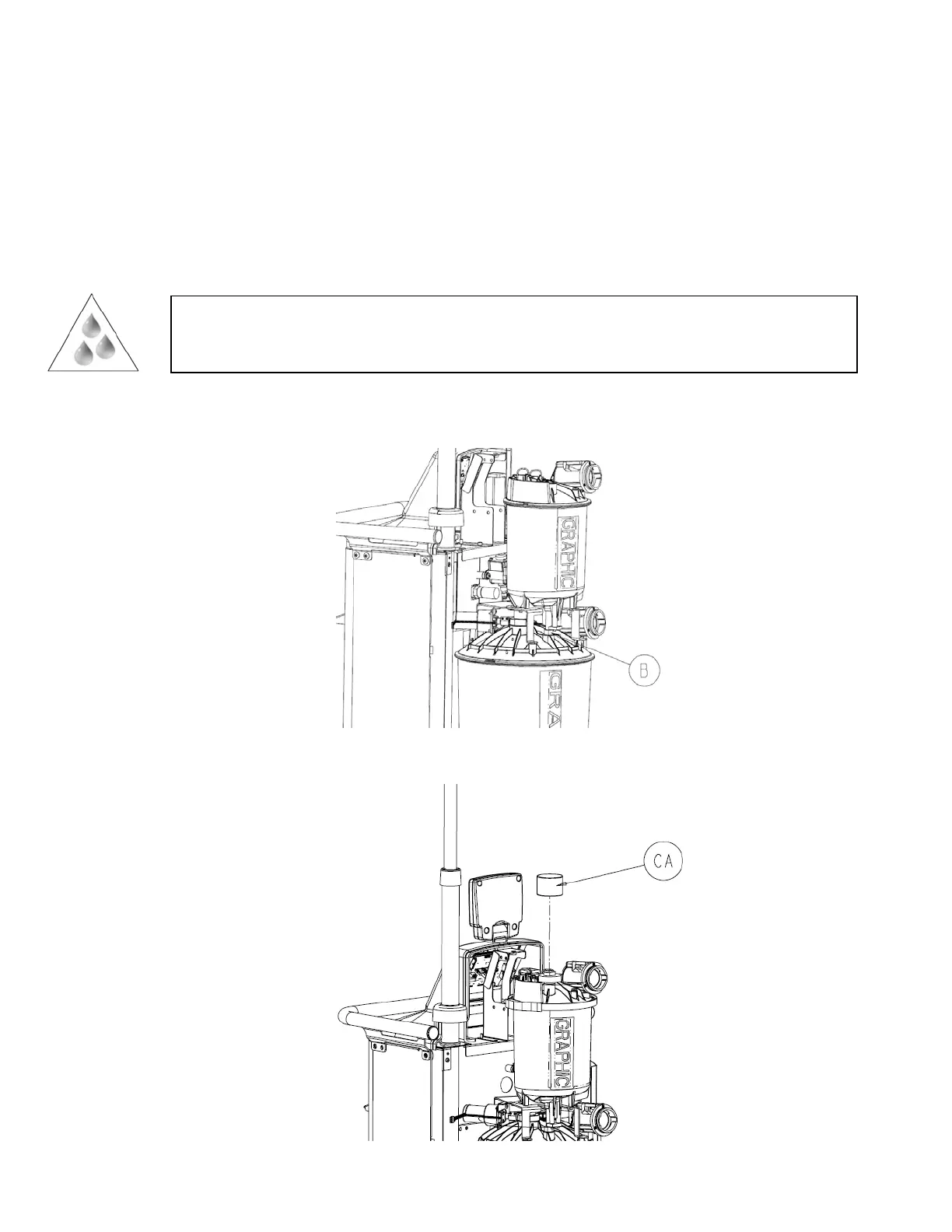

1. Using an adjustable wrench, loosen the transducer seal nut (P/N 0702-001-225) (B)
on the large canister cap. This provides the slack required to remove the fluid level
transducer.
2. Remove level sensor cover (P/N 702-1-882) (CA) from fluid level transducer (P/N
702-1-880) (AN) and place aside.
