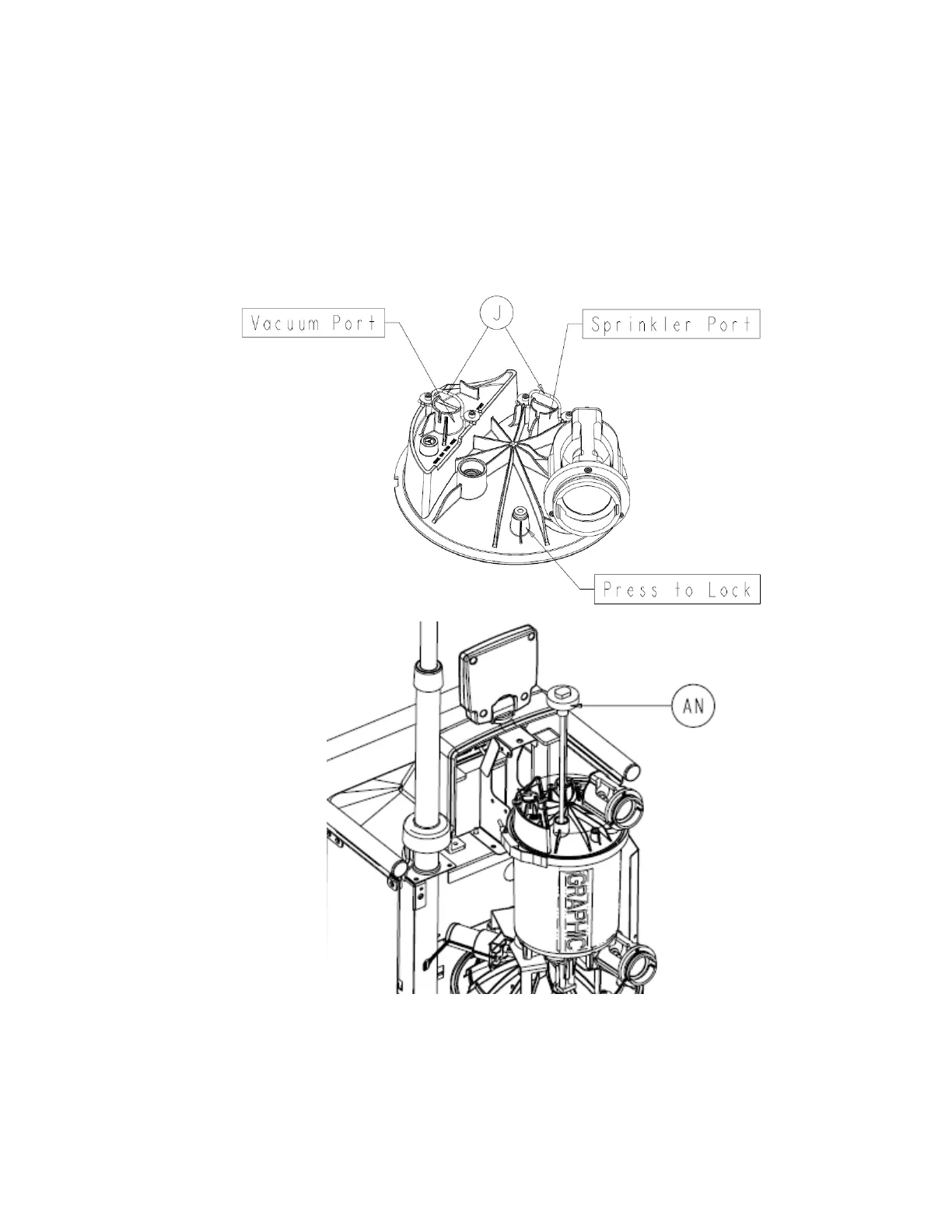

3. Disconnect the grey cable labeled level sensor from the fluid level transducer (P/N
702-1-880) (AN).
4. Remove the two coupling clips (P/N 702-1-204) (J) on small canister cap assembly
(P/N 702-1-200) (AM)
5. Remove elbow from ports marked vacuum port and sprinkler port from the small
canister cap assembly (P/N 702-1-200) (AM)
6. Remove the nylon tubing coming from the injector pump assembly going to the green
press-to-lock fitting on the small canister cap assembly (P/N 702-1-200) (AM).
7. Carefully unthread the fluid level transducer (P/N 702-1-880) (AN) from the small
canister cap assembly (P/N 702-1-200) (AM) and set aside.
2-36
