Stryker Neptune 2 - Extend Hall Sensor P;N 0702-014-119; Hall Sensor P;N 0702-014-906

Extend Hall Sensor P/N 0702-014-119
(Retract) Hall Sensor P/N 0702-014-906

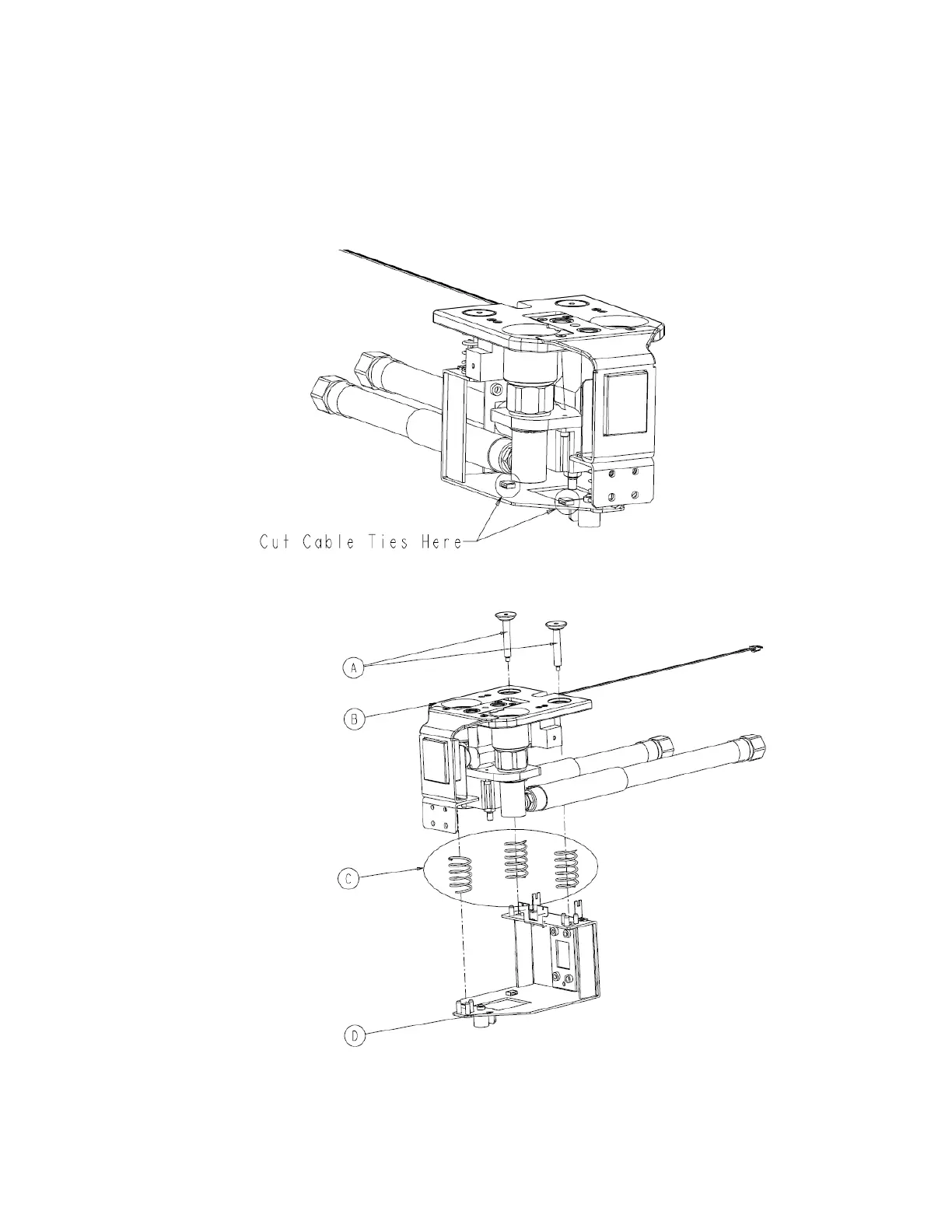

1. The wire harness attached to the docker power coupler assembly (P/N 0702-014-
114) (F) is secured by two cable ties to the actuator base frame (P/N 0702-014-101)
(D). Carefully cut the cable ties to remove the wire harness.
2. Using a 3/16” allen wrench, remove two actuator alignment rods (P/N 0702-014-104)
(A) from actuator interface (P/N 0702-014-110) (B).
3. Separate the actuator interface (P/N 0702-014-110) (B) from the actuator base frame
(P/N 0702-014-101) (D) and set aside the three compression springs (P/N 0038-585-
000) (C).
4-8
