Stryker Neptune 2 Service And Installation Manual

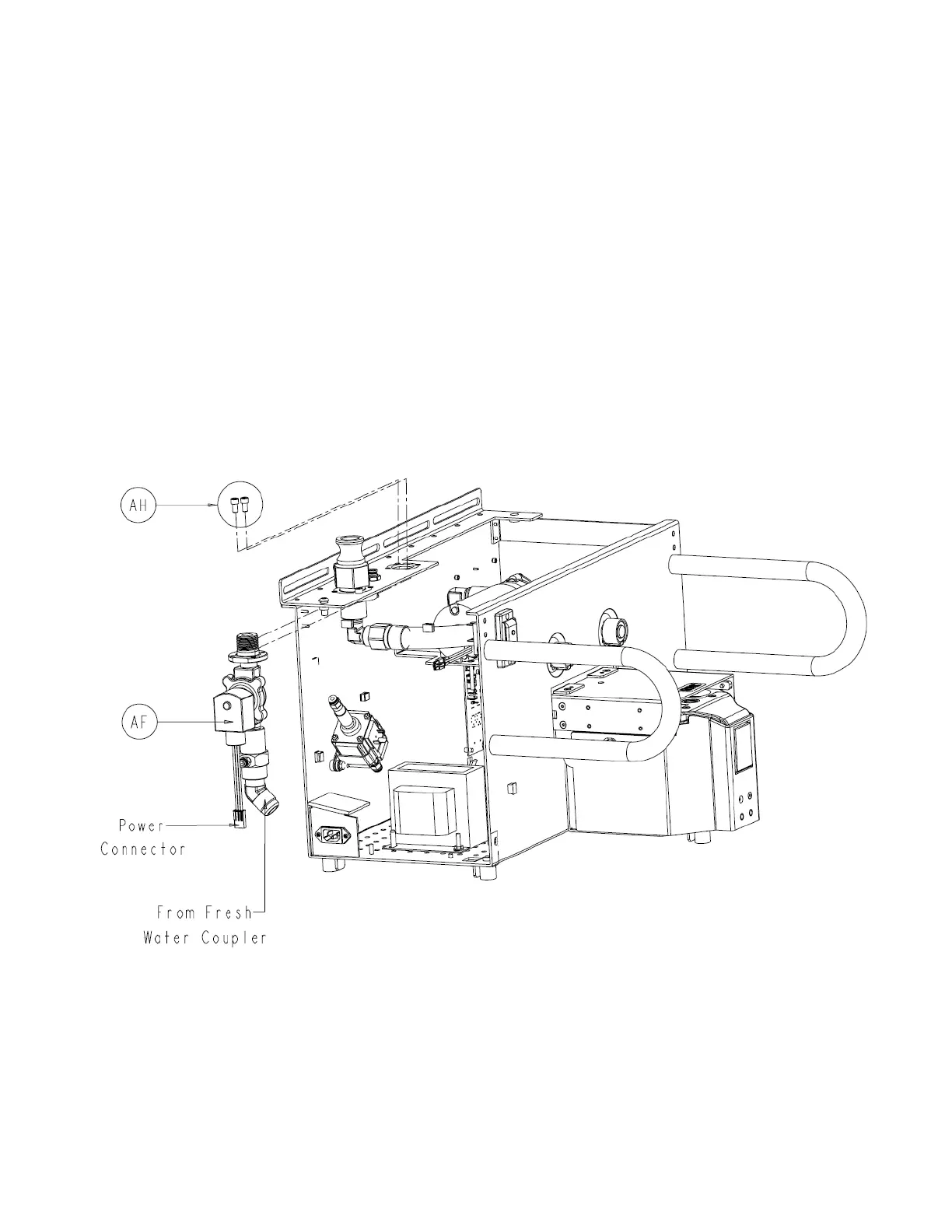

Water Inlet Assembly P/N 0702-014-400
1. Unplug the power connector labeled water inlet, from water valve/ offload pump/
soap pump wire harness (P/N 0702-014-021E).
2. Using an adjustable wrench, remove the fresh water hose connected to the water inlet
assembly (P/N 0702-014-400) (AF) from the bottom of the assembly.
3. Using a 3/16” allen wrench, remove the two socket head cap screws (P/N 004-645-
000) (AH) and remove the water inlet assembly (P/N 0702-014-400) (AF).
4-19

Stryker Neptune 2 Specifications

General

Brand	Stryker
Model	Neptune 2
Category	Medical Equipment
Language	English
