Power Transformer Assembly P/N 0702-001-830
Note: This procedure begins with the both fluid collection canisters removed. The
technician must complete Removing Large and Small Canisters on page 2.25
before proceeding.

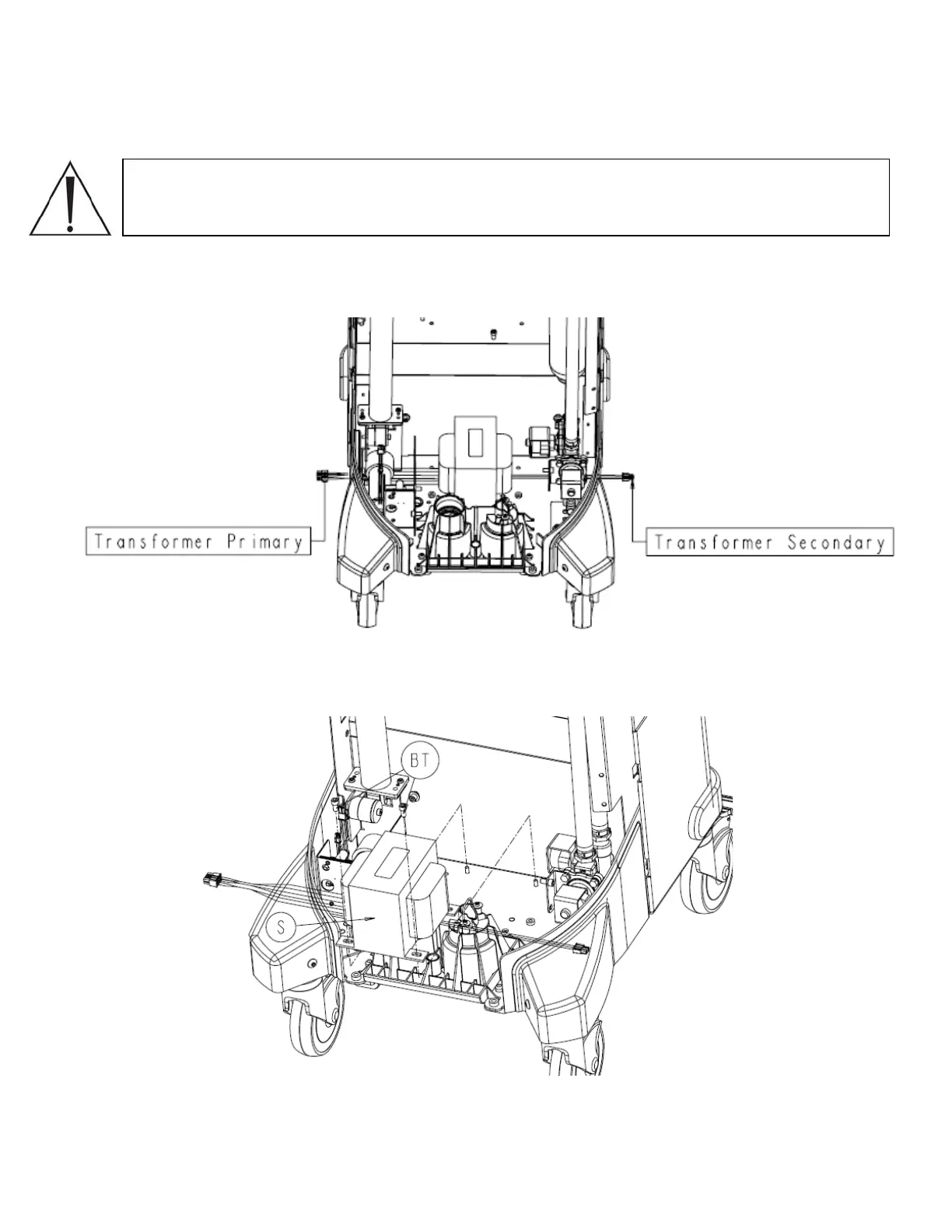

1. Disconnect cables labeled transformer primary and transformer secondary. Note
that the cables coming directly from the transformer are not labeled. The label is on the
main wire harness side of the connection.
2. Remove two socket head cap screws (P/N 0004-645-000) (BT) using a 3/16” allen
wrench.
3. Remove power transformer assembly (P/N 0702-001-830) (S) and set aside.
2-39
