Caution: There is a small amount of water that remains in the drain valve
assembly after the prefill has been emptied. After all the bolts have been
removed, make sure to lift the small canister assembly slowly to allow the fluid
to drain into the large canister assembly.

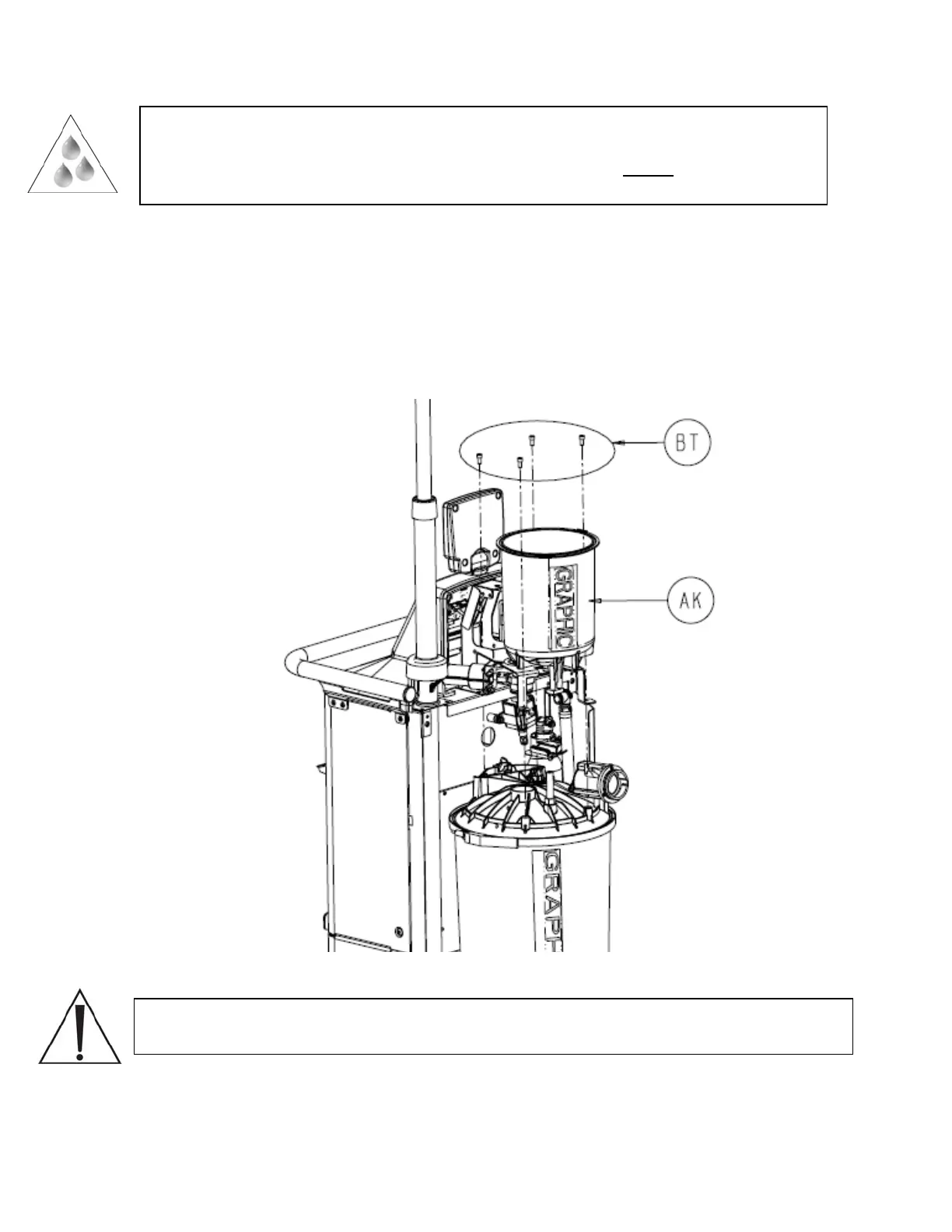

12. Remove the three socket head cap screws (P/N 0004-645-000) (BT) located on the
front left side, and the front and back right sides using a 3/16” allen wrench.
13. Remove the last socket head cap screw (P/N 0004-645-000) (BT) from the back left
side.
14. Carefully lift the small canister assembly (P/N 702-1-300) (AK) out and set aside. Be
mindful of any fluid that may remain in the drain valve assembly.
Caution: If replacing the canister, be sure to follow procedure 6.4 Performing the
Canister Calibration on page 6-11.
