Stryker Neptune 2 Service And Installation Manual

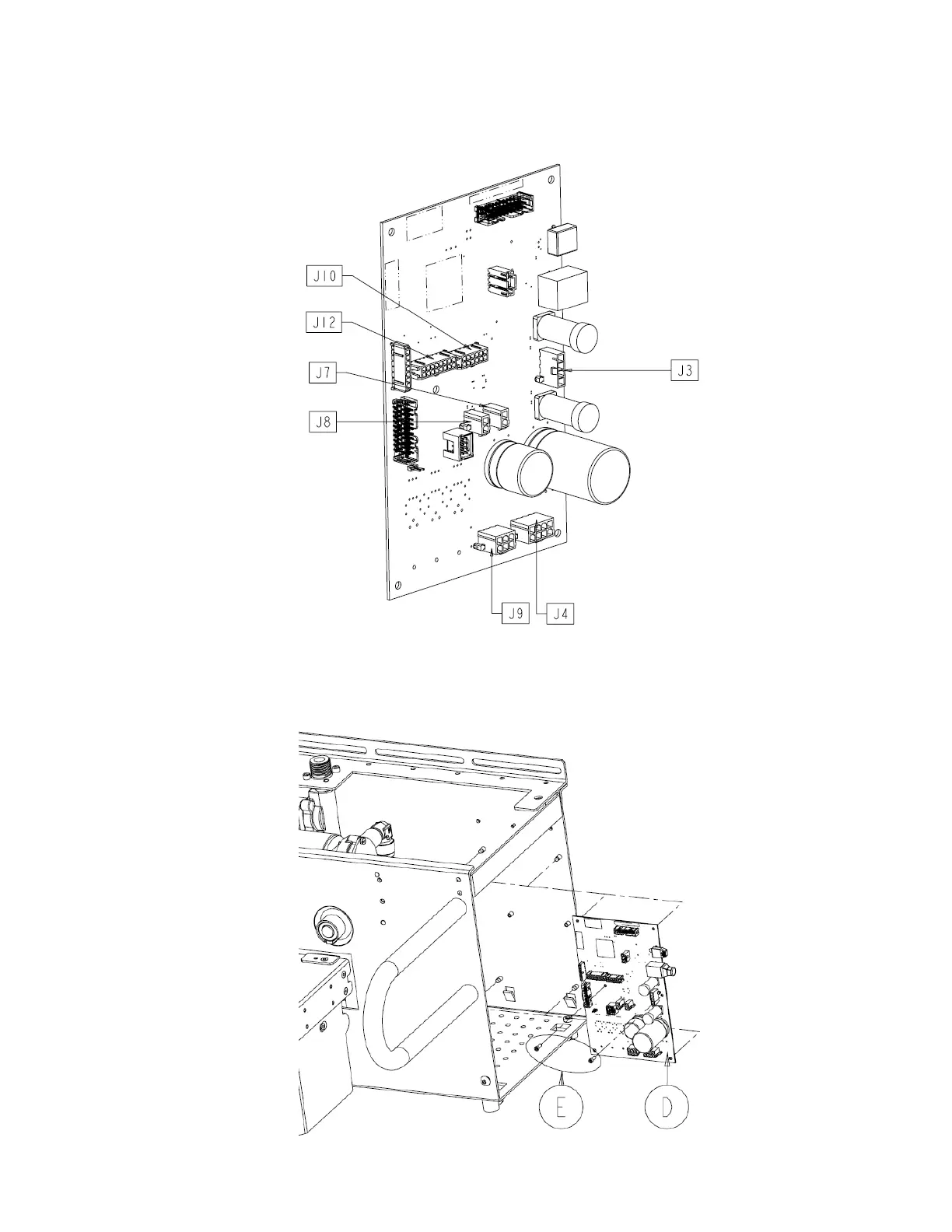

3. Disconnect connections from J3, J4, J7, J8, J9, J10, & J12 shown below from the
docker main controller PCBA (P/N 0702-014-500).
4. Remove two socket head cap screws (P/N 0004-529-000) (E) using 7/64” allen
wrench and remove docker main controller PCBA (P/N 0702-014-500) (D) from
docker chassis.
4-22
