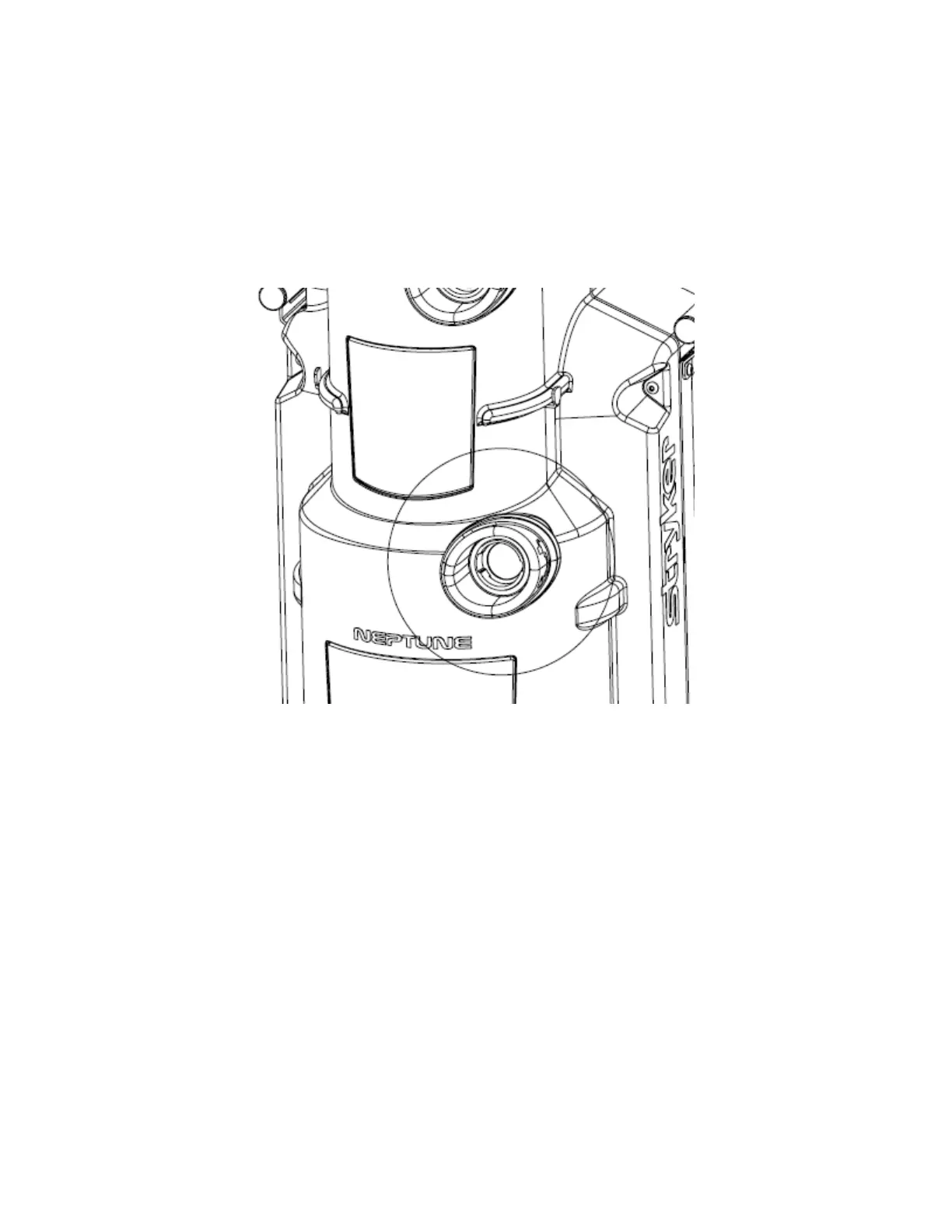

5. When reinstalling the front cover assembly, make sure that the manifold receptacle opening
is lined up properly. Failure to do so may cause the grey manifold boot to come loose. To
allow sufficient clearance when reinstalling the front cover, follow the procedure on p. 2-5
for removing the Rear Panel Assembly. The technician should remove the rear panel,
reinstall the front cover, and finally reinstall the rear panel assembly.
2-3
