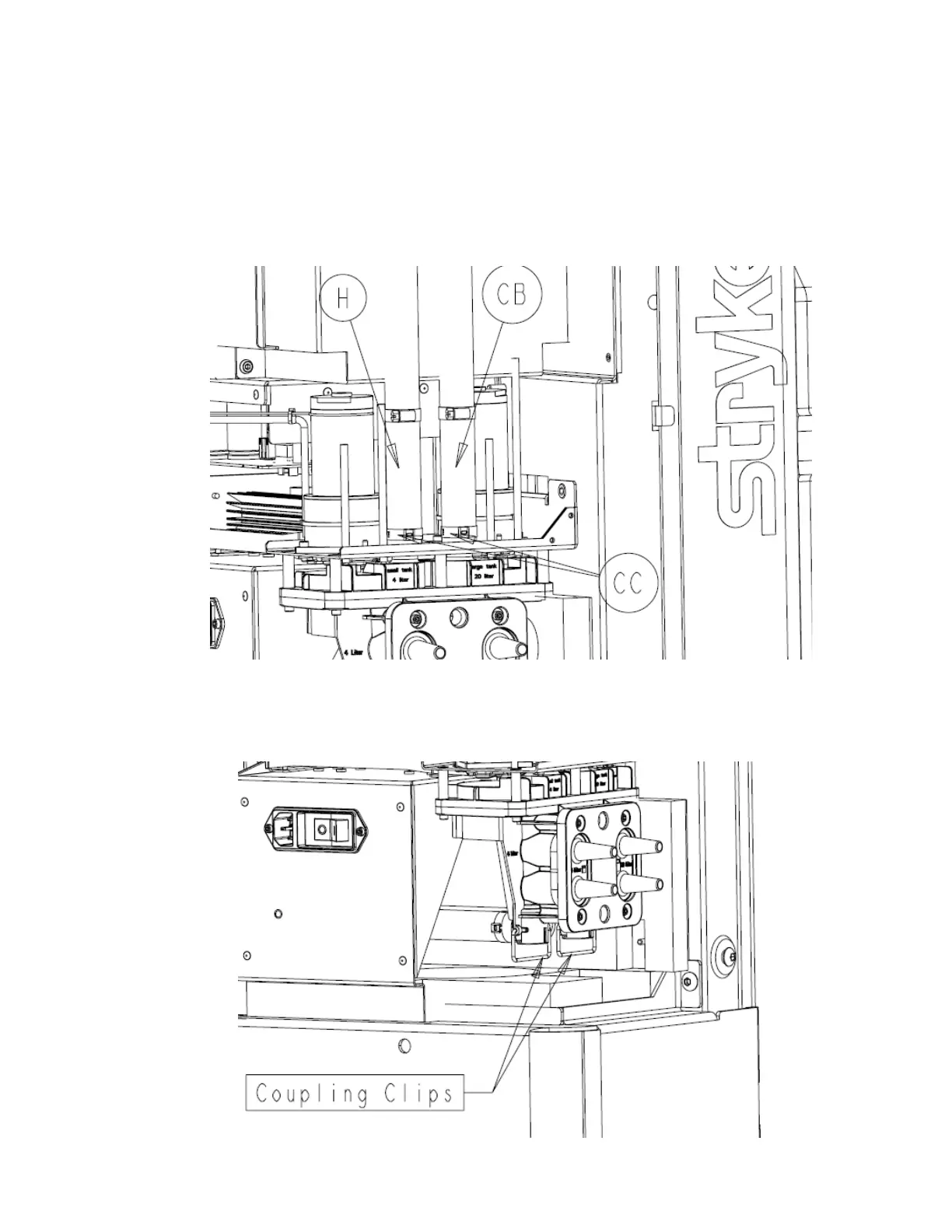

3. Using a pair of wire cutters, cut the one ear hose clamp (P/N 0058-098-000) (CC) that
hold the canister vacuum hose assemblies (P/N 0702-001-127) (CB) and the small
canister vacuum hose assy (P/N 0702-001-038) (H) to the vacuum manifold
assembly (P/N 0702-001-110) (N) and remove the hoses. Be careful not to cut the
vacuum hose. If the standard hose clamp is used instead of the one ear clamp, use a
screwdriver to loosen the clamp and remove the hose.
4. Remove the coupling clips that secure the two vacuum hoses from the HEPA filter
housing to the vacuum manifold assembly.
2-57
