External PSU for OnAir 2000
E
8
External PSU
Date printed:
12.11.03

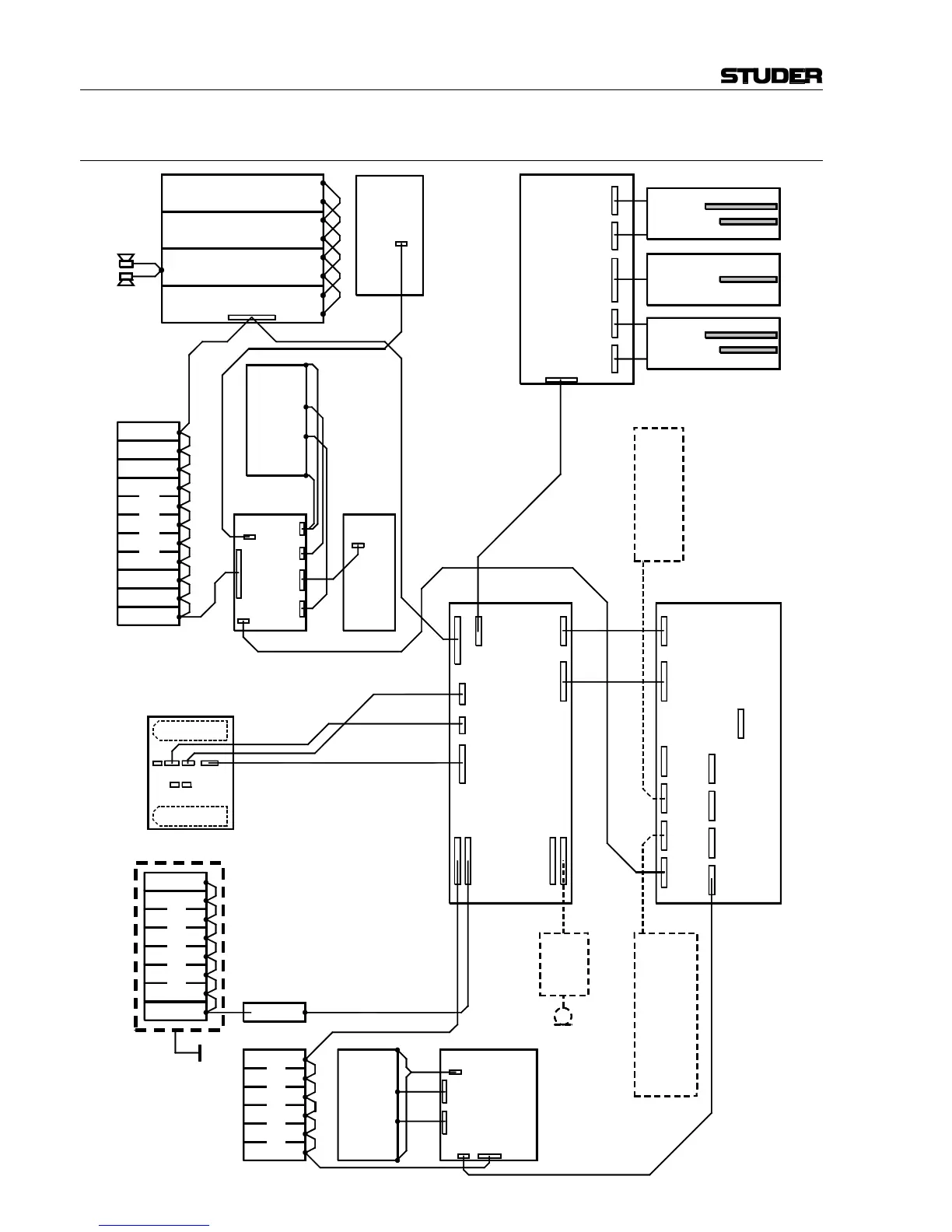

OnAir 2000/2000M2 Wiring Diagram with Power Supply Redundancy Option
Red. PSU Conn. Board
(Option) 1.942.107
P2
P5
P7
P3
P6
P4
P1
P8
1
2
3
4
5
6
Connection
Panel
in Console
(Option)
Display
(Input Modules)
P1
Channel Front Board
1.942.210
P2
P4
P5
P6
1
2
3
4
5
6
7
8
9
10
11
Output Modules
P1
Control Front Board I
1.942.610
P2
P3
P7
P6
P5
P4
Control Front Board III
1.942.112
P1
Display
(Center Screen)
CR Monitor Out
1.942.133
Studio Monitor
1.942.132
CR Monitor
1.942.131
Monitoring Controller
1.942.182
P3
P1
P2
P1
P2
P1
P2
P1
P2
PFL Speakers
(red/blk twisted pairs)
Control Front Board II
1.942.111
P2
P1
Level Meter Interface
1.942.113
DSP Board
1.942.102
Controller Board
1.942.601
P1
P2
P3
(IMB1)
(IMB2)
(IMB3)
(IMB4)
P19
P26
P27
P71
P72
P73
P70
P4
Center
screen
P3
LCD
1...6
P7
P5
LCD
7...12
P8
LCD
13...18
P11
P10
LCD
19...24
P16
P18
P13
Service T
erminal
P9
ME1L
P3
ME1R
P4
ME2R
P7
ME2L
P6
CORR
P5
Display
Illumination
Flex
cables
64pin
16pin
40pin
(Options)
Telephone Hybrid IF
1.942.140
Clock Sync IF
1.942.135
Time Sync IF
1.942.150
20pin
16pin
(Option)
Serial Interface Module
RS232/RS422
1.942.145
16pin
16pin
20pin
Flex
cables
Display
illumin-
ation
16pin
P4
(Option)
TB Mic Inp.
1.942.219
Meter 1
e.g.
1.913.111
1.913.112
Correlator
e.g.
1.913.100
1.913.109
Meter 2
e.g.
1.913.111
1.913.112
64pin
64pin
64pin
40pin
16pin
1
2
3
4
5
6
Input Modules
40pin
20pin
Conn.
Term.
Input Module Extension Box (Option)
Conn.
Input Modules
PE
16pin
433
435
