OnAir 2000M2 Digital Mixing Console
9-2 Machine Control SW V 4.0 Date printed: 12.11.03
Key 3/LED 3 The functionality of the third key (labeled “OFF”) depends on the console
configuration. It can act as channel OFF key or trigger a LOCATE func-

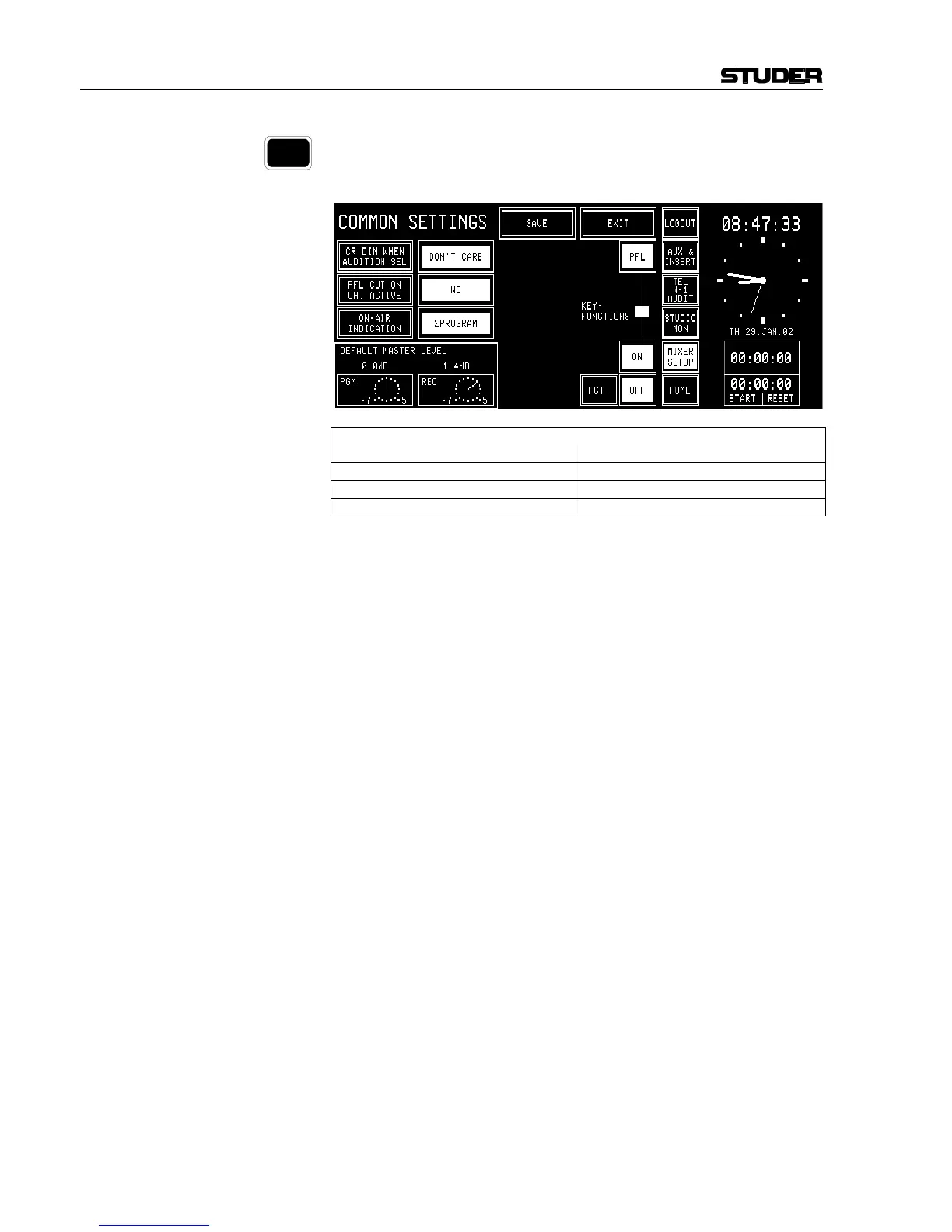

tion. The key 3 functionality is set in the COMMON SETTINGS page:
Console configuration (valid for all channels):
Key 3 (“OFF”) function Key 2 (“ON”) function
(Channel) OFF (Channel) ON
LOCATE (Channel) ON/OFF
LOCATE (Channel) ON *
Channel ON/OFF affects the CTRL OUT1 control signal of the selected
input, and the LOCATE function defines the status of the CTRL OUT2
control signal of the selected input.
* This additional configuration possibility has been introduced with SW
V3.0; to protect a channel from being switched off inadvertently, the OFF
function can be disabled. This setting is performed in the COMMON
SETTINGS page; it is valid for all channels of the console simultaneously.
Note: If this setting is selected, no channel can be switched off by pressing a key
– therefore, either closing the fader must do, or an external pushbutton per
channel has to be added. For this purpose, a CTRL IN control input per
channel is provided; please refer to chapter 9.3.1. Select the option
“CTRL. IN – EXT. ON/OFF” in the INPUT CONFIG. page.
LED 3 is illuminated if an external device indicates ready status using the
CTRL IN input signal of the selected input, or if the CAB system indicates
“ready for playback” via the (optional) serial interface (“Monitora” proto-
col, refer to chapter 10).
