GTS Technical Manual
9. April 2021 Edition: V1.00/2021 6-4
Copyright © 2020, Diversey
06.14.24 dashboard - 3500µicro_V1.00.fm
6.2 Dashboard
6.2.1 Removing of dashboard

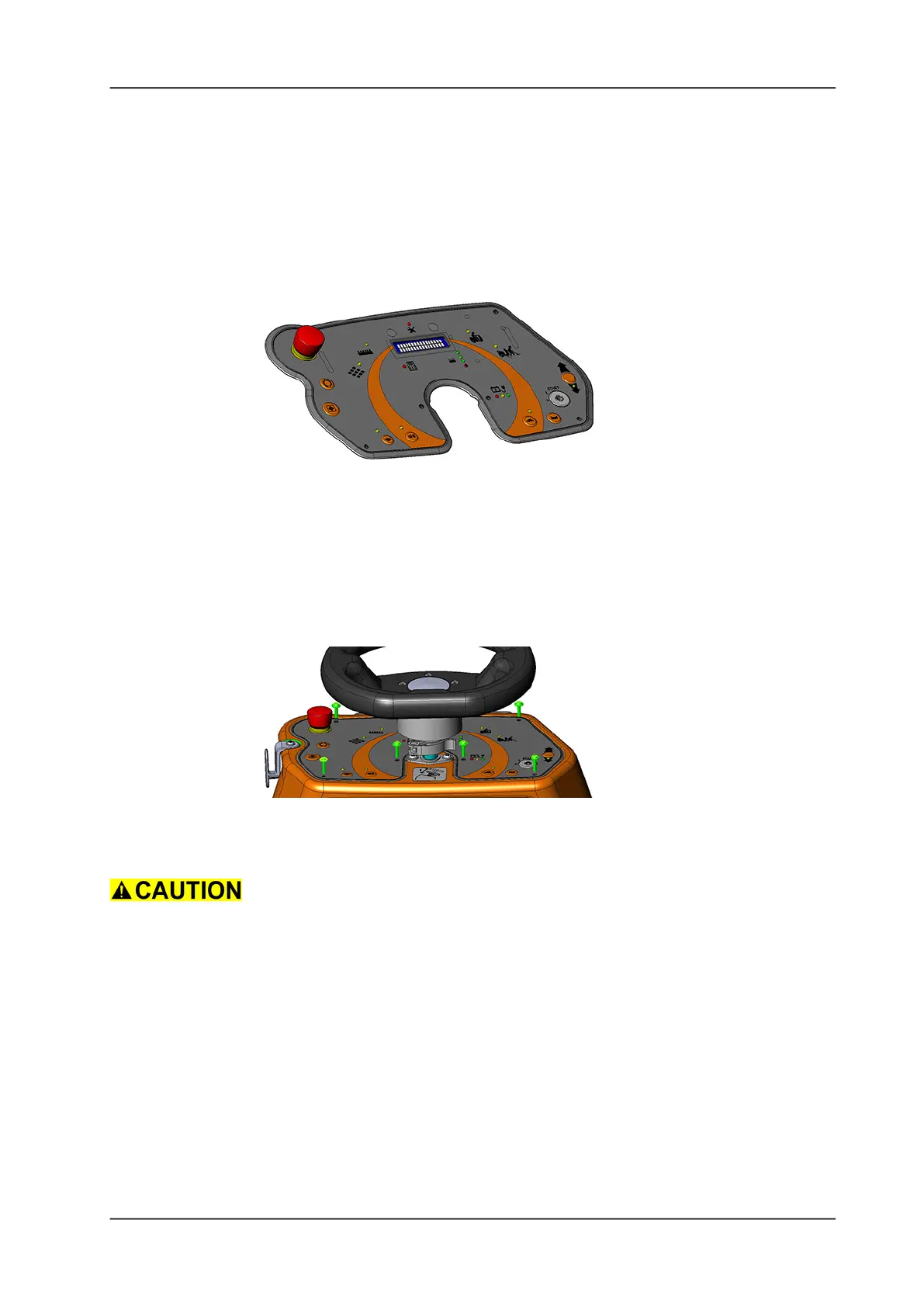

Picture 4: Dashboard
Remarks
Change the position of the steering wheel for better access to the
screws if needed.
• Remove the 6 screws (4127073) of the dashboard set
(4134599).
Picture 5: Removing dashboard
• Remove the dashboard from the front hood (4131360).
Be cautious when removing the dashboard as you can damage the
wires or the ribbon cables of the dashboard.
• Disconnect all electrical connections to dashboard.
• Remove the dashboard.
