5.3 Driver seat
5.3.1 Removing of driver seat

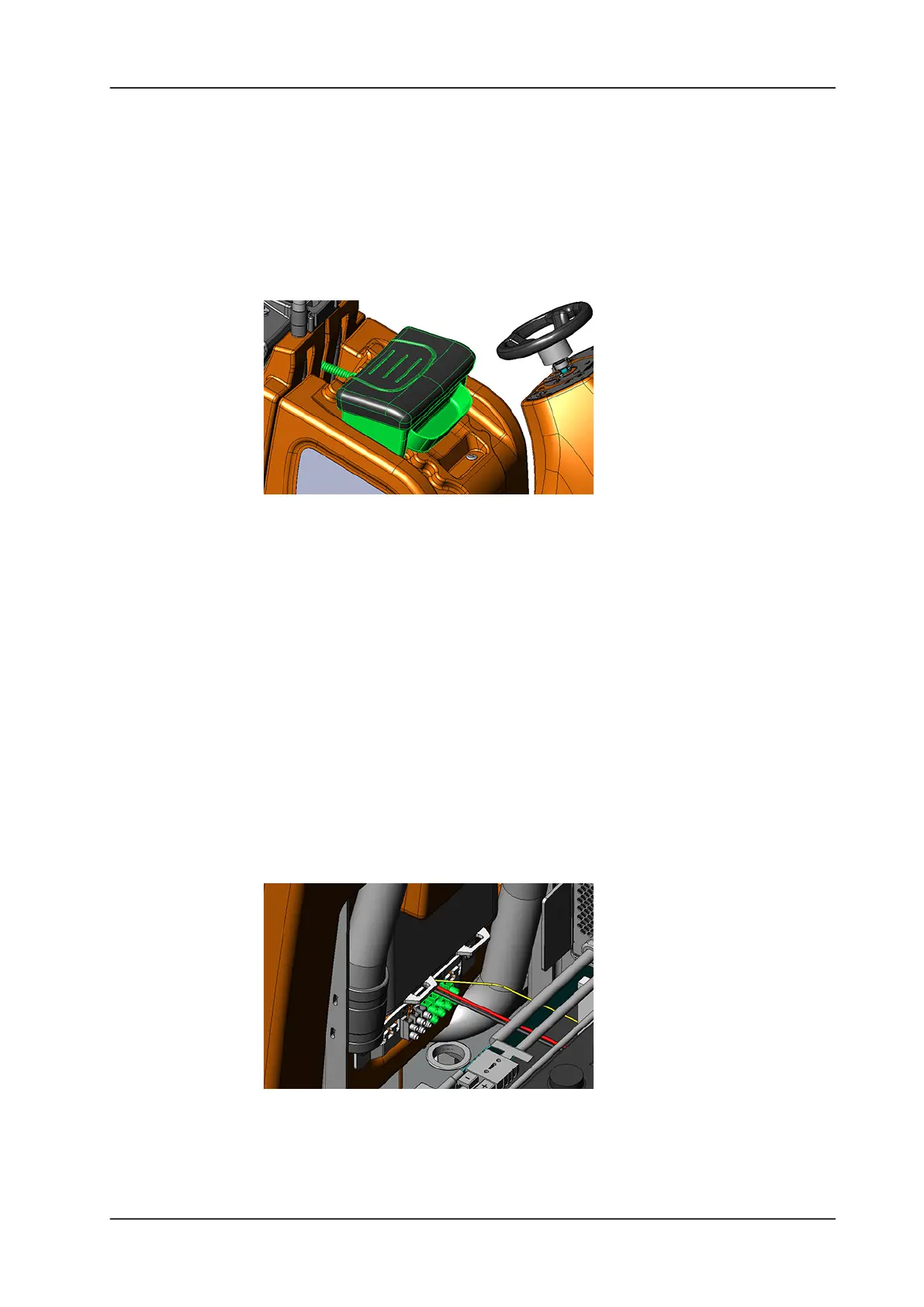

Picture 16: Driver seat
Remarks
The driver seat (4132166) is constructed that you can move it around.
We advise to place it on a stable position, for example onto the floor
beside the machine.
• Place the driver seat on a stable position.
• Remove the seat cover according to chapter REMOVING OF
DRIVER SEAT COVER.
Remarks
To reach the driver seat fixation you
need to remove the two rear
batteries.
• Disconnect the driver seat cable wires from the connection block
(4122096).
Picture 17: Removing driver seat
• Cut the cable ties and thread out the cable.
• According to what you need to exchange, remove the existing
parts from the seat and place it on the new one.
