5.2 Tank
5.2.1 Removing of vacuum motor

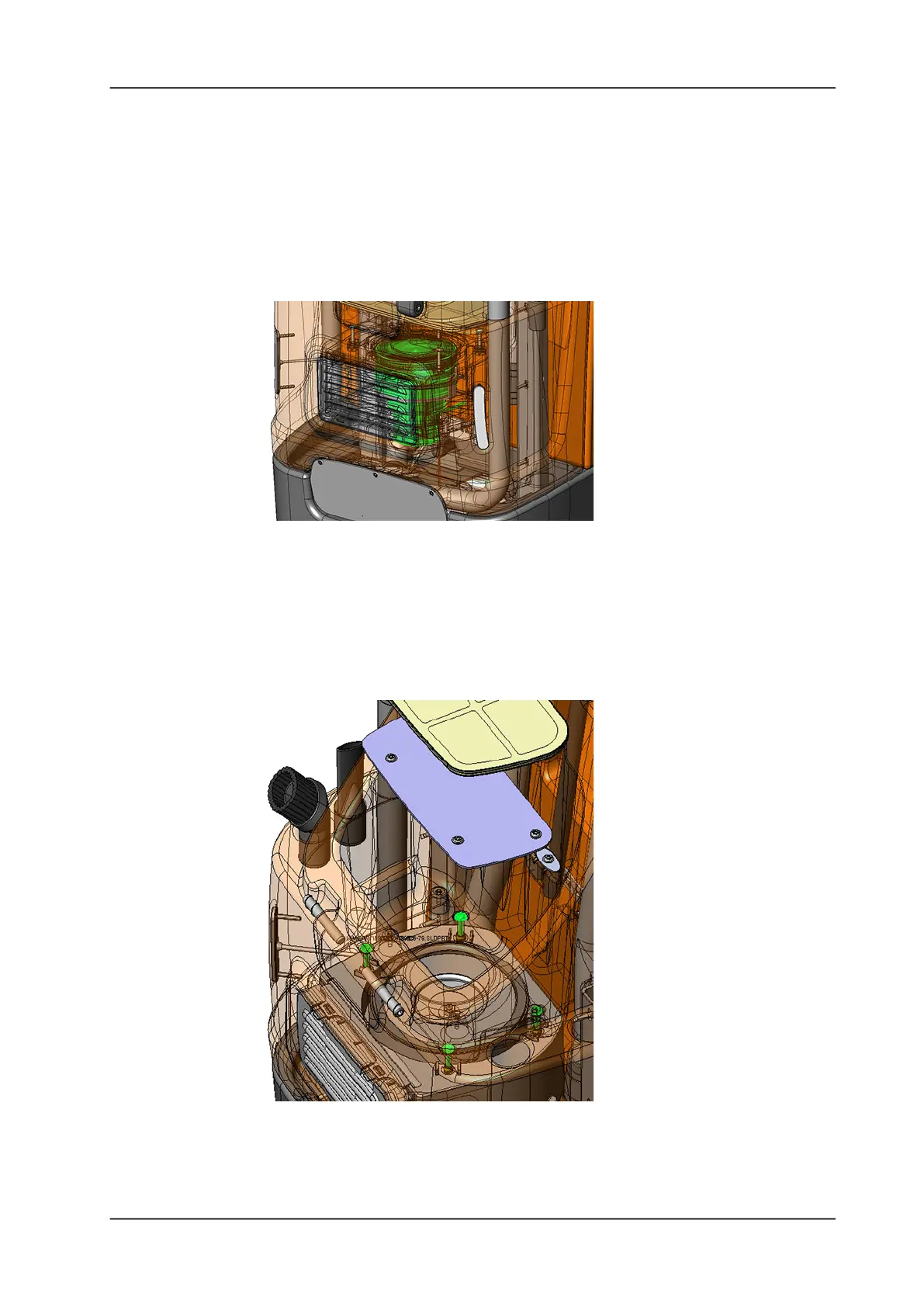

Picture 1: Vacuum motor
• Open the tank cover (4134109).
• Remove the filter cloth (7524880) togheter with the holding
frame (4134114).
• Remove the four screws (4122639) together with the inlet
protection (4134116).
• Remove the four screws (4134313) to release the vacuum motor
fixation.
Picture 2: Vacuum motor fixation screws
• Remove the seat cover according to chapter REMOVING OF
• DRIVER SEAT COVER.
