GTS Technical Manual
9. April 2021 Edition: V1.00/2021 6-20
Copyright © 2020, Diversey
06.20.18 charger - 3500µicro_V1.00.fm
6.4 Charger
6.4.1 Removing of charger

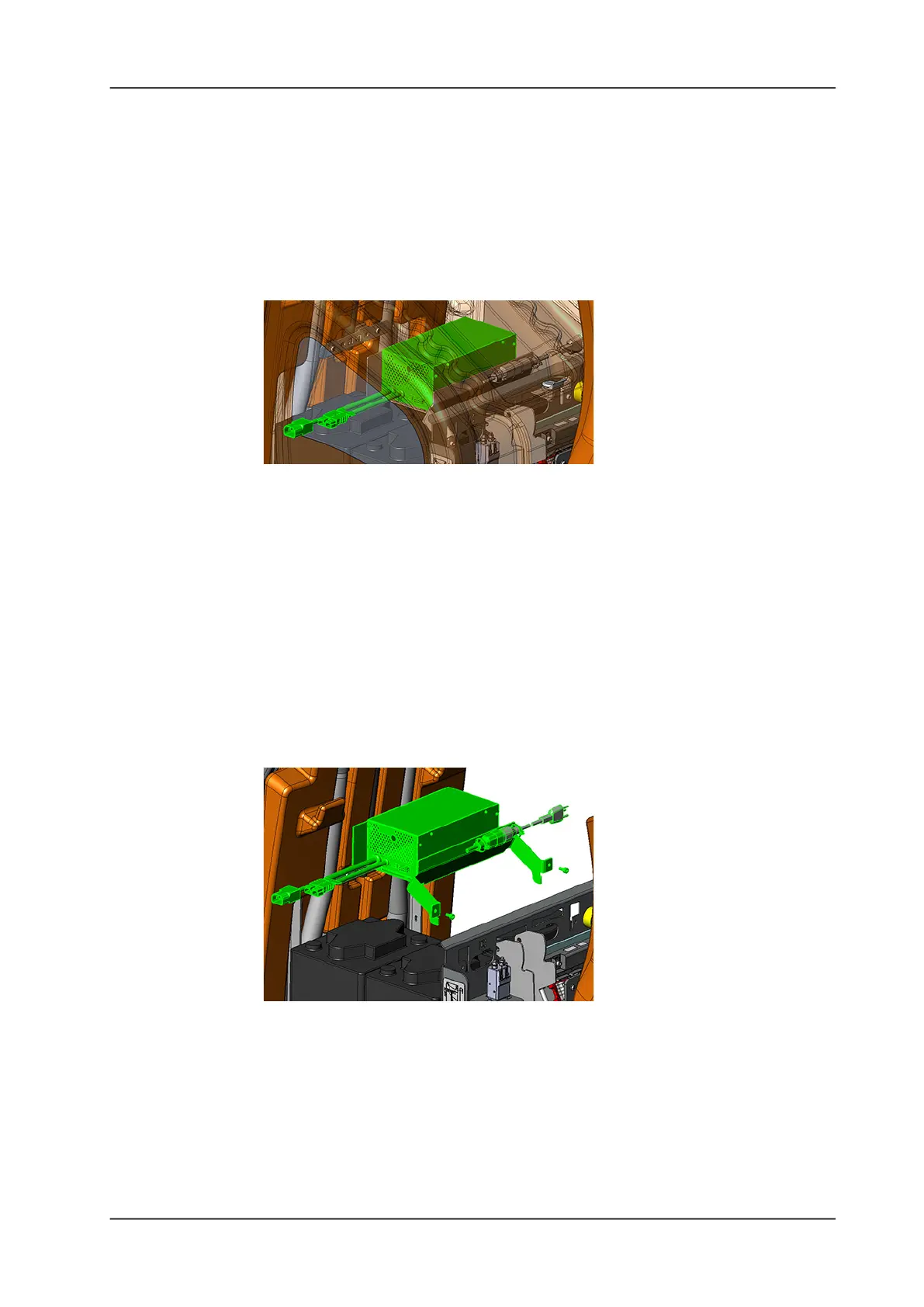

Picture 13: Charger
• Remove the seat cover according to chapter REMOVING OF
DRIVER SEAT COVER (refer to “Mechanical” section).
• Disconnect the plug to the battery connector (4043320).
• Disconnect the plug to the main cord, fixated on the charger
holder (4131448).
• Disconnect the plug of the cable (4131707) to the electronics
(4131532).
• Disconnect the plug of the cable (4131558) to the dashboard
(4134599).
• Remove the 2 screws (4006430) for the charger holder
(4131448).
• Remove the charger holder with the charger out of the electrical
support (4131385) by sliding it upwards.
Picture 14: Removing charger
• Remove the 2 self-locking nuts (4092870) and the 2 washers
(4019790).
• Remove the charger.
