GTS Technical Manual
9. April 2021 Edition: V1.00/2021 6-31
Copyright © 2020, Diversey
06.26.16 main relay - 3500µicro_V1.00.fm
6.6 Main relay
6.6.2 Mounting of main relay

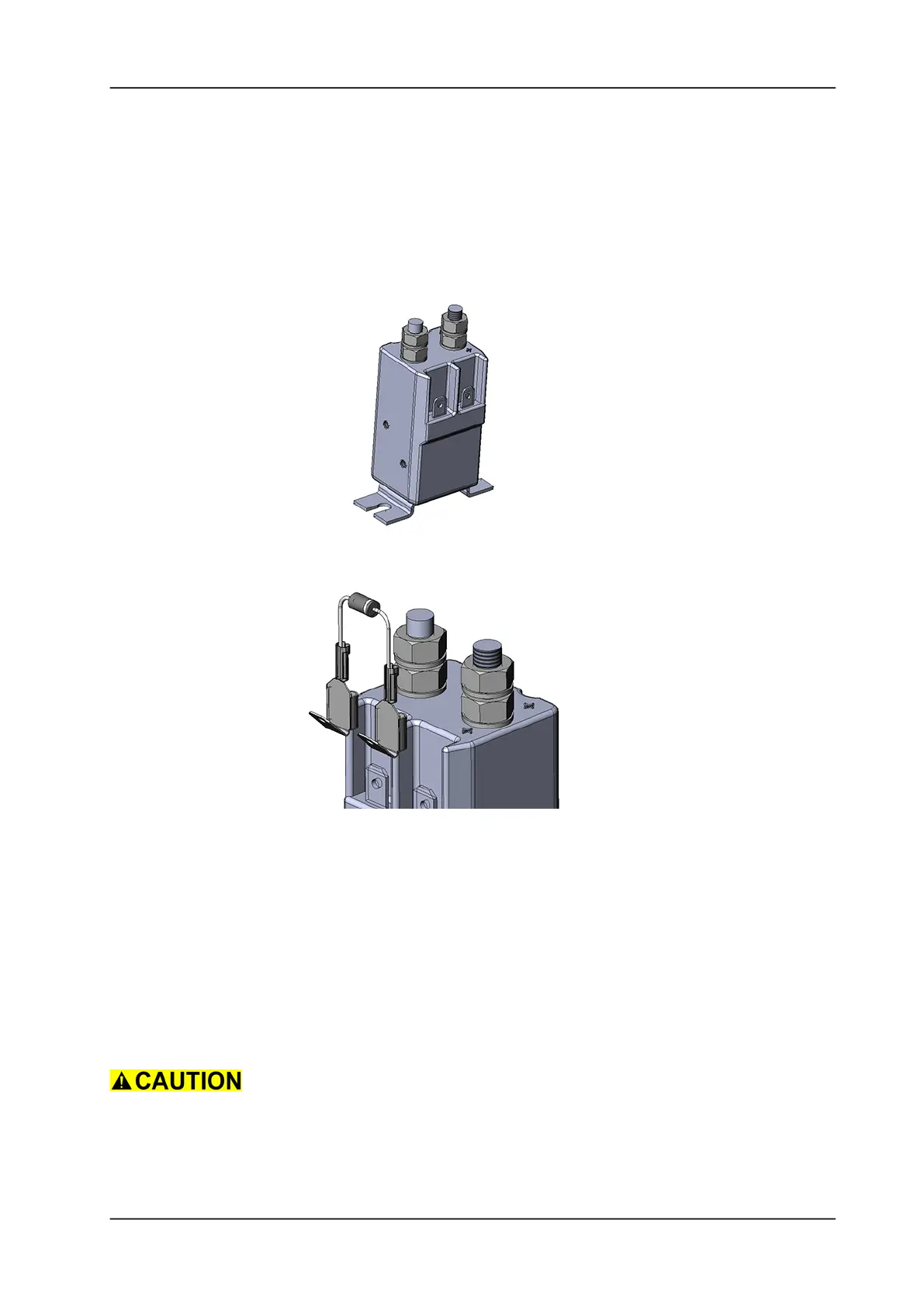

Picture 29: Main relay unit
• Position the main relay.
Picture 30: Mounting diode
• Position the 2 screws and the 2 washers.
• Mount the 2 self-locking nuts and tighten them.
• Connect the wires and the plugs.
• Complete assembling according to chapter MOUNTING OF
DRIVER SEAT COVER (refer to “Mechanical” section).
Remarks
Ensure that you mount the existing parts (e.g. diode) back onto the
main relay.
Make sure that you check the function of the main relay during each
visit as this is a security feature.
Make sure that you connect the coil of the relay correctly. The positive
connection is marked red.
