GTS Technical Manual
9. April 2021 Edition: V1.00/2021 5-30
Copyright © 2020, Diversey
05.28.13 pedals - microswitch - 2100µicro_3500µicro_V1.10.fm
5.5 Pedals
5.5.4 Mounting of pedal micro switch

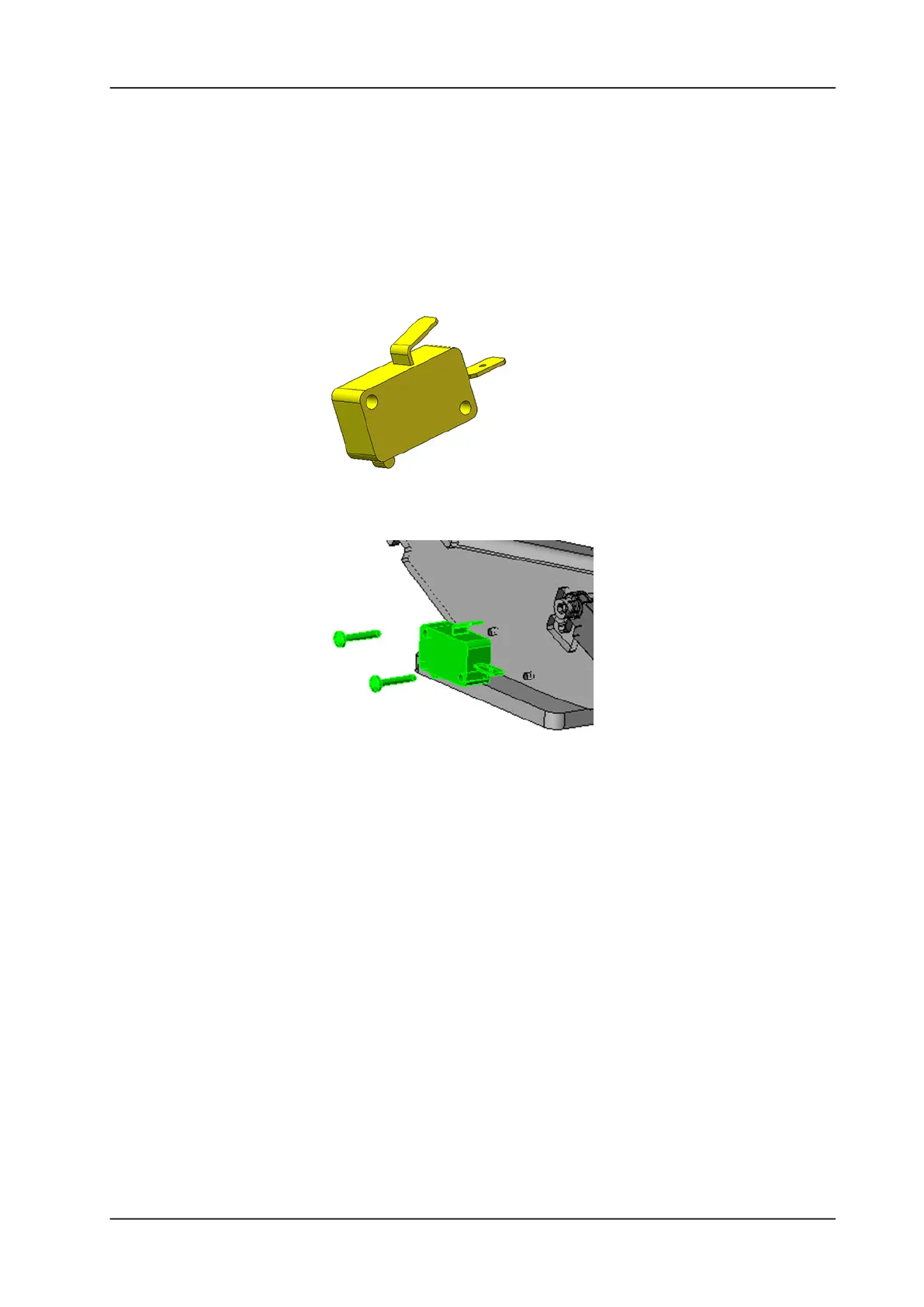

Picture 42: Micro switch unit
• Position the micro switch onto the pedal unit.
Picture 43: Mounting micro switch
• Mount and tighten the two screws for micro switch.
• Connect the wires to the micro switch.
• Complete assembling according to chapter MOUNTING OF
PEDAL SPRING.
