GTS Technical Manual
9. April 2021 Edition: V1.00/2021 5-37
Copyright © 2020, Diversey
05.30.24 tool lowering unit - lowering offset - 3500µicro_V1.00.fm
5.6 Tool lowering unit
5.6.4 Mounting tool lowering offset

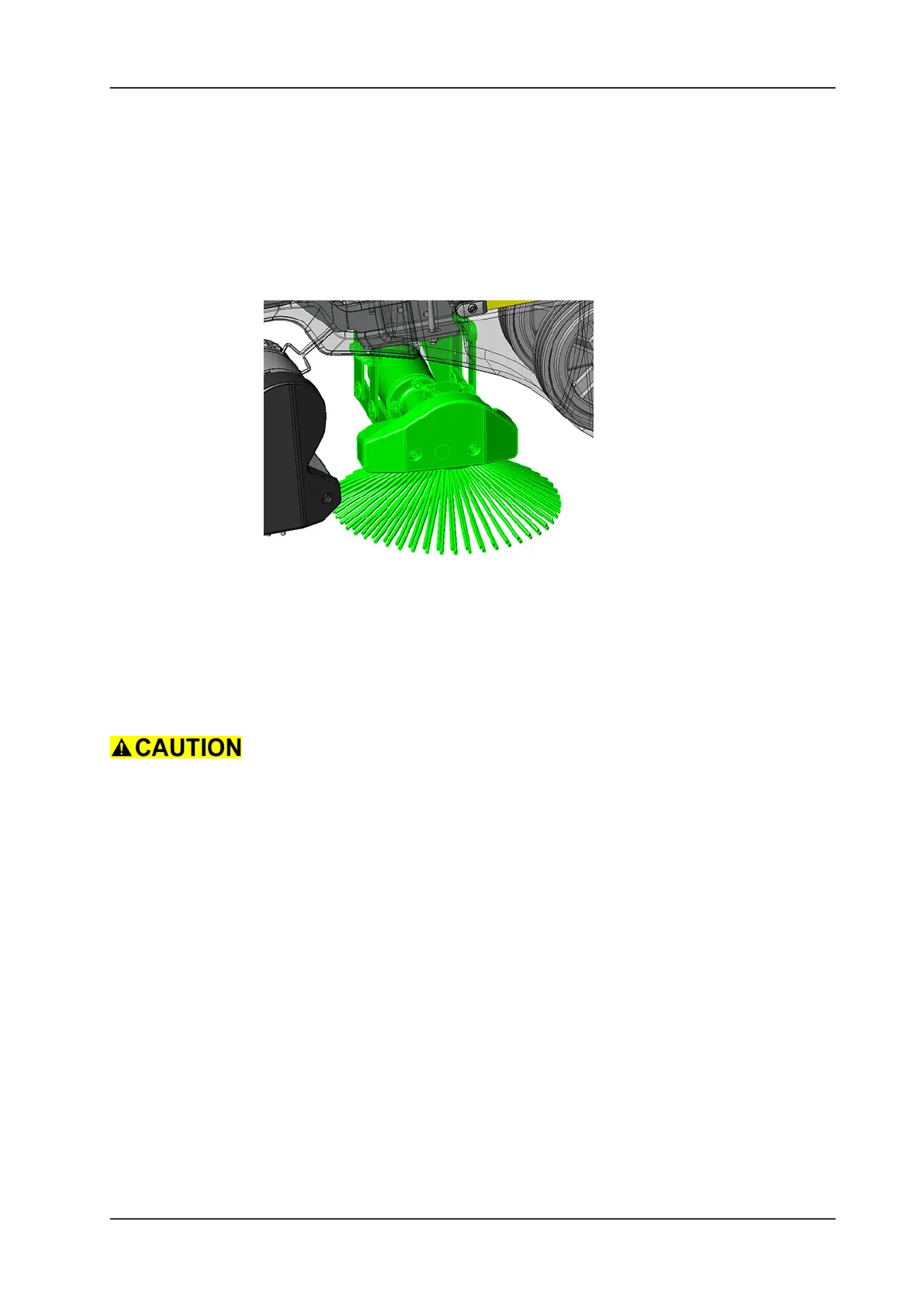

Picture 54: Linear drive for offset
• Position the tool lowering offset onto the chassis.
• Mount the three screws of the tool lowering.
• Place the bolt of the metal rope onto the tool lowering unit and
mount the retaining washer.
• Connect the brush motor wires to the connection block.
• Mount the tool.
Make sure that the metal rope compl and cable of the linear drive do
not interfere with the movement of the tool lowering unit.
