Taski AERO 3500 micro - Mounting of Steering Roller Chain

GTS Technical Manual
9. April 2021 Edition: V1.00/2021 5-24
Copyright © 2020, Diversey
05.26.23 steering unit - steering roller chain - 3500µicro_V1.00.fm
5.4 Steering unit
5.4.4 Mounting of steering roller chain

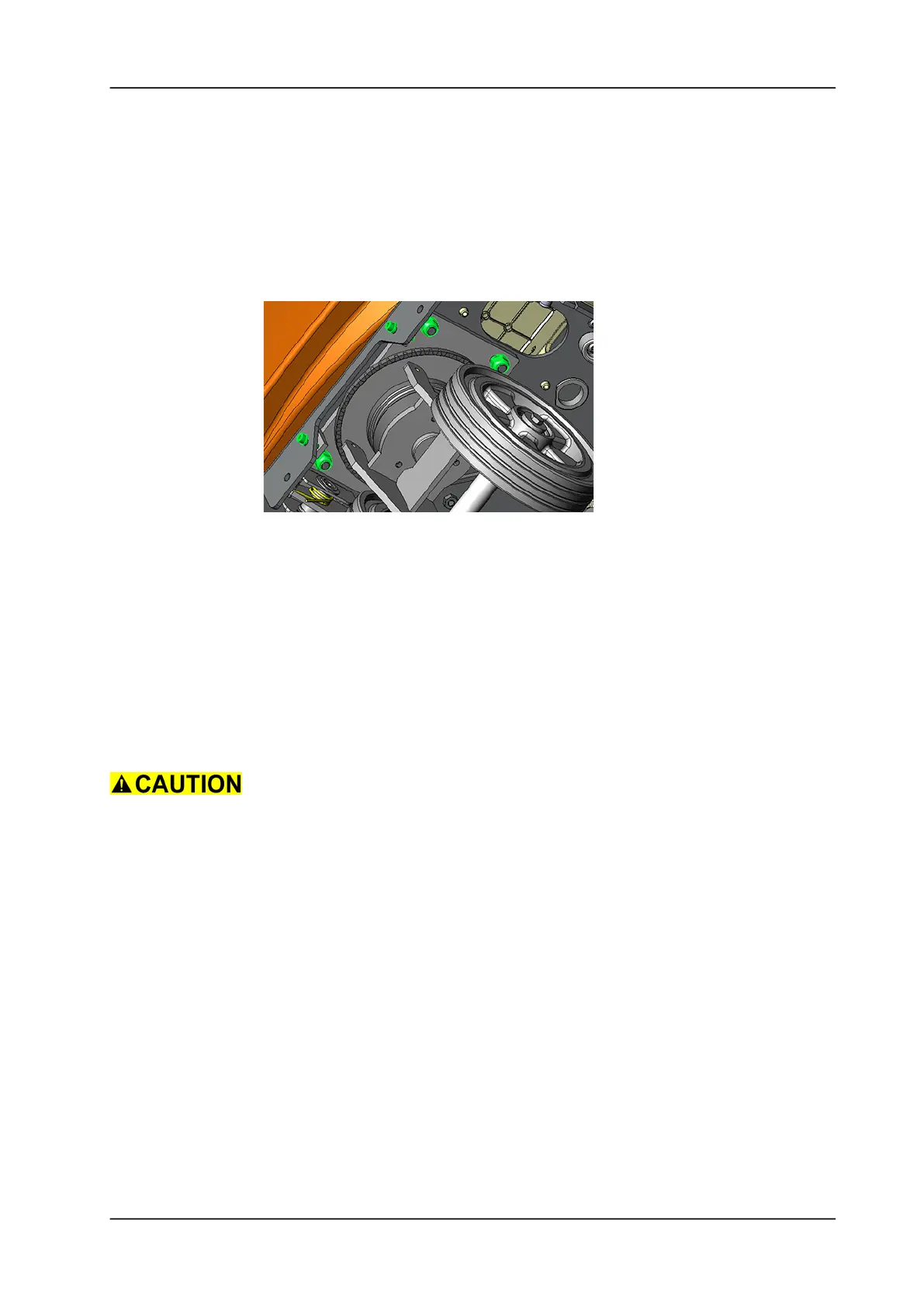

Picture 34: Mounting steering roller chain
• Position the steering roller chain onto the chain wheels.
• Mount the chain joint.
Remarks
Mount the chain joint from the upper side, so that the clip is on the
bottom side.
• Mount the clip of the chain joint.
• Tension the steering roller chain with the 2 tension screws.
Make sure you do not tension the steering roller chain too much.
• Tighten the 4 self-locking nuts of the steering unit.
• Mount the front cover according to chapter REMOVING OF
FRONT COVER.
