GTS Technical Manual
9. April 2021 Edition: V1.00/2021 5-64
Copyright © 2020, Diversey
05.68.23 brush drive - brush belt - 3500µicro_V1.00.fm
5.9 Brush drive
5.9.4 Mounting of brush belt

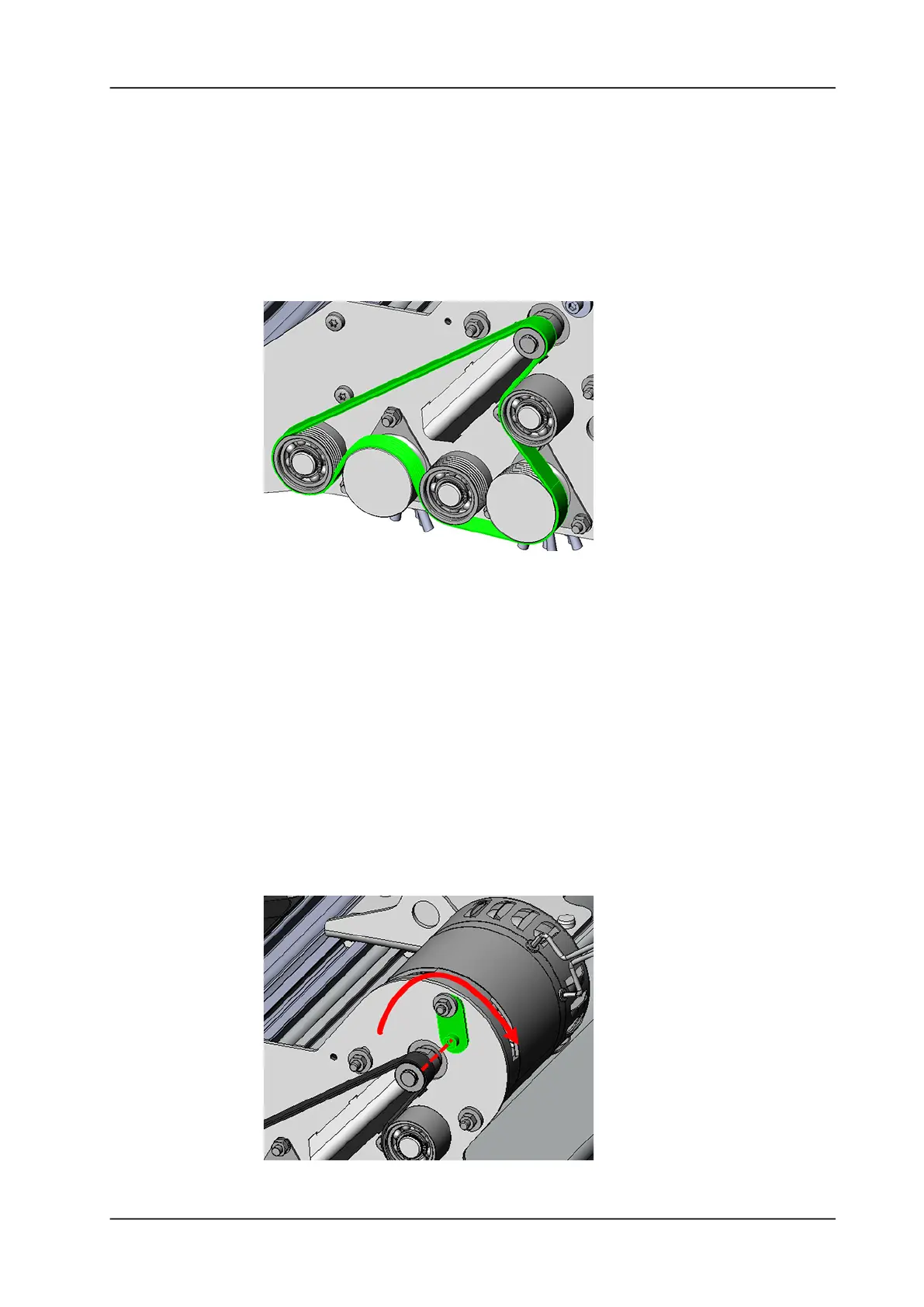

Picture 95: Brush belt unit
• Position the brush belt carefully and tension the belt.
Remarks
To tension the belt, tighten the screw of the tension lever (4134268)
with the appropriate torque.
Use a torque wrench to tighten the brush belt.
Adjustment
Tighten the screws of the tension lever (4134268) with the torque of
4Nm. For details refer to TASKI spares.
• Tighten the 3 fixation nuts of the brush motor.
Picture 96: Brush belt adjustment
