6.6 Drive relay
6.6.3 Removing of drive relay

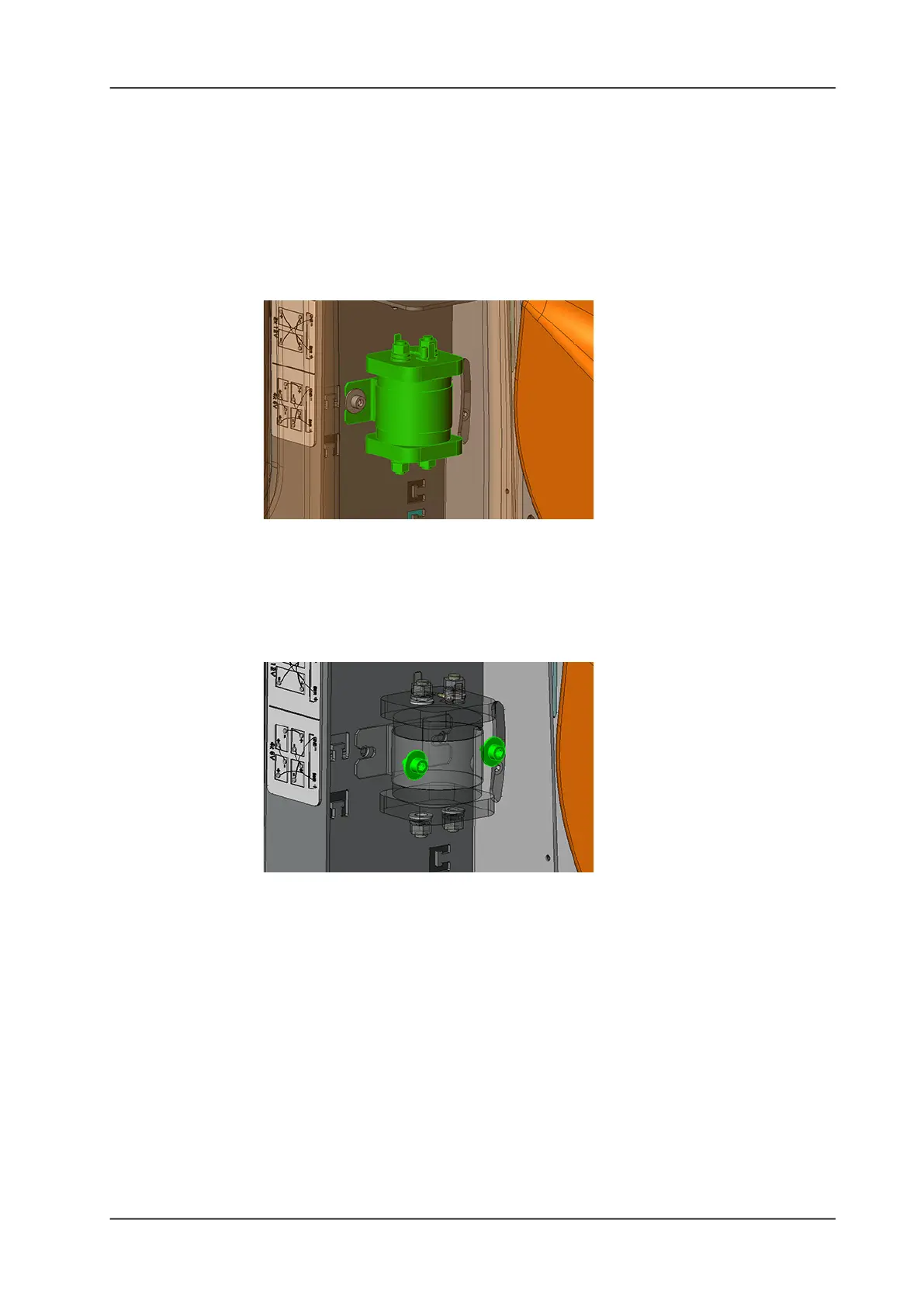

Picture 31: Drive relay
• Remove the seat cover according to chapter REMOVING OF
DRIVER SEAT COVER (refer to “Mechanical” section).
• Disconnect the wires and the plugs of the drive relay (4130884).
• Remove the 2 screws (4006430) and the 2 washers (4019790)
from the electrical support (4131385).
Picture 32: Removing drive relay
• Remove the drive relay.
