5.7 Drive unit
5.7.2 Mounting of drive wheel

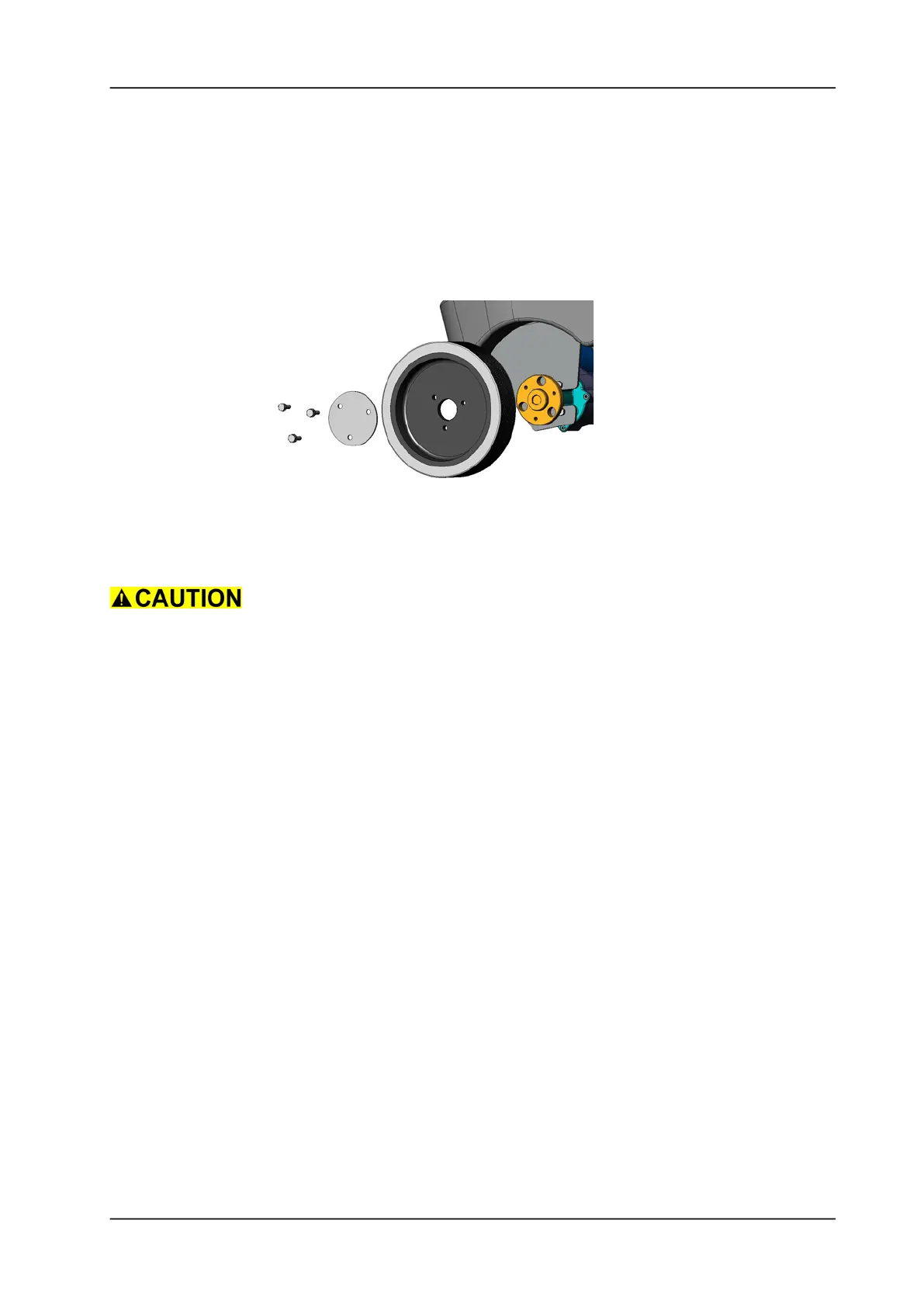

Picture 66: Mounting drive wheel
• Position the drive wheel on the traction unit.
If applicable, make sure you position the drive wheel on the traction
unit with the fitting side.
• Position the disc and mount the 3 screws and spring lock
washers with it.
• Lower the machine.
• Tighten the screws with the appropriate torque.
Adjustment
Tighten the screws (4064840) with the torque 22Nm. For details refer
to TASKI spares.
