GTS Technical Manual
9. April 2021 Edition: V1.00/2021 6-33
Copyright © 2020, Diversey
06.26.17 drive relay - 3500µicro_V1.00.fm
6.6 Drive relay
6.6.4 Mounting of drive relay

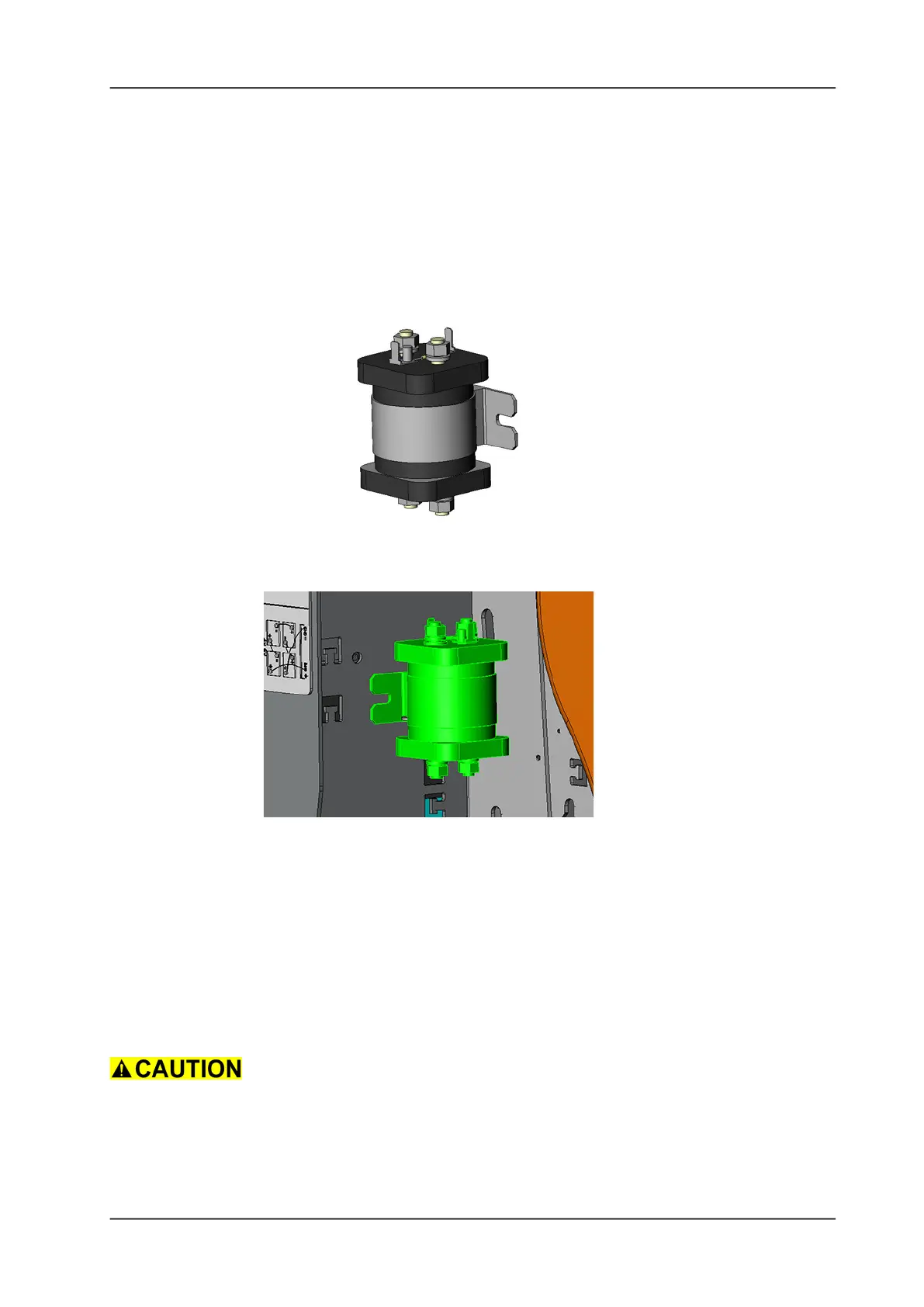

Picture 33: Drive relay unit
• Position the drive relay.
Picture 34: Mounting drive relay
• Mount the 2 screws with the 2 washers.
• Connect the wires and the plugs.
• Complete assembling according to chapter MOUNTING OF
DRIVER SEAT COVER (refer to “Mechanical” section).
Remarks
Ensure that you mount the existing parts (e.g. diode) back onto the
drive relay.
Make sure that you check the function of the main relay during each
visit as this is a security feature.
Make sure that you connect the relay correctly.
