5.4 Guidance
5.4.1 Removing of front hood

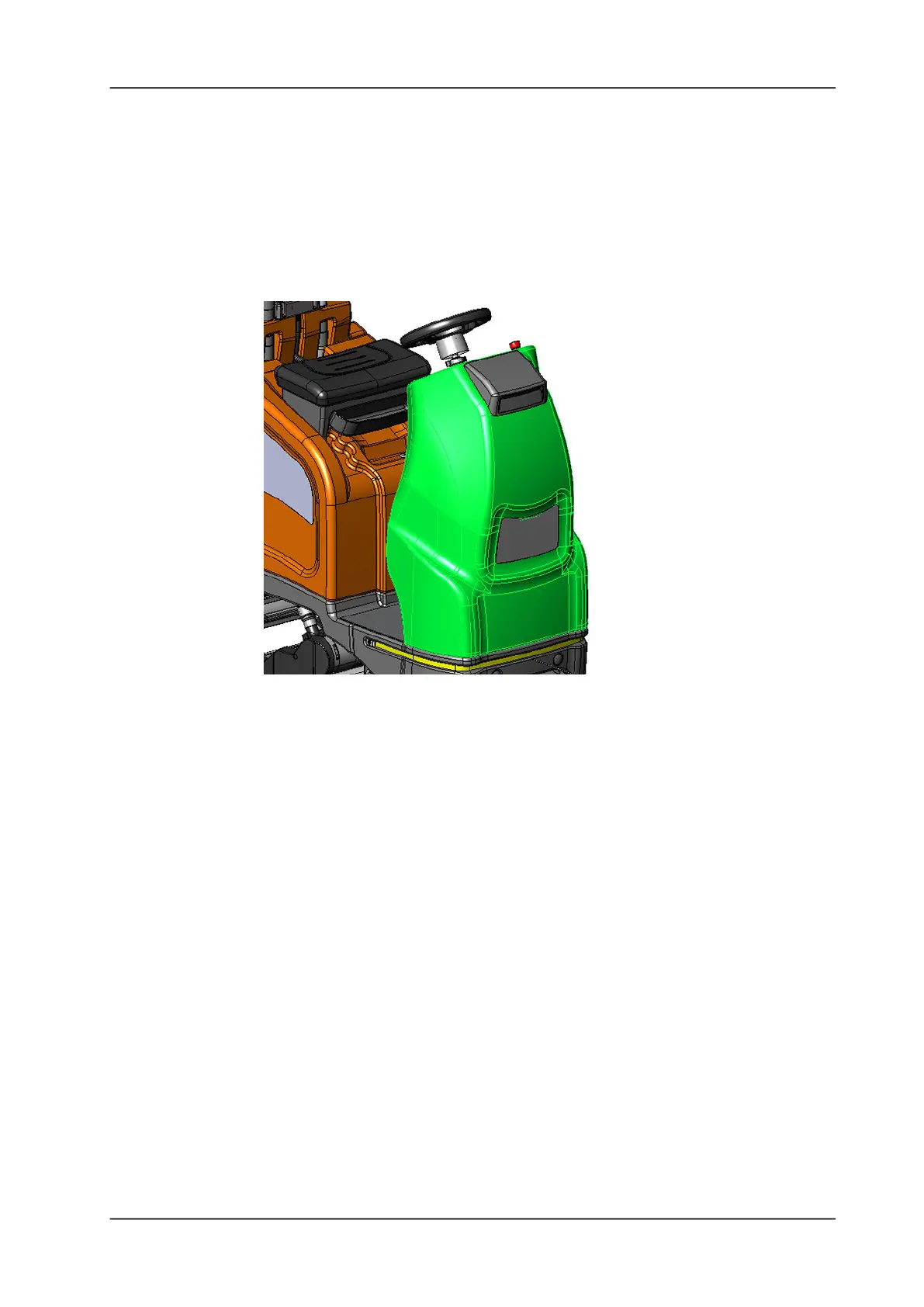

Picture 28: Front hood
• Remove the dashboard according to chapter REMOVING OF
DASHBOARD (refer to “Electrical” section).
Remarks
When using the option “IntelliTrail”, then you need to remove it first.
For this instruction, please refer to the separate TASKI IntelliTrail
mounting instructions in TASKI spares.
• Remove the 6 screws (4109990) for the cover (4131489).
• Remove the cover.
• Remove the 2 screws (4052060) for the fixation of the holder
plate (4131690).
• Remove the 4 screws (4109990) which fixate the holder plate
and the front hood (4131360).
• Remove the holder plate.
