5.6 Tool lowering unit
5.6.6 Mounting of brush motor for offset

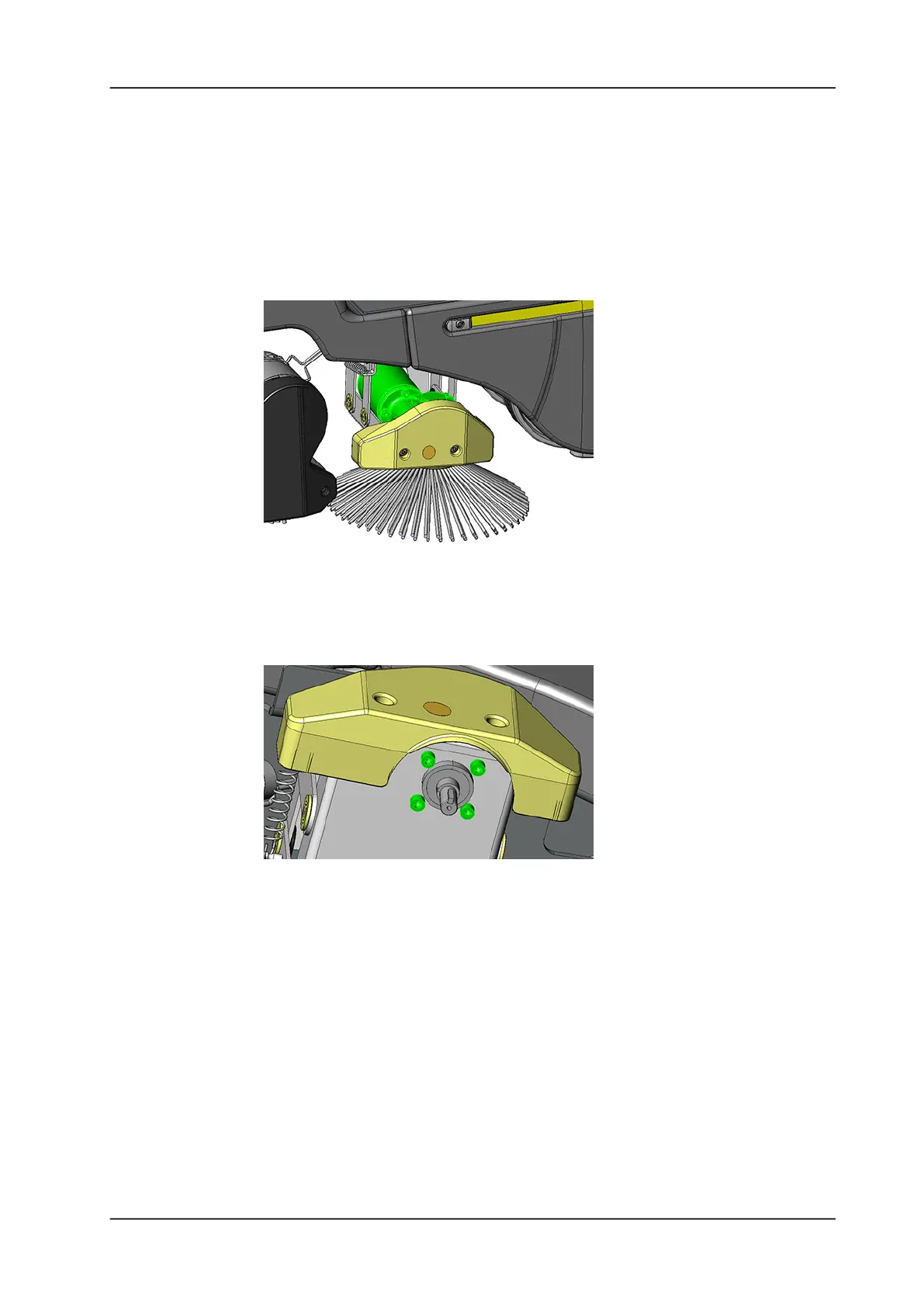

Picture 57: Brush motor for offset
• Place the brush motor offset onto the brush support plate.
• Mount the four screws and washer onto the brush support plate.
• Mount the coupling disc together with the screw and
countersunk washer onto the brush motor axle.
Picture 58: Brush motor fixation
Remarks
Ensure that the feather key is mount the brush motor axle before
assembling coupling disc.
Service
Lubricate the motor axle with ball bearing grease (4039680) before
mounting the coupling disc.
• Connect the brush motor wires to the connection block.
• Mount the tool.
