5.2 Tank
5.2.4 Mounting of cleaning mode micro switch

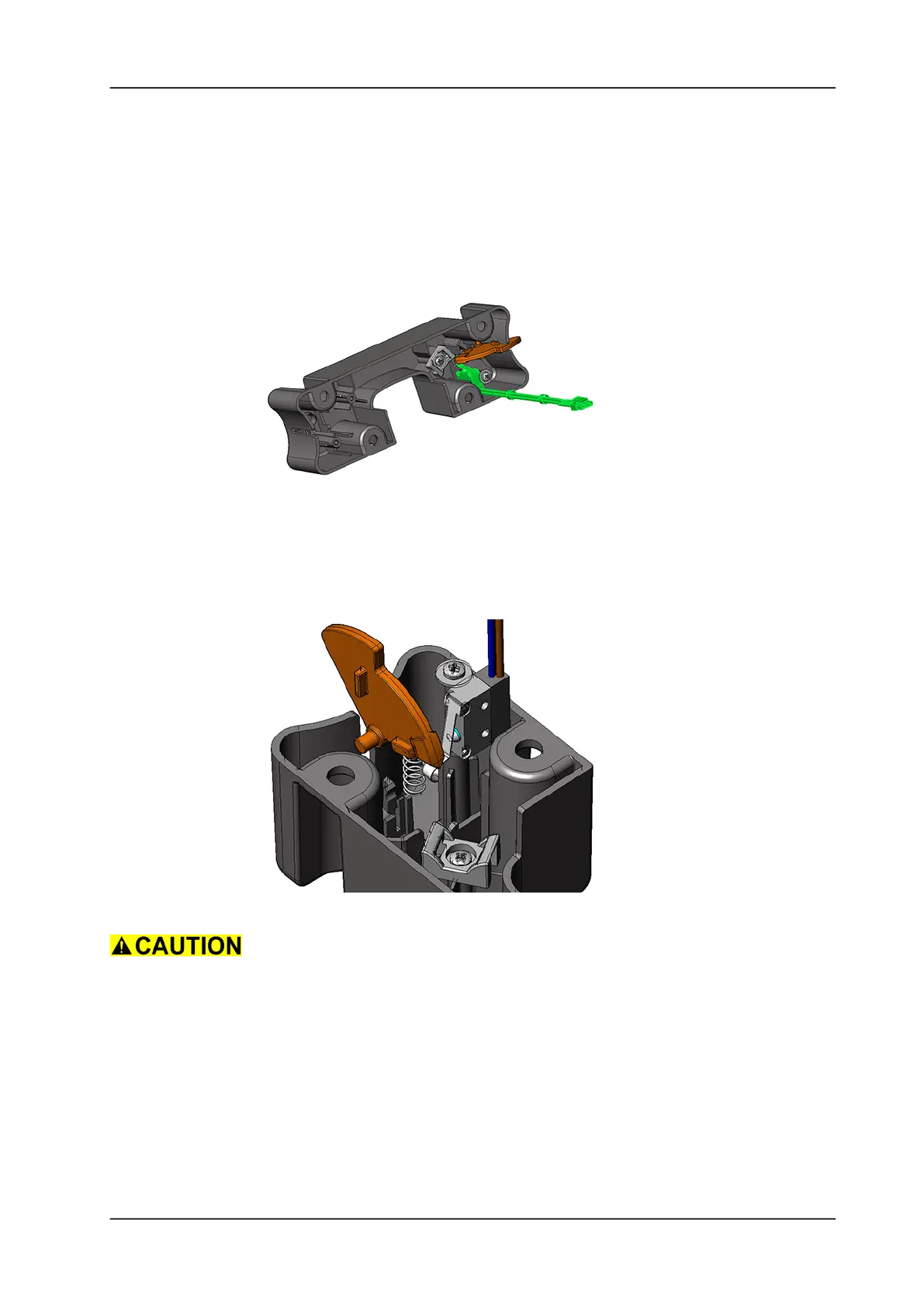

Picture 10: Mounting micro switch
• Position micro switch into the cover.
• Mount the washer and screw.
• Connect the plug from the micro switch.
• Place the micro switch cover onto the tank (4134108) and mount
the screws.
Picture 11: Micro switch details
After working on the micro switch, check the functionality of the
correct switching of the two cleaning modes.
