GTS Technical Manual
9. April 2021 Edition: V1.00/2021 5-51
Copyright © 2020, Diversey
05.32.23 drive unit - drive unit - 3500µicro_V1.00.fm
5.7 Drive unit
5.7.7 Removing of drive unit

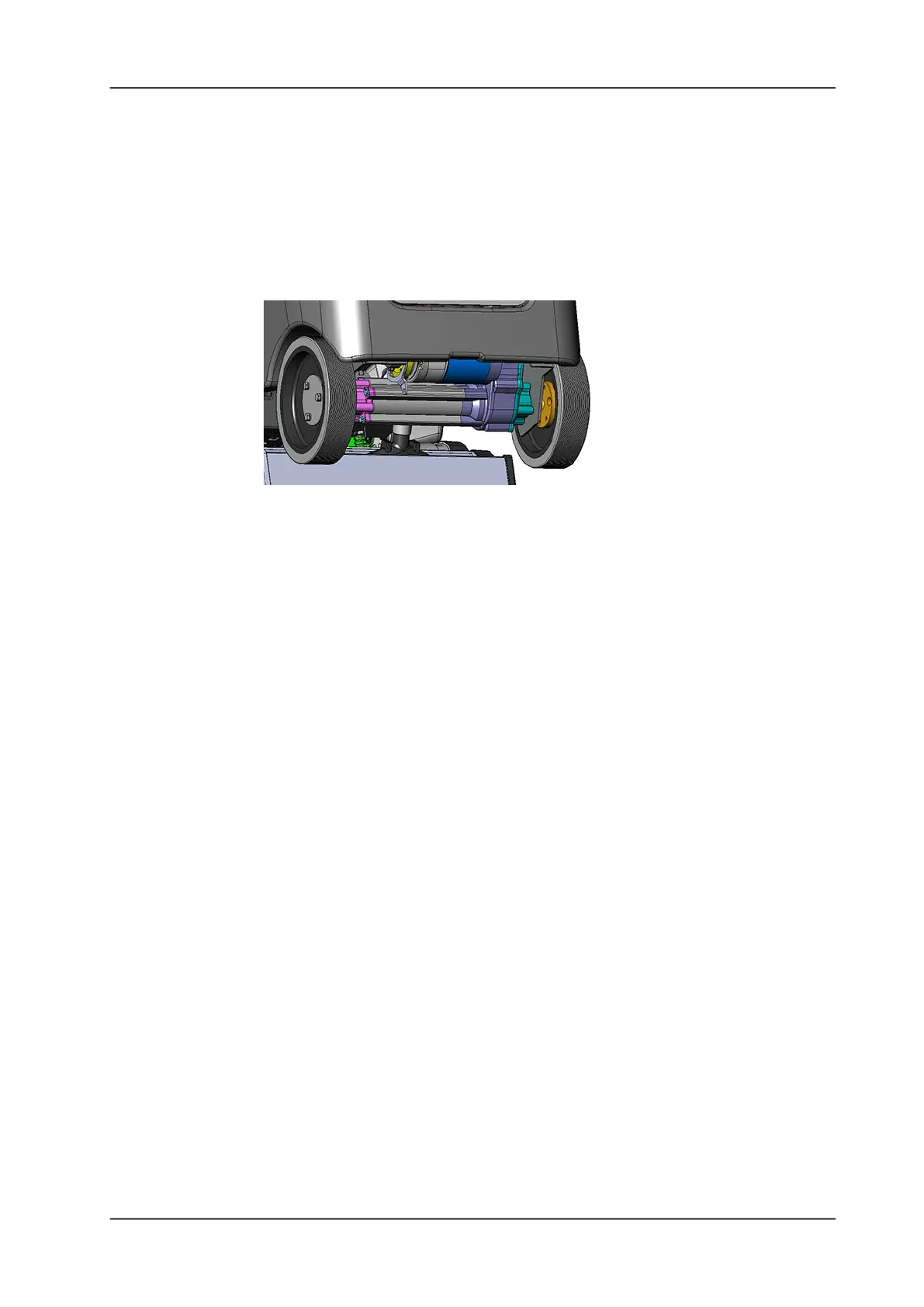

Picture 75: Drive unit
Position a piece of wood in front and behind the front steering
wheel to ensure that the machine does not move.
Remarks
For easier access remove the squeegee.
Remove the drive wheel LH and RH according to chapter
REMOVING OF DRIVE WHEEL.
Remove the rotary encoder according to chapter REMOVING OF
ENCODER.
Remarks
If you only remove the rotary encoder then you do not have to thread
out the cable to the electronics.
Disconnect the wires of the drive unit compl (4131237) from the
connection block (4108420).
Disconnect the connector of the brake.
Remove the 4 hexagon screws (4006060) from the chassis
(4131386) on the LH side.
Remove the 4 hexagon screws (4006060) from the chassis
(4131386) on the RH side.
